Planer line

WEINIG

Condition: ready for operation (used), Year of construction: 2012, operating hours: 926 h, functionality: fully functional, machine/vehicle number: 546324, saw blade diameter: 500 mm, cutting width (max.): 300 mm, overall weight: 1,500 kg, saw blade length: 7,209 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Max. saw blade length: 7,209 mm Max. saw width: 300 mm Max. saw blade diameter: 500 mm Arbor saw blade diameter: 85 mm Infeed table length: 7,850 mm Outfeed table length: 2,400 mm MACHINE DETAILS Voltage: 400 V Current consumption: 22 A Fuse: 25 A Main motor power: 7.5 kW Connected power: 11 kW Dimensions & Weight Dimensions (L x W x H): 11,250 x 900 x 1,800 mm Weight: 1,500 kg Operating hours: 926 h Gedjzzbfbjpfx Adtoug EQUIPMENT CE marking

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, total width: 5,440 mm, total height: 2,000 mm, total length: 1,700 mm, No minimum price – guaranteed sale to the highest bidder! MACHINE DETAILS Gedpfx Adezzbc Tstjug Voltage: 380 V Current draw: 85 A Fuse rating: 100 A Power: 38 kW Dimensions (L x W x H): 1,700 x 5,440 x 2,000 mm Shipping packages: 1 unit EQUIPMENT Documentation CE marking

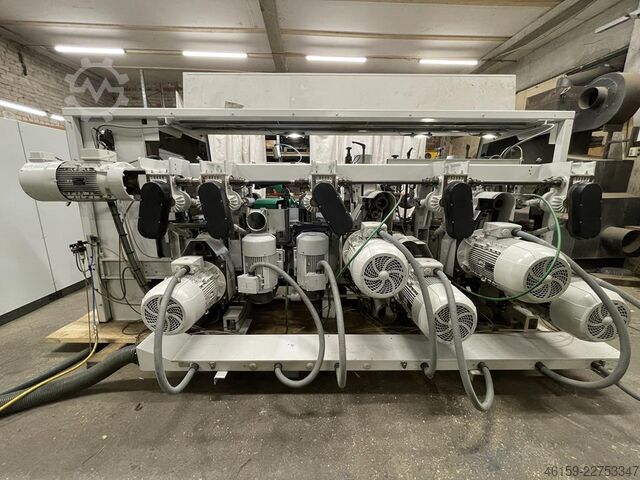

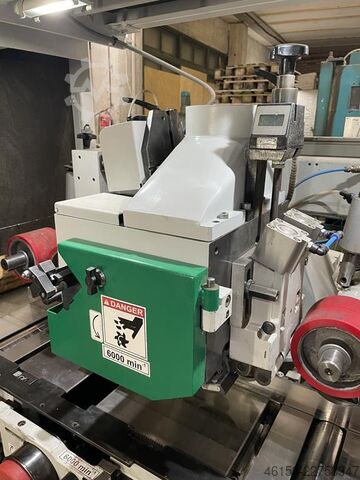

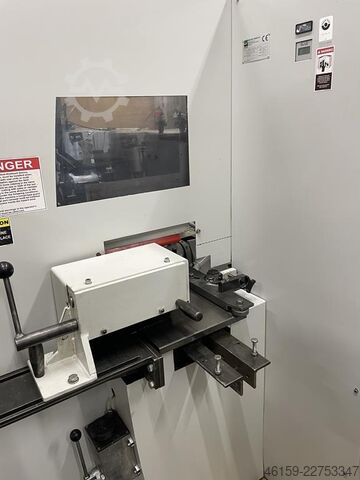

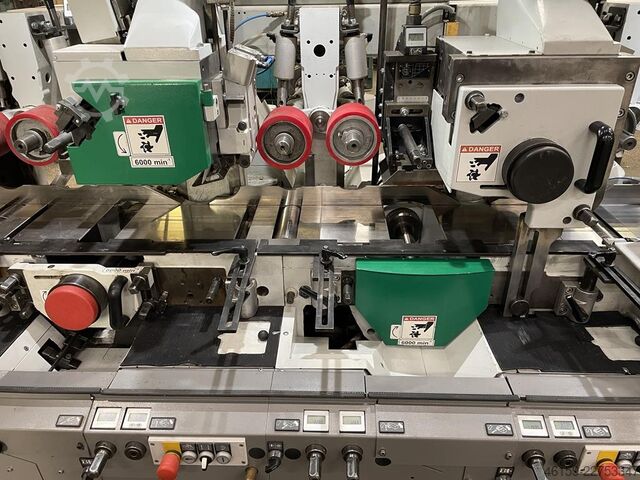

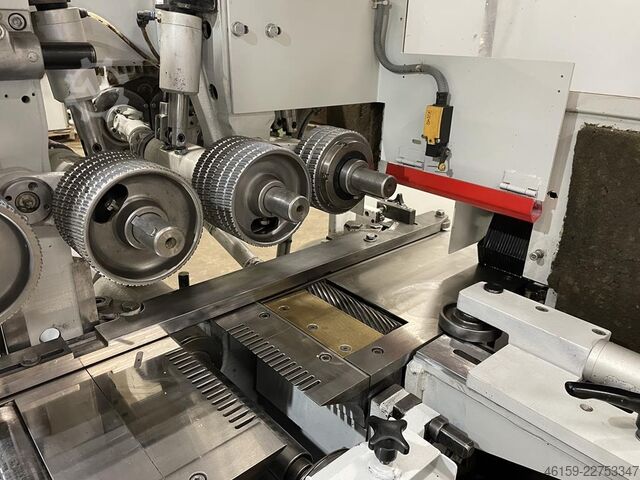

Condition: excellent (used), Year of construction: 2015, Weinig Powermat 2400 moulder with 7 Spindles. (Year 2015) Working height: 10 - 160 mm . Working width: 20 - 230 mm. Gusdpfxjz Apcdo Adtjg 50mm spindles 6,000 RPM (Not Powerlock) Bottom 15 kW + outboard bearing Right 11 kW + Straight jointer Left 11 kW + Straight jointer Top 15 kW + Straight jointer + outboard bearing Bottom 18.5 kW + Profile jointer Top 18.5 kW + Straight + Profile jointer Bottom 18.5 kW Straight jointer + outboard bearing 11kW feed motor, 60m/min. Heavy duty feed works. 10x top feed rollers. First top feed roller with clutch installed for use with mechanisation. 5x bottom feed rollers. Automatic lubrication system. Electric digital display memory system. CNC POSITIONING ON SPINDLES 3, 5 & 8 Possible to supply with Weinig moulder infeed and outfeed

Condition: excellent (used), Year of construction: 2010, WEINIG HYDROMAT 2000 WITH FLOATING VERTICAL SPINDLES OPPOSED FEED MOTOR 22 KW FEEDRATE MAX 100 M/MIN 300MM WIDE MOULDER 1ST SPINDLE BOTTOM 30 KW WITH COUNTER BEARING 2ND SPINDLE TOP 30 KW WITH COUNTER BEARING Gjdjz Apbyspfx Adtjug 3RD SPINDLE LEFT 22 KW OPPOSED 4TH SPINDLE RIGHT 22 KW OPPOSED VERTICAL SPINDLES FLOATING VERTICAL SPINDLES OPPOSED SPINDLES 6,000RPM WORKING WIDTH 300 MM PLANING HEIGHT 160 MM NUMBER OF SPINDLES 4 BOTTOM SPINDLES 1 SPINDLE DIAMETER 50 MM CONTINUOUSLY VARIABLE INVERTER DRIVE FEED FEED MOTOR 22 KW MAIN MOTOR POWER 30 KW SPINDLE(S) WITH COUNTERBEARING SEPERATE MOTOR PER SPINDLE MOTORIC ADJUSTMENT PROGRAMMABLE CONTROLLER INFEED TABLE LENGTH 700 MM TABLE ROLLERS DRIVEN LUBRICATION PUMP AUTOMATIC SHORT INFEED WITH 220MM TOP FEED ROLLERS CONFORMITY MARKING CE MARK TOTAL CONNECTION 126 KW

Condition: ready for operation (used), Year of construction: 2015, Weinig Powermat 700 6x 40mm Spindles. CNC on spindles 3, 4 and 5. Width 20-230mm Height 10-160mm Memory system Automatic lubrication system for bedplates. No 1.  11kW - Bottom 7000rpm No 2. 7.5kW - Right 7000rpm No 3. 7.5kW - Left 7000rpm Gedpfx Asz An S Djdtsug No 4. 15kW - Top 7000rpm No 5 . 11kW - Top 7000rpm No 6 . 11kW - Bottom 7000rpm Electronically variable feed. 40m/min Short infeed table. Marathon coating for machine bed plates. Manuals & hand tools.

Condition: excellent (used), Workpiece dimensions: Data Workpiece length = 260-3000 mm Working width = 50-230 mm Working height = 10-70mm Godpfx Ajz An Skodteug Cross conveyor table specification: Conveyor length = 2200 mm Conveyor width = 1000mm Adjustable overall height = 810 mm Number of flat crossfeed chains= 5 ( 80mm, 280mm, 500mm, 900mm and 2200mm) Feed speed = 18 m/min Feed motor = 0.75 kW (1 hp) Accelerator specification: Feed roller width = +/- 50 mm Driven feed rollers = 4pcs (2 top, 2 bottom) Feed motor, hydraulic = 5.5kW Feed roller diameter = 170mm upper and 100 mm lower Infeed speed infinitely variable = 20-140 m/min Max.cycle rate/min. = 60

Condition: excellent (used), Year of construction: 2004, Multi-blade saw Raimann ProfiRip KR 310 M (2 movable flanges) with package crosscut saw HOLTEC ES 121SHKA and Hurrican extraction system Model: Raimann ProfiRip KR 310 M Year of manufacture: 2004 (refurbished 2022) Multi-rip saw with 2 adjustable saw blades Technical details: Track gauge: 340 mm Total passage width: Maximum 950 mm (instead of 800 mm) Cutting height with/without pressure plate: 115 mm / 130 mm Workpiece length: Minimum 450 mm Maximum saw blade diameter: 380 mm Minimum saw blade diameter: 250 mm Saw blade bore: 80 mm Saw shaft diameter: 65 mm Saw shaft speed: 3,900 rpm Motor: 30 kW Laser guides: 3 units Operating pressure: 6 bar Gusdpfxsz Altfe Adteg Infinitely variable feed speed: 8–48 m/min Feed motor: 1.5 kW Voltage: 400V / 50Hz

Condition: reconditioned (used), Number of spindles 8 St. Working width 230 mm Working height 120 mm Weinig Planing and moulding line ----- Consisting of the following individual machines: Item 1: Weinig Profimat 23 E, four-side planer, stock number: 2803 5 spindles + glazing bead saw Item 2: Weinig Uniplan 23, stock number: 2804 Fine and hydroplaner with 2 horizontal spindles Gjdpfexpn Tuox Adtsug Item 3: Weinig RF 15, stock number: 2805 Longitudinal-cross-longitudinal conveyor with workpiece return to the operator Detailed descriptions of the machines can be found under the mentioned stock numbers. (Technical specifications according to the manufacturer, without guarantee!)

Condition: excellent (used), functionality: fully functional, Weinig Profimat 26S four-sided planer Working width 230mm Working height 130mm Number of spindles 6 Spindle arrangement: Bottom 4kW Right Left 7.5kW Right 5.5kW Top 5.5kW Gjdpfjz Aha Usx Adtoug Bottom 5.5kW Electronic adjustment of workpiece height and width Feed speed adjustable via a variator, 5-24 m/min CE certificate Technical documentation

Condition: excellent (used), Year of construction: 1990, functionality: fully functional, working width 300mm working height 140mm feeding rate 200m/min spindles speed 6000 RPM spindles diameter 50mm spindles set: 1. bottom - 22kW 2. top - 22kW 3. right - 18,5kW 4. left - 18,5kW 5. right - 18,5kW Gjdpfx Adsz Af Rwetoug 6. left - 22kW 7. top - 22kW 8. bottom - 22kW 9. top - 22kW 10. bottom - 22kW 11. bottom - 22kW Possibility to purchase the machine with feeder + EUR 14,900 net.
