Optimizer

Weinig OptiCut S90

Condition: ready for operation (used), Year of construction: 2018, Optimizing Cross-Cut Saw manufactured in 2018. This WEINIG DIMTER Opticut S90 features a saw blade diameter of 500 mm and a maximum cutting height of 120 mm. It accommodates input lengths from 400 to 6,300 mm and widths from 20 to 300 mm. If you are looking to get high-quality cutting capabilities, consider the WEINIG DIMTER Opticut S90 machine we have for sale. Contact us for further details. Ncjdeylmmmepfx Akyer • Saw blade • Diameter: 500 mm • Bore: 30 mm • Adjustable saw blade speed: 40–100% via frequency converter • Workpiece capacity • Input length (min/max): 400–6,300 mm • Width (min/max): 20–300 mm • Thickness (min/max): 10–120 mm • Maximum cutting height: 120 mm • Minimum cross-section: 20 x 10 mm • Maximum cross-section 1: 215 x 120 mm • Maximum cross-section 2: 300 x 40 mm • Permissible timber curvature: max 2 mm/m or 8 mm over entire length • Table inclination: 10° • Motion and accuracy • Positioning speed (reverse stroke): max approx. 180 m/min • Positioning speed (forward stroke): max approx. 60 m/min • Positioning accuracy: +/- 0.1 mm • Motors and power • Pusher motor power: 5.1 kW • Saw motor power: 7.5 kW • Total electrical load: approx. 15 kW • Control and interface • Control unit: OptiCom Pro with 18.5" touch screen • Screen resolution: 1366 x 768 pixels • Protection class (front): IP65 • Interface: USB port and Ethernet network connection • Data format: CSV (ASCII) for import/export • Utilities and environment • Voltage: 400 V / 50 Hz • Operating pressure: 6–8 bar (min.) • Air consumption: approx. 250 NL/min • Extraction connection: diameter 125 mm • Required extraction performance: speed approx. 30 m/s; volume approx. 1,300 m³/h • Noise level (idling): ≤ 85 dBA

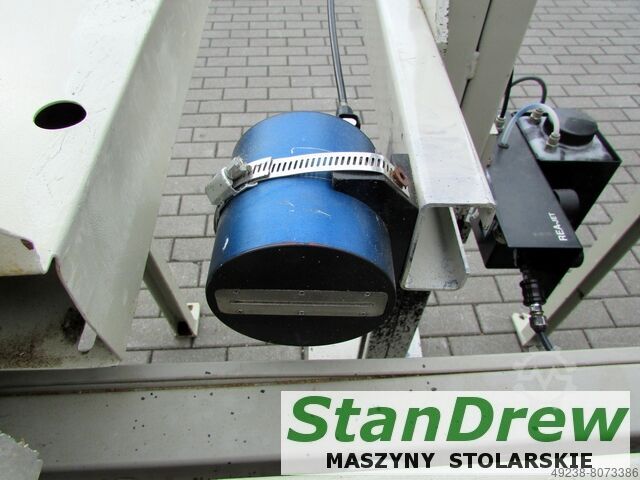

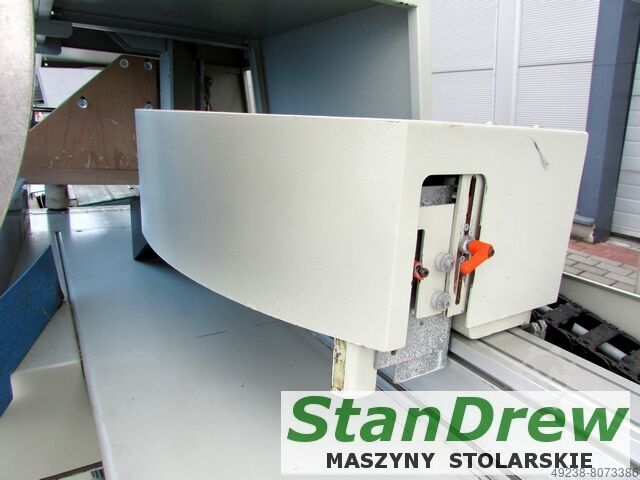

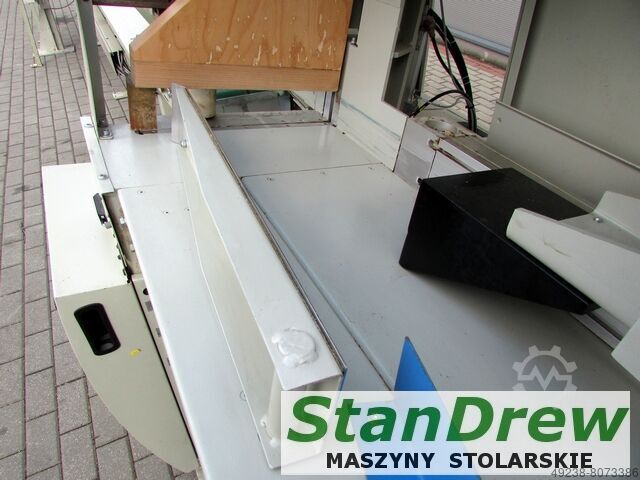

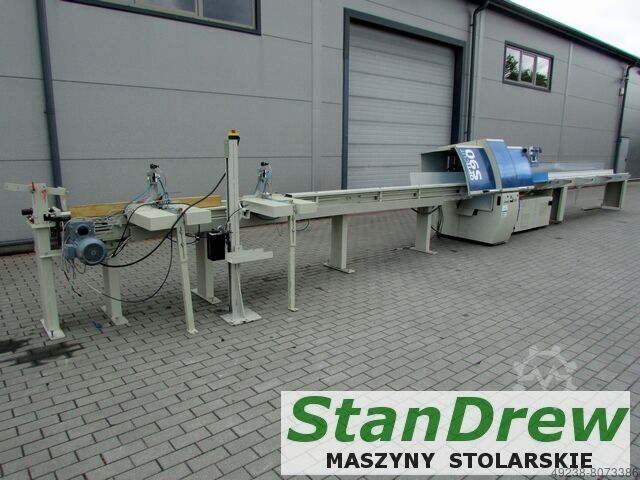

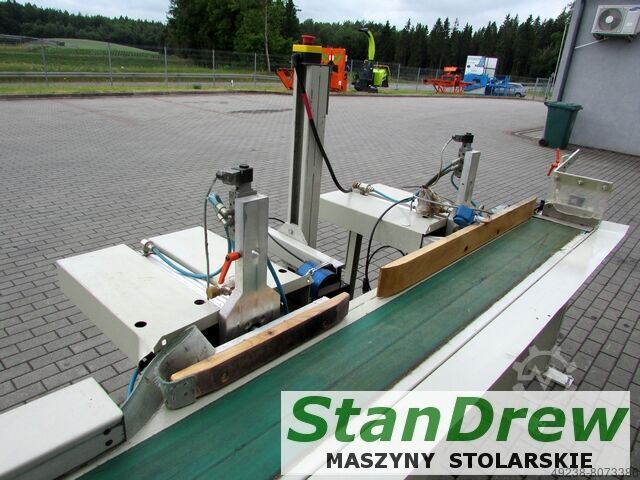

Condition: excellent (used), Year of construction: 2005, Weinig Dimter OptiCut S 90 optimizer with 2 ejectors – after technical review – German production – year of manufacture 2005 Njdpfei Apgmsx Akyjcr TECHNICAL PARAMETERS: max. length of cut material 4500 mm max. width 360mm max. height 160mm automatic length measurement optimization in 4 quality classes total power 13 kW blade motor power 7. 5 kW pneumatic side and top pressure disc diameter max. 500mm OptiCom Assist control receiving conveyor 5600 mm two ejectors total length 13 m component marking printer cutting accuracy +/- 0.5 mm transport dimensions (length / width / height) 600 / 240 / 190 cm weight ~ 1800 kg
