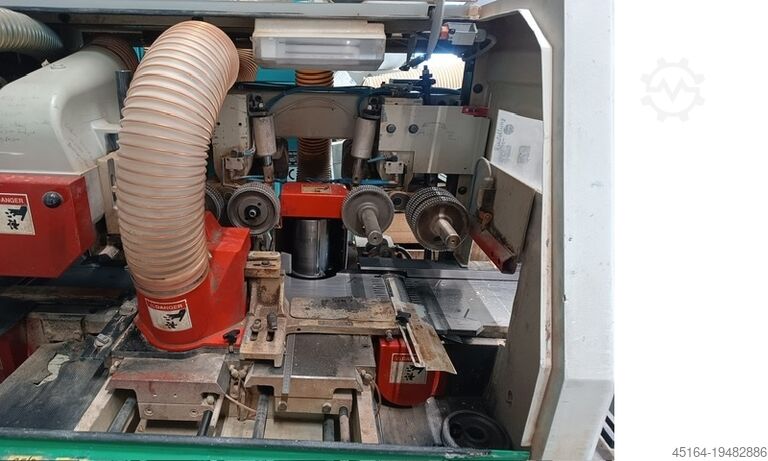

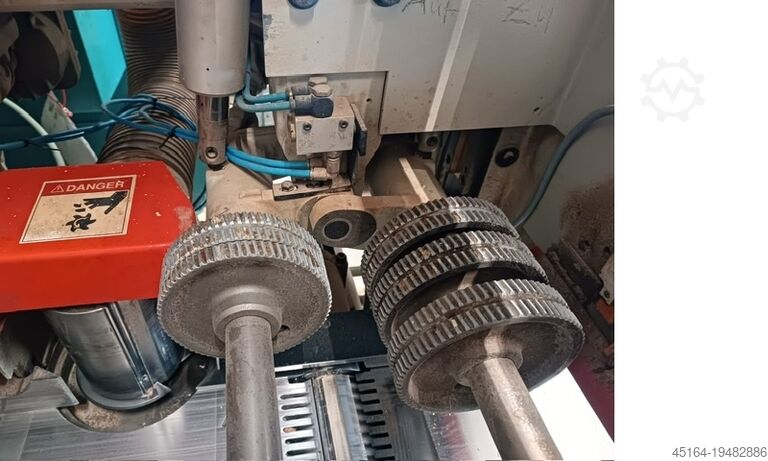

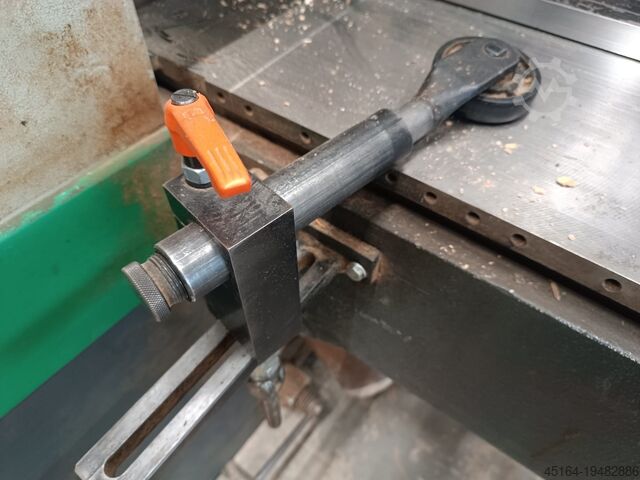

Four-side planer beam planer

Weinig P 23 E

Condition: not inspected (used), Year of construction: 1999, planing width: 230 mm, total height: 120 mm, Four-sided planer / Moulding machine Manufacturer: Weinig Model: Profimat 23 E Year of manufacture: 1999 For four-sided planing and profiling Max. planing width: 230 mm Max. planing height: 120 mm 5 spindles Spindle diameter: 40 mm Spindle arrangement: Bottom, approx. 4 kW Right + Left, approx. 5 kW Top, approx. 4 kW Bottom, approx. 4 kW Connection: 380 V, 50 Hz Bjdpfjygcl Iox Aa Hold

Condition: used, Year of construction: 2000, Number of spindles 6 St. Working width 230 mm Working height 120 mm Length of the planing table 2500 + 500 mm Feed motor 3 kW Feed speed 6-36 m/min. 1 WEINIG Unimat 23 E 4-side Planer and Moulder ----- 6 spindles (2 on the right), powerful motors, EM 11 feed magazine available Working width 20 - 230 mm Working height 8 - 120 mm 1st spindle, bottom 7.5 kW ----- Diameter 40 mm Speed ??6000 rpm Tool travel radius 125 - 180 mm Folding device including tool Hardened table insert in front of 1st lower spindle 2nd spindle, right 11.0 kW ----- Shared motor with left vertical spindle Diameter 40 mm Speed ??6000 rpm Tool travel radius 112-250 mm Max. tool diameter behind stop plane 203 mm Max. groove depth 35 mm Axis adjustment range 80 mm 3rd spindle, left ----- Shared motor with 2nd spindle Diameter 40 mm Speed ??6000 rpm Tool cutting radius 112-200 mm Max. groove depth 35 mm Axis adjustment range 80 mm Pressure shoe in front of left spindle, including lateral roller pressure, spring-loaded 4th spindle, right 7.5 kW ----- Diameter 40 mm Speed ??6000 rpm Tool cutting radius 112-250 mm Max. tool diameter behind stop plane 203 mm Max. groove depth 35 mm Axis adjustment range 80 mm 5th spindle, top 11.0 kW ----- Diameter 40 mm Speed ??6000 rpm Tool cutting radius 112-200 mm Max. throat depth 35 mm Axis adjustment range 45 mm Split pressure shoe in front of the upper spindle, adjustable to the tool travel circle and pivoting away from the tool, spring-loaded. 6. Lower spindle 7.5 kW ----- Diameter 40 mm Speed ??6000 rpm Tool travel circle 112-250 mm Max. throat depth 15 mm Axis adjustment range 45 mm Spindles in general ----- All throat spindles with high concentricity. Lubrication points for the axial spindle movement. Spindle length of vertical spindles 170 mm Feed system ----- Motor with mechanical brake, 3 kW Mechanical feed continuously adjustable 6 - 36 m/min. Feed roller in front of the first lower tool pneumatically controlled up-down, Durofer pointed tooth rollers (Weinig patent) with depth gauge and self-cleaning Adjustment range of the feed rollers relative to the left spindle, axial: 35 mm Extension of the oscillating axis relative to the left spindles to 150 mm Machine electrical system ----- Operating voltage: 380-400-415 volts, 50 Hz. Machine stands, tables, and stops ----- Surface table 2.5 m long (including jointing ruler) Aluminum extension 0.5 m for surface table, including extension of the jointing ruler Manual Waxilit pump for resin removal from the table One driven rubber roller (spring-mounted in the outfeed table) Pressure elements and Guides ----- Pneumatic pressure rollers from above Pneumatic pressure rollers pivot away from above, opposite the right-hand spindles for easy tool changes Machine Operation ----- Pressure shoe in front of the upper spindle with mechanical digital display. Discharge after the upper spindle with mechanical digital display. ATS/E system, automatic 2-axis positioning for spindles 3 and 4 Min. working height 12 mm Electric height adjustment of the upper spindles and the feed Bsdpfswqr Rvox Aa Hjld Central p...

Condition: used, Year of construction: 2000, machine/vehicle number: 90816, Technical specifications: 1st shaft: lower horizontal, 2nd shaft: right spindle moulder, 3rd shaft: left spindle moulder, 4th shaft: upper horizontal, 5th shaft: lower horizontal, 6th shaft: universal, ATS control, any width, maximum width: 230, maximum height: 120. Bljdpjxp U R Hefx Aa Hod

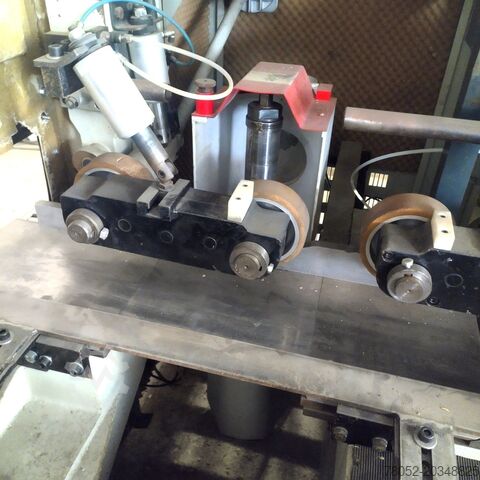

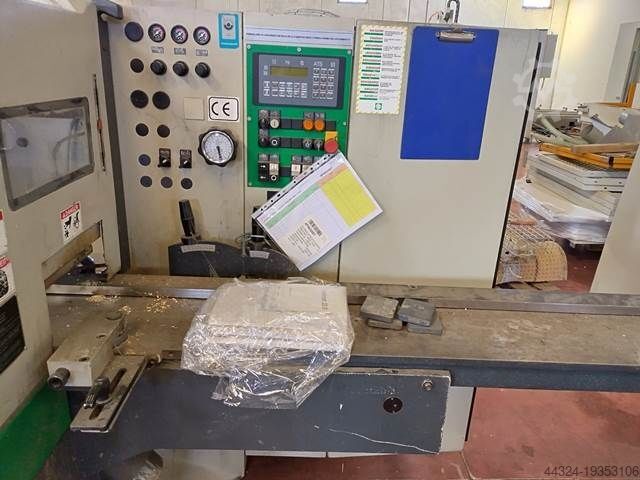

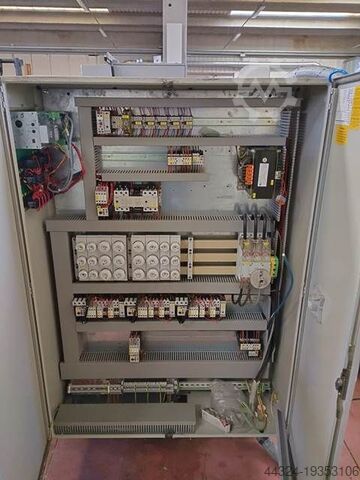

Condition: used, Year of construction: 1997, SECOND-HAND 5 SPINDLES MOULDER WEINIG MOD. PROFIMAT P23E - CE RULES Blodpfxowrxuws Aa Hjd - Horizontal bottom 5.5Kw - Vertical right/left 7.5Kw - Horizontal top 7.5Kw - Horizontal bottom 4Kw - Year 1997 (CE)

Condition: used, Year of construction: 2006, total width: 4,210 mm, total height: 1,830 mm, Dimensions (LxBxH): 190 x 421 x 183 cm Price: On request - Year: 2006 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 107707 - Number of spindles [pcs.]: 5 - └ Spindle 1: - - Motor power [kW]: 5.5 - └ Spindle 2: - - Motor power [kW]: 7.5 - └ Spindle 3: - - Motor power [kW]: 7.5 - └ Spindle 4: - - Motor power [kW]: 7.5 - └ Spindle 5: - - Motor power [kW]: 7.5 - Feed table length [mm]: 1800 - Feed motor [kW]: 3 - Conveyor drive: Cardan drive - Voltage [V]: 400 - Current consumption [A]: 78 Bodpfewng Rfjx Aa Held - Fuse [A]: 80 - Power [kW]: 36.0 - Transport dimensions: 1900mm x 4210mm x 1830mm (l x w x h) Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Year of construction: 1999, Four-sided planer Little Unimat 23 E Year of construction 1999 Serial number 88103 Feed speed 5/24 m/min Workpiece width min/max 20/230mm Workpiece height min/max 8/160mm Spindle diameter 40mm Input table length 1950mm Groove bed 1st spindle bottom: 5.5kW 2nd & 3rd spindle right & left: 11kW 4th spindle above: 15kW 5. Spindle top: 11kW 6. Spindle bottom: 5.5kW Bsdpfxownh Sqs Aa Hsld Total power 54kW Total 117Amp. Fuse 125Amp. Transport dimensions: 4200x2000x2100 (LxWxH) weight +/- 4500kg - Year: 1999 - Documentation available: No - CE certificate present: No - Serial number: 88103 - Number of spindles [pcs.]: 5 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Width: 1,550 mm Height: 1,100 mm Length: 1,150 mm Protective cover / lid / flap for a planer machine Weinig type Unimat 23 SP or similar. Bedpjwuub Sjfx Aa Hjld
