Planer and moulder

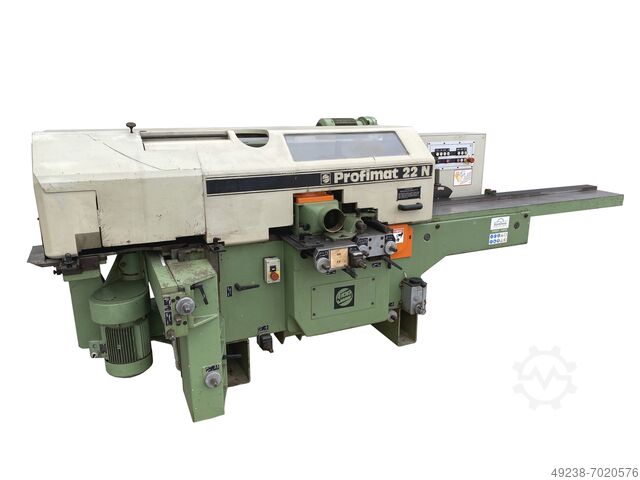

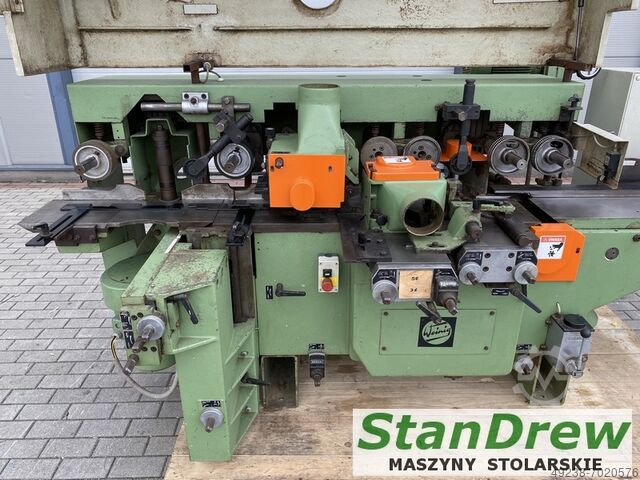

WEINIG Profimat 22 N

Condition: excellent (used), Year of construction: 1993, Catalog number 7706 TECHNICAL DATA - Maximum workpiece width: 220 mm - Maximum workpiece height: 120 mm – 5 spindles: 1) Bottom horizontal: 220 mm, 4 kW 2) Right vertical: 120 mm 3) Left vertical: 120 mm; both 2 and 3 are 7.5 kW 4) Top horizontal: 220 mm, 5.5 kW 5) Bottom horizontal: 220 mm, 4 kW - All spindles adjustable up/down, right/left - Spindle diameter: 40 mm - Pneumatic feed rollers - 4 powered, toothed feed rollers from above including 1 double roller - Top driven outfeed roller, smooth rubber - Bottom driven outfeed roller, rubber - Feed on drive shafts (Cardan shafts) - Stepless feed speed adjustment: 6–36 m/min - Feed motor: 2.2 kW - Lifting motor: 0.25 kW - With brake - Electric thickness adjustment - Central table lubrication - Infeed table length: 1970 mm - Extraction port diameter: 4x120 mm, 140 mm - Dimensions (L x W x H): 3450 x 1600 x 1450 mm - Weight: 1112 kg Net price: 44,900 PLN Fodpfow Edhisx Aa Nopp Net price: 10,690 EUR (based on the exchange rate of 4.2 EUR) (Prices may vary depending on market fluctuations)

Condition: used, Year of construction: 1986, Dimensions (LxW): 175 x 603 cm Four-sided planer Weinig Profimat 22N Serial number: 226 - 742 400v, 40Amp. Max working width 220mm Max working height 120mm Input table length 1950mm Throughput speed 4-20 m/min Spindle diameter 40mm Speed spindles 6000 U/min 1st spindle, bottom: kW Fpsdpfx Aajwnhh Se Njp 2nd & 3rd spindle, left & right: kW 4th spindle, top: kW Dimensions; 3400x1500x1400mm, Own weight 1600 kg - Year: 1986 - Documentation available: No - Serial number: 226 - 742 - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: excellent (used), Working width: 220 mm Working height: 120 mm Number of spindles: 5 Spindle arrangement: bottom / right / left / top / bottom Motors: 7.5 KW, 11 KW, 11 KW, 11 KW, 7.5 KW Table lubrication Feed drive: 2.2 KW Electrically adjustable pressure beam Electrically adjustable left spindle Feed speed: 6/22 m/min Year of production: 1993 Machine dimensions: Fsdpfjv E H Dnsx Aa Nopp - Length: 4400 mm - Width: 1700 mm - Height: 1250 mm

Condition: used, Number of spindles 5 St. Working width 220 mm Working height 120 mm Fpsdpfjv Irizox Aa Njp Length of the planing table 2500 mm Feed motor 6 kW Feed speed 6-22 m/min. total power requirement 25 kw Dimensions (L/W/H) 3500 x 1500 x 1600 mm weight of the machine ca. 2000 kg 1 WEINIG four-side planer Type PROFIMAT 22 N with 5 spindles ----- Working width 220 mm, working height 120 mm Still in use, can be viewed Spindle arrangement: 1st spindle bottom 4.0 kW, 2nd spindle right and 3rd spindle left 7.5 kW, 4th spindle top 5.5 kW, 5th spindle bottom 4.0 kW Spindle diameter 40 mm, Feed 3 kW, continuously adjustable from 6 - 22 m/min Special equipment: Cardan drive Profiling package Includes 5 used planer heads. (Technical specifications according to the manufacturer, without guarantee!)

Condition: used, Weinig Profimat 22 with 4 shafts. Movable left shaft with measurement sensor, for automatic movement based on the width of the pieces inserted into the process. Fsdpfjryb D Sjx Aa Nepp Dimensions and weight: Cm. 330*145*H160. Weight 1400 kg. (on pallet)

Condition: excellent (used), Four-side planer Weinig Profimat 22N Working width: 220 mm Working height: 120 mm Number of spindles: 4 Spindle arrangement: Bottom 4 kW Right Left 5.5 kW Top 4 kW Feed speed adjustable with variator: 4–20 m/min Fjdpow E Hcvofx Aa Njpp Total power: 16 kW

Condition: used, Year of construction: 1993, Catalogue number: 7705 TECHNICAL DATA - Max working width: 220mm - Max working height: 160mm – 4 spindles: 1) Bottom horizontal: 220mm, 5.5kW 2) Right vertical: 160mm 3) Left vertical: 160mm (2nd & 3rd spindle) 11kW 4) Top horizontal: 220mm with electric adjustment up/down, 7.5kW - All spindles adjustable up/down, right/left - Spindle diameter: 40mm - 4 top metallic, toothed feed rollers Fpodpfx Aaow Edgfj Njp - 1 top double rubber outfeed roller - 1 bottom rubber outfeed roller - Feed via Kardana shafts - Stepless feed speed adjustment - Feed motor: 2.2kW - Lifting motor: 0.55kW - Electric planing thickness adjustment - Infeed table length: 1970mm - Central lubrication - Extraction nozzle diameter: 3x120mm, 140mm - Enclosed cabin - Dimensions (L/W/H): 3500x1600x1500mm - Weight: 1620kg Net price: 33,900 PLN Net price: 8,070 EUR (based on 4.2 EUR exchange rate) (Prices may change with exchange rate fluctuations)

Condition: used, Year of construction: 1990, Empty weight: 1.850 kg Dimensions (LxBxH): 350 x 140 x 180 cm - Year: 1990 - Documentation available: No - Serial number: 226-4268 - Number of spindles [pcs.]: 2 - └ Spindle 1: - - Motor power [kW]: 4 - - Max. planing block diameter [mm]: 120 - └ Spindle 2: - - Motor power [kW]: 5.5 - - Max. planing block diameter [mm]: 120 Fsdpowniqujfx Aa Nopp - └ Spindle 4: - - Motor power [kW]: 5.5 - Feed table length [mm]: 1770 - Feed roller diameter [mm]: 140 - Feed motor [kW]: 2.2 - Diameter extraction nozzle [mm]: 140 - Transport dimensions: 3500mm x 1400mm x 1800mm (l x w x h) - Transport weight [kg]: 1850kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: good (used), WEINIG PROFIMAT 22N four-side planer - DTR - German production - adjustable spindles TECHNICAL PARAMETERS: planing width 220 mm Fedpfx Ajh Akbaoa Nopp planing height 120 mm spindle diameter 40 mm 1) 4 kW lower head 2) right head 3) 5.5 kW left head 4) 4 kW upper head 5) universal head 360 ° 4 kW 2.2 kW feed motor feed speed 5 - 20 m / min four upper drawing steel rollers two upper pulling rubber rollers one pull roller in the table top feed on cardan shafts electric height adjustment pre-table length 1970 mm central lubrication pneumatic clamps dimensions of the machine (length / width / height) 380/200/170 cm weight ~ 2000 kg

Condition: like new (used), Year of construction: 1991, functionality: fully functional, Weinig PROFIMAT 22N four-sided planer - overhauled - very good condition - DTR TECHNICAL PARAMETERS: planing width 220 mm planing height 120 mm diameter of spindles 40 mm bottom head 4 kW right head left head 11 kW top head 5.5 kW bottom head 4 kW feed motor 2.2 kW feed rate 6-22 m/min four steel top draw rollers Fjdsthfh Eepfx Aa Nspp one rubber top pulling roller feed on cardan shafts pneumatic pressure electrical height adjustment length of the worktop 2485 mm overall dimensions of the machine (length / width / height) 400 / 180 / 170 cm weight ~ 1800 kg
