4 side moulder Weinig Profimat 23

Weinig Profimat 23

Condition: used, Weinig 5-spindle machine Psdey Hh Uispfx Ag Depr

Condition: excellent (used), Year of construction: 1995, Weinig Profimat 23E four side planer - German production - year of production 1995 - right and left spindles with a face milling cutter ensuring parallelism and a right angle of 900 - element width measurement - electronic width adjustment TECHNICAL PARAMETERS: planing width 230 mm planing height 120 mm Pedpfx Aoibq Niog Depr electronic planing width control 1 lower spindle 4 kW 2 right spindle 4 kW 3 left spindle 4.2 kW (face milling) 4 spindle right 4.2 kW (face milling) 5 upper spindle 7.5 kW element width measurement electric height adjustment of the feed rollers electric height adjustment of the upper spindle spindle diameter 40 mm six top steel rollers yen top roller, rubber one roll in the table top pulling pneumatic pressure feed on cardan shafts pre-table length 2470 mm diameter of nozzles 140 mm Machine dimensions 456x240x220 weight 4000 kg

Condition: excellent (used), Weinig Profimat 23 four-sided planer Working width 230mm Working height 120mm Number of spindles 5 Spindle arrangement: Bottom 4kw Right Left 11kw Top 11kw Bottom 11kw Pneumatic material clamps Adjustable feed speed 5-22m/min Entry table length 2470mm Feed motor with a power of 4kw CE certificate Diameter of exhausts 5x140mm Ppjdpfsvyr Hkex Ag Dsr Machine dimensions 400x150x165cmH Weight 2300kg

Condition: excellent (used), Weinig Profimat 23 four-sided planer Working width 230mm Working height 120mm Ppjdpfjv Ealrox Ag Dor Number of spindles 6 Bottom 4kw Right 7.5kw Left Top 7.5kw Bottom 4kw Universal 5.5kw Spindle diameter 40mm Working speed 24m/min Pneumatic pressure of the pulling rollers Electric adjustment of the pressure wheels Drive on cardan shafts CE certificate

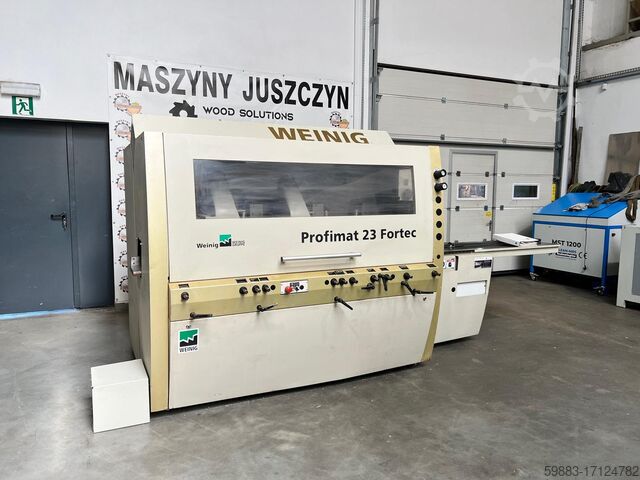

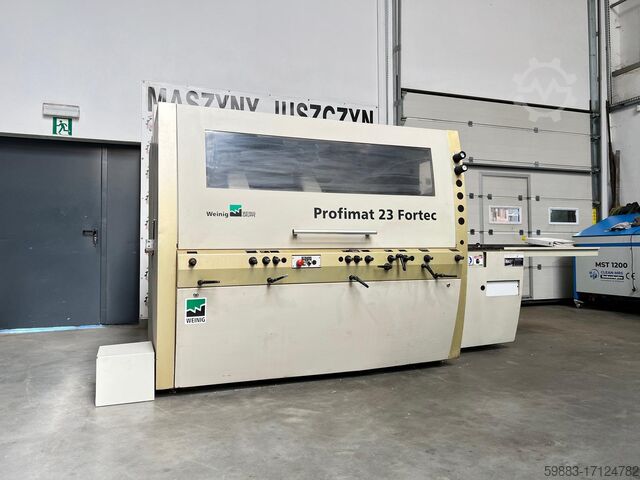

Condition: excellent (used), Weinig Profimat 23 Fortec four-sided planer Working width 230mm Working height 140mm Number of spindles 6 Psdjumxqrspfx Ag Dspr Arrangement of spindles Bottom 7.5kw Right Left 11kw Top 7.5kw Top 5.5kw Bottom 5.5kw Pneumatic pressures Feed speed adjustable on variator Drive on cardan shafts CE certificate

Condition: good (used), Code: 0339 Brand: WEINIG Model: PROFIMAT 23/E - CE Standard Automatic 5-spindle moulding machine for the production of frames, furniture parts, windows, doors, moldings, broom handles, wooden toys, and various - CE Standard Features: Heavy-duty base made of solid cast iron Chainless cardan feed: precise, robust, and durable Special feed roller teeth that reduce the depth of entry into the wood Compact feed system Pneumatic pressure on the feed rollers DIGISET WEINIG for left and upper spindles: tool adjustment is performed directly via dual digital displays Technical data: Min/max working width 20/230 mm Max working height mm 120 Feed speed variator 5–24 mt/min Shaft diameter mm 40 Shaft speed rpm 6000 Feed roller diameter 140 mm Pre-planing table length 2000 mm Soundproofing and full protective coating Motorized vertical feed adjustment Psdpfjyvut Dox Ag Dopr Side roller pressure opposite the first right shaft Motorized upper shaft adjustment Automatic table lubrication Composition: 1° Spindle Lower Planer - Min/max diameter 125–145 mm - Motor 5,5 Hp 2° Spindle Right Vertical Spindle moulder - Min/max diameter 100-200/180 mm - Axial adjustment 3° Spindle Left Vertical Spindle moulder - Min/max diameter 100-200/180 mm - Axial adjustment - Motor power for 2 vertical spindles 7,5 Hp 4° Spindle Upper Planer - Min/max diameter 100/200 mm - Motor 5,5 Hp - Axial Adjustment 5° Spindle Lower Planer - Min/max diameter 100/200 mm - Motor 5,5 Hp - Axial Adjustment N° 5 planing heads included Suction port diameter (N° 5) 140 mm Compressed air 6-8 bar Overall dimensions mm 3400 x 1600 x 1600 h Weight kg 3000

Condition: excellent (used), CATALOG NUMBER 7909 TECHNICAL DATA - Max. workpiece width: 230 mm - Max. workpiece height: 130 mm - 6 spindles: 1) Bottom horizontal, 230 mm, 4 kW 2) Right vertical, 130 mm 3) Left vertical, 130 mm (spindles 2 & 3), 7.5 kW 4) Top horizontal, 230 mm, pneumatically adjustable front/rear, 5.5 kW, electrically adjustable up/down 5) Bottom horizontal, 230 mm, 4 kW 6) Trimming saw, pneumatically adjustable up/down, right/left, 2.2 kW - Saw blade diameter: 160 x 40 mm - All spindles adjustable up/down, right/left - All spindles equipped with electric brake - Spindle diameter: 40 mm - From above: 4 infeed traction rollers, gear-toothed including 2 double rollers - From above: 3 outfeed traction rollers, rubber, smooth, including 1 double roller - From below: rubber traction roller, double - Feed by Cardan shaft rollers - Rollers pneumatically pressed - Infinitely variable feed speed up to 25 m/min - Feed motor: 2.2 kW - Working pressure: 6-10 bar - Electric thickness adjustment - Central table lubrication - Infeed table length: 1980 mm - Extraction port diameter: 5 x 140 mm, 1 x 80 mm - Dimensions (L x W x H): 4000 x 1800 x 1700 mm - Weight approx. 3,500 kg ADVANTAGES Ppjdpfx Ageynktco Djr – German-made, WEINIG brand – 5-head configuration – Operator’s manual (DTR documentation) – 6th spindle is a pneumatically adjustable trimming saw – Planer in ideal, very good condition Net price: 53,900 PLN Net price: 12,840 EUR Net price calculated at 4.2 PLN/EUR exchange rate (Price may change in case of significant exchange rate fluctuations)

Condition: used, Number of boring spindles 5 St. Working width 230 mm Working height 120 mm Length of the planing table 2.000 mm Planing and moulder Weinig Profimat 23 for four-sided planing and profiling of timber incl. a set of planing heads. Including dismantling and loading. Fixed loading date: 15.06.2026. Spindle 1: Bottom Spindle 2: Right Spindle 3: Left Spindle 4: Top Spindle 5: Bottom Psdpfxey Dh Sps Ag Depr

Condition: excellent (used), working width 230mm working height 120mm 5 heads Ppodpfx Ageyxltgj Dor heads set: bottom/right/left/top/bottom spindles diameter 40mm variable regulated feeder feeder with cardan pneumatic pressure of feeding rolls table lubrication

Condition: ready for operation (used), working width 230mm working height 120mm 5 spindles spindles set: bottom/right/left/top/bottom Psdpfx Aoyxltasg Depr spindles diameter 40mm two axes heads regulation variable regulated feeder spindles speed 6000 RPM
