Formier

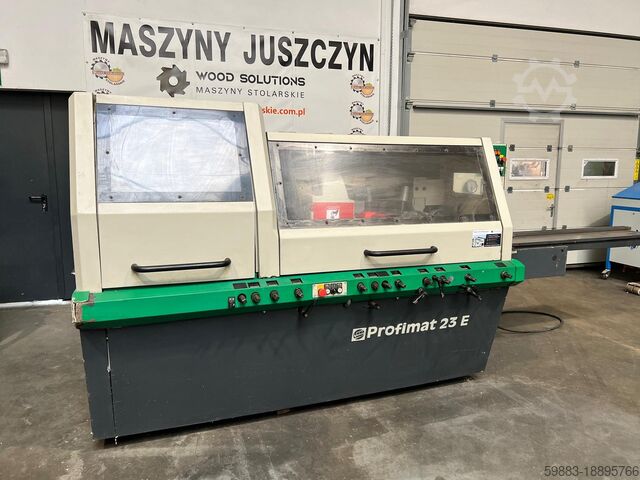

Weinig Profimat 23E

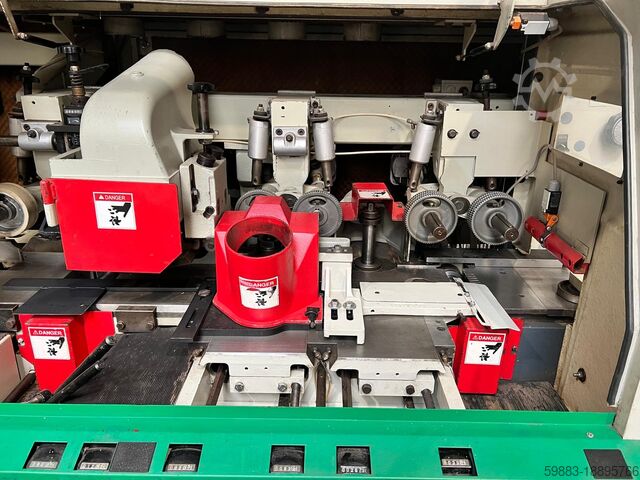

Condition: used, Planer and edge finishing machine Weinig Profimat 23 E for four-sided planing and profiling of wood with movable spindle. spindle: 5 Fpjdox Ecguspfx Ah Isr spindle 1: Bottom / 5.5 kW / 40 mm spindle 2: Right / 5.5 kW / 40 mm spindle 3: Left / shared motor with #2 / 40 mm spindle 4: Top / 7.5kW / 40 mm spindle 5: Bottom / 4 kW / 40 mm working width: 230 mm working height: 120 mm

Condition: used, Number of spindles 6 St. Working width 230 mm Working height 120 mm Length of the planing table 2500 mm Feed motor 3 kW Feed speed 5-24 m/min. total power requirement 27 kw Dimensions (L/W/H) 3900 x 2200 x 2000 mm weight of the machine ca. 2500 kg Weinig Profimat 23 four-side planer, window version with glazing bead removal or can be used as a grooving spindle ATS control and program control ----- Machine was factory overhauled by Weinig in 2024. Technical Specifications Summary (Please inquire about any additional accessories included) ----- General ----- Fsdexpn T Uepfx Ah Ijpr > Working width: 230 mm > Working height: 120 mm > Number of spindles: 6 > Planer table length: 2500 mm > Feed motor: 3 kW > Feed speed: 5-24 m/min > Total power requirement: 27 kW > Dimensions: 3900 x 2200 x 2000 mm > Machine weight, approx.: 2500 kg Spindle arrangement ----- > Spindle 1: bottom > Spindle 2: right, pneumatically timed up-down > Spindle 3: left > Spindle 4: top > Spindle 5: bottom > Spindle 6: pneumatically timed up-down glazing bead saw Spindle Description ----- > Spindle 1: 4 kW, 6000 rpm, 40 mm diameter > Spindle 2: 7.5 kW, 6000 rpm, 40 mm diameter > Spindle 3: 6000 rpm, 40 mm diameter > Spindle 4: 5.5 kW, 6000 rpm, 40 mm diameter > Spindle 5: 4 kW, 6000 rpm, 40 mm diameter > Spindle 6: glazing bead saw 2.2 kW, 6000 rpm, 40 mm diameter Additional Features ----- > Can be used for glazing bead cutting or as a grooving machine > ATS control, automatic 2-axis positioning for width and height (left and upper spindle) with 99-program memory > Machine operation: Window package Joint control of the right spindle and the glazing bead feed via manual selector switch on the control panel > Spindles with mechanical digital display (Technical data according to the manufacturer - no guarantee!)

Condition: used, Year of construction: 2000, machine/vehicle number: 90816, Technical specifications: 1st shaft: lower horizontal, 2nd shaft: right spindle moulder, 3rd shaft: left spindle moulder, 4th shaft: upper horizontal, 5th shaft: lower horizontal, 6th shaft: universal, ATS control, any width, maximum width: 230, maximum height: 120. Fpjdexp U R Hspfx Ah Isr

Condition: used, Year of construction: 1998, SECOND-HAND 5 SPINDLES MOULDER WEINIG PROFIMAT 23 E - CE RULES - ATS system - Working width 260 mm Fodomxkx Hjpfx Ah Ispr - Working height 160 mm. Composition : - Horizontal bottom 5.5Kw - Vertical right (7.5Kw Rh + Lh) - Vertical left - Horizontal top 7.5Kw - Horizontal bottom 11Kw - Year 1998 (CE) - V 380/50

Condition: reconditioned (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 226-60758, Number of spindles: 5 units Working width: 230 mm Planing height: 120 mm Feed motor: 2.2 kW Feed speed: 5–24 m/min Total power requirement: 25 kW Dimensions (Length/Width/Height): 3400 x 1800 x 1610 mm Machine weight: approx. 2500 kg Four-Side Planer WEINIG PROFIMAT 23 E - Year of manufacture: 1997 - Serial number: 226-60758 - Maximum working width: 230 mm - Maximum working height: 120 mm Fpjdpfx Aow Svb Tsh Ior - Cardan shaft feed, stepless adjustment 5–24 m/min - Feed motor: 2.2 kW - 1st spindle (bottom): 4.0 kW - 2nd spindle (right) – motor for 2nd right and 3rd left spindle: 7.5 kW - 3rd spindle (left) - 4th spindle (top), motor: 5.5 kW - 5th spindle (bottom), motor: 4.0 kW - Electrically adjustable height and depth: 0.25 kW - All spindles equipped with brake motors - Spindle speed: 6,000 rpm - Spindle diameter: ø 40 mm - Planing table: 2,000 mm with serrated table inserts and straightening guide - Feed rollers with pneumatic pressure - Feed roller diameter: 140 mm - Transport rollers opposite left spindle - Infeed roller before jointer with pneumatic actuation - SICO counters - Manual wax pump - Centralized lubrication points - 1 set of planing heads - Total connected load: 25 kW - Machine dimensions: L=3400 mm, W=1800 mm, H=1610 mm - Weight: 2500 kg

Condition: excellent (used), Year of construction: 1995, Weinig Profimat 23E four side planer - German production - year of production 1995 - right and left spindles with a face milling cutter ensuring parallelism and a right angle of 900 - element width measurement - electronic width adjustment TECHNICAL PARAMETERS: planing width 230 mm planing height 120 mm electronic planing width control 1 lower spindle 4 kW 2 right spindle 4 kW 3 left spindle 4.2 kW (face milling) 4 spindle right 4.2 kW (face milling) 5 upper spindle 7.5 kW element width measurement Fpjdpfoibq Nisx Ah Isr electric height adjustment of the feed rollers electric height adjustment of the upper spindle spindle diameter 40 mm six top steel rollers yen top roller, rubber one roll in the table top pulling pneumatic pressure feed on cardan shafts pre-table length 2470 mm diameter of nozzles 140 mm Machine dimensions 456x240x220 weight 4000 kg

Condition: ready for operation (used), Technical characteristics Capacity : 230 x 120 mm Max. tool Ø 200 mm 5 shafts ATS control Composition : Lower planer 5.5 kW, bore 40 mm Right-hand spindle moulder 5.5 kW, 40 mm bore Left-hand spindle moulder 5.5 kW, 40 mm bore Top planer 5.5 kW, 40 mm bore Lower planer 5.5 kW, 40 mm bore Feeding speed : 5-35 m/min Infeed table length : 2000 mm Roller in table Pneumatic pressure Automatic table lubrication Power and Motors Voltage: 380 V Pluging: Three-phased Fsdpfxjqxm S So Ah Ijpr Overall dimensions

Condition: used, Year of construction: 1997, SECOND-HAND 5 SPINDLES MOULDER WEINIG MOD. PROFIMAT P23E - CE RULES - Horizontal bottom 5.5Kw - Vertical right/left 7.5Kw - Horizontal top 7.5Kw - Horizontal bottom 4Kw - Year 1997 (CE) Fsdpfxowrxuwj Ah Iopr
