Planer and moulder

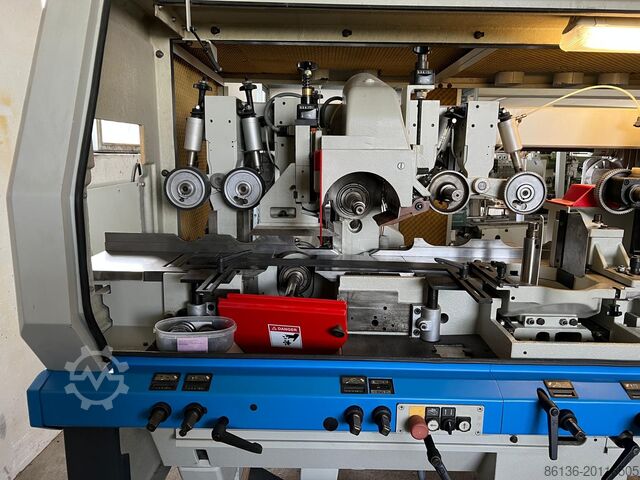

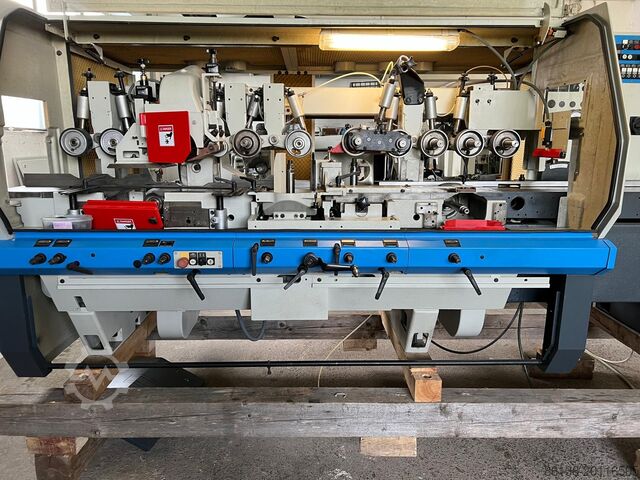

WEINIG Unimat 23 E

Condition: used, Year of construction: 1999, Four-sided planer Little Unimat 23 E Year of construction 1999 Serial number 88103 Feed speed 5/24 m/min Workpiece width min/max 20/230mm Workpiece height min/max 8/160mm Spindle diameter 40mm Input table length 1950mm Groove bed Tsdpfewnh Sqex Agcsf 1st spindle bottom: 5.5kW 2nd & 3rd spindle right & left: 11kW 4th spindle above: 15kW 5. Spindle top: 11kW 6. Spindle bottom: 5.5kW Total power 54kW Total 117Amp. Fuse 125Amp. Transport dimensions: 4200x2000x2100 (LxWxH) weight +/- 4500kg - Year: 1999 - Documentation available: No - CE certificate present: No - Serial number: 88103 - Number of spindles [pcs.]: 5 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Number of spindles 6 St. Working width 230 mm Working height 120 mm Length of the planing table 2000 mm Feed motor 4 kW Feed speed 5-24 m/min. 1 WEINIG Unimat 23 E Planer and moulder ----- 6 spindles (with 2 rigth spindles, reinforced motors, 8,000 rpm, ATS control Machine will be cleaned and functionally checked before delivery Working width 20 - 230 mm Working height 8 - 120 mm 1st spindle (bottom) 5.5 kW (motor replaced) ----- Diameter 40 mm Speed ??6,000 rpm Tool swing diameter 125 - 180 mm Rebating unit including tool Hardened table insert in front of 1st (bottom) spindle 2nd spindle (right) 12.1 kW (motor replaced) ----- Shared motor with left vertical spindle Diameter 40 mm Speed ??8,000 rpm Tool swing diameter 112-250 mm Max. Tool diameter behind stop plane 203 mm Max. groove depth 35 mm Axially travel 80 mm 3. Spindle, left ----- Shared motor with 2nd spindle Diameter 40 mm Speed ??8,000 RPM Tool swing diameter 112-200 mm Max. groove depth 35 mm Axially travel 80 mm Pressure shoe in front of left spindle, including spring-loaded lateral roller pressure 4. Spindle, right 8.3 kW (motor replaced) ----- Diameter 40 mm Speed ??8,000 RPM Tedpfx Agjxz Hh Uscef Tool swing diameter 112-250 mm Max. tool diameter behind stop plane 203 mm Max. groove depth 35 mm Axially travel 80 mm 5. Spindle, top 7.5 kW ----- Diameter 40 mm Speed ??8,000 rpm Tool travel 112-200 mm Max. groove depth 35 mm Axially travel 45 mm Split pressure shoe in front of upper spindle, adjustable to the tool travel and pivoting away from the tool, spring-loaded. 6. Lower spindle 4.0 kW ----- Diameter 40 mm Speed ??6,000 rpm Tool travel 112-250 mm Max. groove depth 15 mm Axially travel 45 mm Spindles in general ----- All groove spindles with high concentricity. Lubrication points for the axial spindle movement. Feed system ----- Motor with mechanical brake, 4 kW Mechanical feed infinitely variable 5-24 m/min. Feed roller in front of the first lower tool pneumatically controlled up/down, Durofer pointed tooth rollers (Weinig patent) with depth limiter and self-cleaning Adjustment travel of the feed rollers relative to the left spindle, axial 35 mm Machine electrical system ----- Operating voltage 440 V (voltage range 380 - 420 V), 50 Hz. Machine frame, tables and stops ----- Infeed table 2.0 m long (incl. jointing guide) Manual Waxilit pump for table de-resin removal One driven rubber roller (spring-loaded in the outfeed table) Two driven rollers in the machine table, hardened Machine operation ----- Pressure shoe in front of the upper spindle with mechanical digital display. Extraction after the upper spindle with mechanical digital display. ATS/System, automatic 2-axis positioning for spindles 3 and 5 Minimum working height 12 mm Electric height adjustment of the upper spindles and the feed Central lubrication points on the front of the machine Electronic digital displays on spindles 3 and 5 (axial), spindle 6 (radial) and spindle 4 (axial and radial) Safety and noise reduction ----- Full safety enclosure Easily hinged safety hood with window. Covers the e...

Condition: good (used), Year of construction: 1998, functionality: fully functional, spindle diameter: 40 mm, working width: 230 mm, feed rate X-axis: 5 m/min, feed rate Y-axis: 36 m/min, planing width: 20 mm, height adjustment type: electric, planing height: 160 mm, working height: 8 mm, Equipment: cabin, motor brake, Weinig Unimat 23 E 6 Head planer moulder. Bottom head - 10hp Fence + near head -15hp (common motor) 1st top head - 15hp 2nd top head - 15hp 2nd bottom head - 10hp Spindle speed - 6000rpm Tjdpfx Agev A Rpcscof Feed speed - min/5 + max/36 meters per minute Working width - min 20mm + max 230mm Working height - min 8 mm + max 160mm Spindle diameter - 40mm The machine is currently still in use and viewing is more than welcome.

Condition: excellent (used), WEINIG Unimat 23 E four-side planer Maximum planing width: 230mm, Maximum planing height: 130mm, 5 spindles, Manual adjustment of planing dimensions, Spindle arrangement: bottom 7.5kW; left and right 11kW; top 11kW; bottom 7.5kW, Motors with brakes, Spindle diameter: 40mm, Fully adjustable spindles, Machine equipped with 4 feed rollers on the table, suitable for wet timber, Feed via cardan shafts with stepless regulation, Machine supplied with the heads shown on the spindles, Cardan shafts not worn, tables unworn, runs smoothly without vibrations or oscillations, Robust planer in original condition, weight approx. 5t. Very good condition, everything works. Tsdpfx Aexvc Uaegcjf

Year of construction: 1997, condition: excellent (used), max width of the workpiece 23cm max height of the workpiece 18cm 1 lower horizontal spindle 2 right vertical spindle Tedpfxsk Dxrae Agcjf 3 left vertical spindle 4 top horizontal spindle heads adjustable up / down, right / left spindle diameter 40mm Hydraulic side feed on the feeding table

Year of construction: 1999, condition: ready for operation (used), General Data Machine weight 3200kg This WEINIG Unimat 23 E was manufactured in 1999, designed for efficient wood planing. Ideal for woodworking professionals looking to enhance their production capabilities. Contact us for more information. Todpfxsxn U Ams Agcsf Application Types Planing

Year of construction: 1999, condition: ready for operation (used), A four-side planer Weinig is available. Working width: 230mm, working height: 120mm, feed rate: 24m/min, machine dimensions X/Y/Z: approx. 3500mm/2000mm/2000mm, weight: approx. 3500kg. An on-site inspection is possible. Tsdpfjxpw Uhox Agcjf

Condition: used, Year of construction: 2000, Number of spindles 6 St. Working width 230 mm Working height 120 mm Length of the planing table 2500 + 500 mm Feed motor 3 kW Feed speed 6-36 m/min. 1 WEINIG Unimat 23 E 4-side Planer and Moulder ----- 6 spindles (2 on the right), powerful motors, EM 11 feed magazine available Tjdpfxewqr Rvj Agcsf Working width 20 - 230 mm Working height 8 - 120 mm 1st spindle, bottom 7.5 kW ----- Diameter 40 mm Speed ??6000 rpm Tool travel radius 125 - 180 mm Folding device including tool Hardened table insert in front of 1st lower spindle 2nd spindle, right 11.0 kW ----- Shared motor with left vertical spindle Diameter 40 mm Speed ??6000 rpm Tool travel radius 112-250 mm Max. tool diameter behind stop plane 203 mm Max. groove depth 35 mm Axis adjustment range 80 mm 3rd spindle, left ----- Shared motor with 2nd spindle Diameter 40 mm Speed ??6000 rpm Tool cutting radius 112-200 mm Max. groove depth 35 mm Axis adjustment range 80 mm Pressure shoe in front of left spindle, including lateral roller pressure, spring-loaded 4th spindle, right 7.5 kW ----- Diameter 40 mm Speed ??6000 rpm Tool cutting radius 112-250 mm Max. tool diameter behind stop plane 203 mm Max. groove depth 35 mm Axis adjustment range 80 mm 5th spindle, top 11.0 kW ----- Diameter 40 mm Speed ??6000 rpm Tool cutting radius 112-200 mm Max. throat depth 35 mm Axis adjustment range 45 mm Split pressure shoe in front of the upper spindle, adjustable to the tool travel circle and pivoting away from the tool, spring-loaded. 6. Lower spindle 7.5 kW ----- Diameter 40 mm Speed ??6000 rpm Tool travel circle 112-250 mm Max. throat depth 15 mm Axis adjustment range 45 mm Spindles in general ----- All throat spindles with high concentricity. Lubrication points for the axial spindle movement. Spindle length of vertical spindles 170 mm Feed system ----- Motor with mechanical brake, 3 kW Mechanical feed continuously adjustable 6 - 36 m/min. Feed roller in front of the first lower tool pneumatically controlled up-down, Durofer pointed tooth rollers (Weinig patent) with depth gauge and self-cleaning Adjustment range of the feed rollers relative to the left spindle, axial: 35 mm Extension of the oscillating axis relative to the left spindles to 150 mm Machine electrical system ----- Operating voltage: 380-400-415 volts, 50 Hz. Machine stands, tables, and stops ----- Surface table 2.5 m long (including jointing ruler) Aluminum extension 0.5 m for surface table, including extension of the jointing ruler Manual Waxilit pump for resin removal from the table One driven rubber roller (spring-mounted in the outfeed table) Pressure elements and Guides ----- Pneumatic pressure rollers from above Pneumatic pressure rollers pivot away from above, opposite the right-hand spindles for easy tool changes Machine Operation ----- Pressure shoe in front of the upper spindle with mechanical digital display. Discharge after the upper spindle with mechanical digital display. ATS/E system, automatic 2-axis positioning for spindles 3 and 4 Min. working height 12 mm Electric height adjustment of the upper spindles and the feed Central p...

Condition: ready for operation (used), functionality: fully functional, working width: 260 mm, planing height: 160 mm, spindle diameter: 40 mm, planing width: 260 mm, working height: 160 mm, power of feed motor: 5,500 W, spindle speed (max.): 6,000 rpm, spindle speed (min.): 6,000 rpm, height adjustment type: electric, type of input current: three-phase, number of spindles: 6, power: 65 kW (88.38 HP), input frequency: 50 Hz, Equipment: cabin, motor brake, Weinig Unimat 23 E with 6 spindles, with hard coating. Working width: 260 mm, working height: 160 mm, spindle diameter: 40 mm, Feed rate: 5.5 kW / 6 - 36 m/min, Spindle arrangement: 1-bottom (11 kW ) Tsdpfxjvbi Rvo Agcef 2-right + 3-left (15 kW) 4-Top (11 kW) 5-top ( 11 kW ) 6-bottom ( 11 kW ) Air cushion in the table. Short parts package Four powered rollers in the table.

Year of construction: 1999, condition: ready for operation (used), Working width: 230mm, working height: 160mm, number of spindles: 5, spindle diameter: 50mm, spindle power: 4x 5.5kW/2x 11kW, feed rate: 24m/min, input table length: 3000mm, vertical spindle axial stroke: 80mm, horizontal spindle axial stroke: 45mm. Connected load: 126kW, air requirement: 8400-9600m³/h, machine dimensions X/Y/Z: approx. 3500mm/2000mm/1800mm, weight: approx. 3500kg. Including Weinig EM-11 slide-in unit and suitable distributor for the extraction system. Documentation available. On-site inspection is possible. Tjdpfx Aju Damdjgcof
