2 side planer

Weinig Uniplan 23

Condition: good (used), Year of construction: 2004, Weinig Unimat 23 EL Year of manufacture: 2004 Working width: 230 mm, Working height: 120 mm 1. Bottom spindle with 7.5 kW motor and spindle brake 2. Right spindle with separate motor, 7.5 kW and spindle brake Speed: 8,000 rpm with high-performance ball bearings, NC-axis with frequency inverter, axial stops milled to 35 mm height 3. Left spindle with separate motor, 7.5 kW, speed 8,000 rpm with high-performance ball bearings, NC-axis with frequency inverter, radial pneumatic pressure guide left for varying workpiece widths up to 200 mm 4. Top spindle with 7.5 kW motor and spindle brake, speed 8,000 rpm with high-performance ball bearings, NC-axis radial Pneumatic axial control, adjustment range 40 mm, glazing bead ejection, pneumatically cycled. - Infeed system with 4 kW motor and infeed brake - Short piece package - UC-Matic package consisting of: PLC control, central motor start, parts monitoring, operator terminal, free-standing control cabinet, free-standing operating panel, magnetic interlock for safety cover - Enhanced sound insulation - Automatic planing and feeding system for different workpiece lengths and widths Workpiece dimensions Length: 400 – 3,500 mm (4,000 mm) Width: 40 – 200 mm Thickness: 20 – 100 mm Ijdswyuluepfx Agdoap Powered conveyor belt Belt width 250 mm, conveying length 4,500 mm, additional photoelectric sensor for signal transmitter Weinig Hydro Finish Planing Machine Uniplan 23 Year of manufacture: 2004 Working width: 230 mm, Working height: 120 mm 1. Bottom spindle with 7.5 kW motor and spindle brake, speed 7,200 rpm 2. Top spindle with 7.5 kW motor and spindle brake, speed 7,200 rpm, NC-axis radial - First feed roller cycled with photocells - NC-axis for separate feed height adjustment - Improved sound insulation - UC-Matic package - 2 hydro straight cutter blocks 501 with HSS strip planer knives 30 mm x 3 mm, max. 9,000 rpm, dimensions 163 mm x 230 mm x 50 mm, Z=4

Condition: used, Working width 230 mm Working height 15-120 mm Number of spindles 2 St. Weinig Hydro Planer Type Uniplan 23 ----- Machine was factory overhauled by Weinig in 2024. Description: For two-sided horizontal woodworking with two working spindles. Spindle arrangement: horizontal, bottom and top. The two horizontal spindles are equipped with hydraulically tensioned counterbearings without axial adjustment. Built-in straight jointers on both spindles with automatic stone feed, remotely controlled with the hood closed. Machine with continuous, chainless feed, equipped with rubber rollers. Electric up/down adjustment of the spindles according to a mechanical digital display (SIKO). On/off switch for limiting the up/down adjustment. Feed roller pressure pneumatic. Stops and table tops are not adjustable. Machine with steel table tops. Machine with full enclosure and integrated sound and dust protection including interior lighting. Electrical design according to DIN VDE 0113, electrical equipment of industrial machines EN 60204, IEC - 204 - 1. Other electrical regulations are not taken into account. Machine includes operating tools, but does not include machining tools. The Weinig Uniplan spindles operate at a speed of 7200 revolutions per minute. Before using existing tools, please check that they are suitable for the speed. Please also consider this when ordering new tools. Iaodpfoxpn Tzsx Agdop Technical specifications Max. working width: 230 mm Min. working height: 15 mm, max.: 120 mm Feed: 3 kW (4 HP) Horizontal spindles each: 7.5 kW (7.5 HP) Infinitely variable feed speed: 6 - 36 m/min. Spindle speed: 7,200 rpm Spindle diameter: 50 mm Tool clamping length: 240 mm Maximum tool radius: 163 mm Fixed clamping clearance at bottom: 0.5 mm (Technical data according to the manufacturer - no guarantee!)

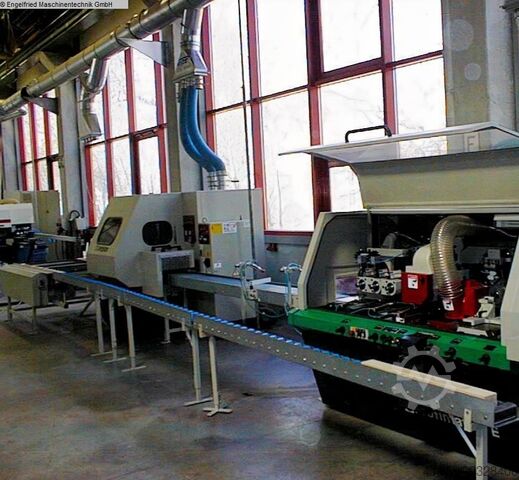

Condition: used, Number of spindles 8 St. Working width 230 mm Working height 120 mm Weinig Planing and moulding line ----- Consisting of the following individual machines: Item 1: Weinig Profimat 23 E, four-side planer, stock number: 2803 5 spindles + glazing bead saw Item 2: Weinig Uniplan 23, stock number: 2804 Fine and hydroplaner with 2 horizontal spindles Item 3: Weinig RF 15, stock number: 2805 Longitudinal-cross-longitudinal conveyor with workpiece return to the operator Detailed descriptions of the machines can be found under the mentioned stock numbers. Iaedpfx Agexpn Tuodep (Technical specifications according to the manufacturer, without guarantee!)
