Weiss SC 1000/+20IU Corrosion Climate Alternating Test Chamber, Salt Spray Test Chamber

Weiss SC 1000/+20IU

Weiss SC 1000/+20IU Corrosion Climate Cycle Test Chamber
Weiss SC 1000/+20 IU Corrosion Climate Cycle Test Chamber

The test system is a combination of a climate testing chamber with variable temperature and humidity and a corrosion testing chamber with a salt spray test.

In a time-lapse mode, vulnerable metallic components are tested for corrosion according to the relevant standards.

Temperature operating range:

Temperature: +20 °C ... +60 °C
Time-dependent temperature deviation: +0.5 K

Climate operating range:
Temperature: +20 °C ... +60 °C
Time-dependent temperature deviation: +0.5 K
Relative humidity: 10...98 % RH
Time-dependent humidity deviation: 3...5 % RH
Dew point: +12 °C ... +59 °C

Salt spray test SS (temperature range: ambient temperature +5 K ... +50 °C)
according to DIN 50 021 (salt spray with a two-nozzle system, 1.5 x 0.5 mV80 cm? h)

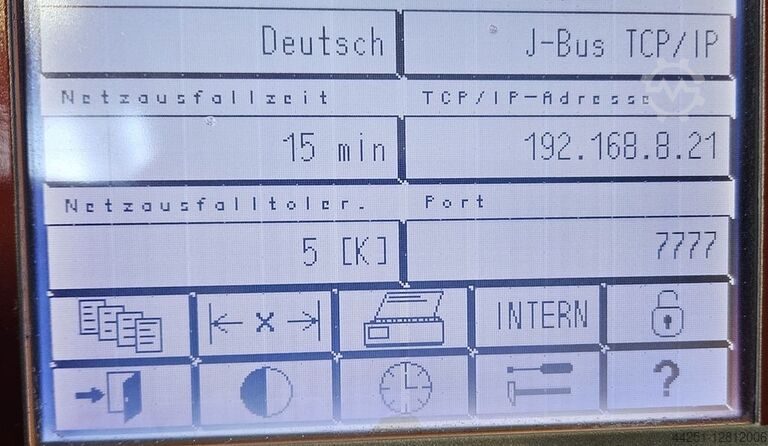

Control:

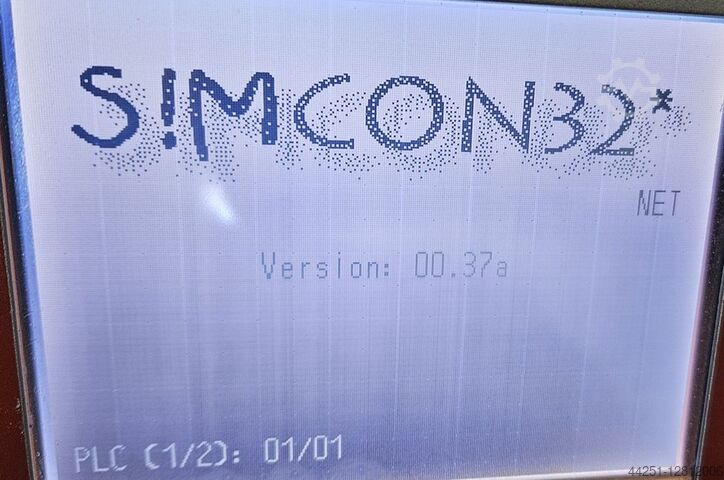

Digital measuring and control system SIMCON/32*-Net with touch panel
Interfaces: serial interface RS 232 C, parallel printer interface

Operating modes adjustable via process controller:
- Temperature control
- Climate control
- Salt spray test
- Direct spraying with salt solution
- Condensation load
- Flushing of test chamber walls
- Drying/ventilating the test chamber

Temperature sensor: Pt 100 resistance thermometer
Humidity sensor: psychrometric fresh measuring system tft’ (with forced humidification)

Technical data SC 1000/+20 JU

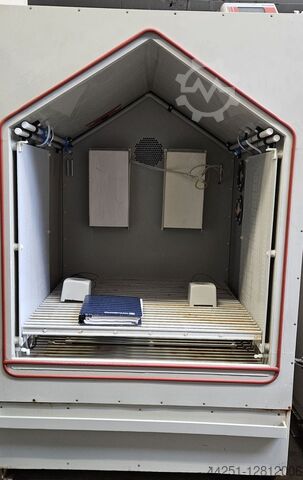

Usable space dimensions:
Height up to roof slope approx. 1000 mm
+ Roof approx. 350 mm
Width approx. 1100 mm
Width between the heaters approx. 1000 mm
Depth approx. 1000 mm
Ijdoph U Dhopfx Amgsih

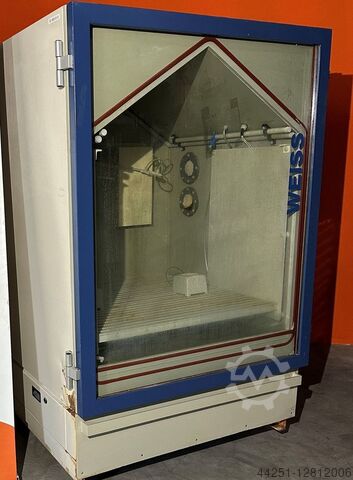

Test chamber door made of glass, left-hinged
Height approx. 1350 mm
Width approx. 1000 mm

External dimensions including unit components and control cabinet
Height approx. 2100 mm
Width approx. 1450 mm
Width with touch panel approx. 1700 mm
Depth approx. 2600 mm

Maximum floor load: 100 kg

Brine storage tank:
approx. 200 l, with level monitoring, located separately to the side/behind the unit
Height approx. 1000 mm
Width approx. 600 mm
Depth approx. 900 mm

Electrical connection: 400 V
Connected power: 13 kW

Weight: 1300 kg
