Measuring machine

Wenzel LH 87

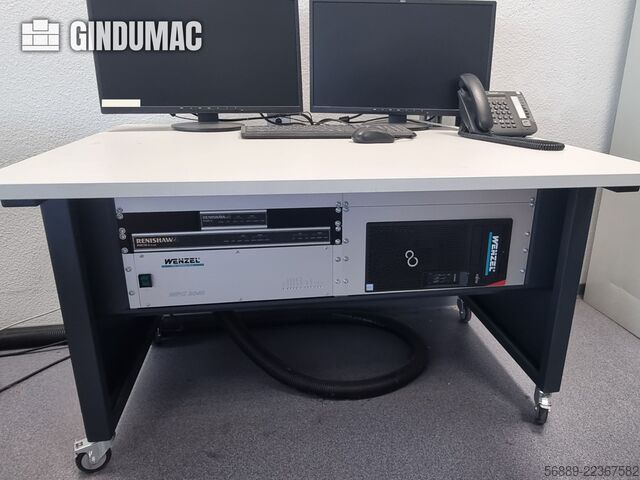

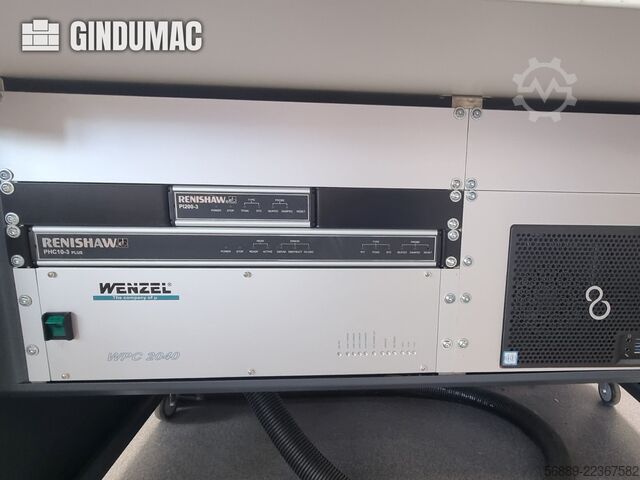

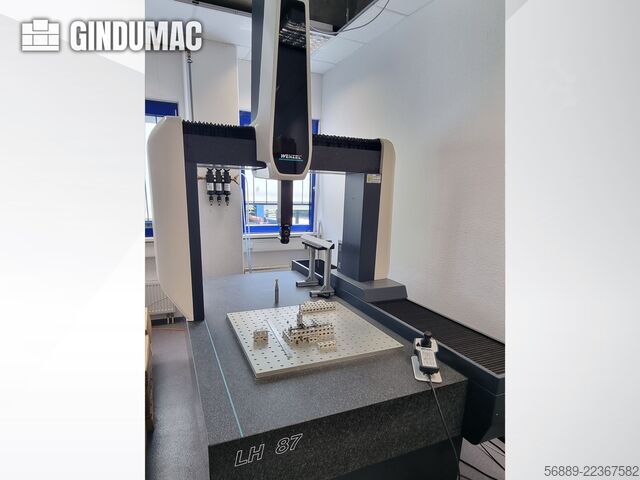

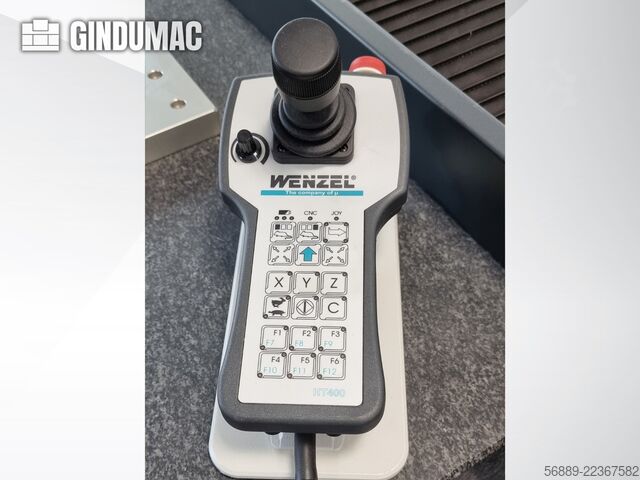

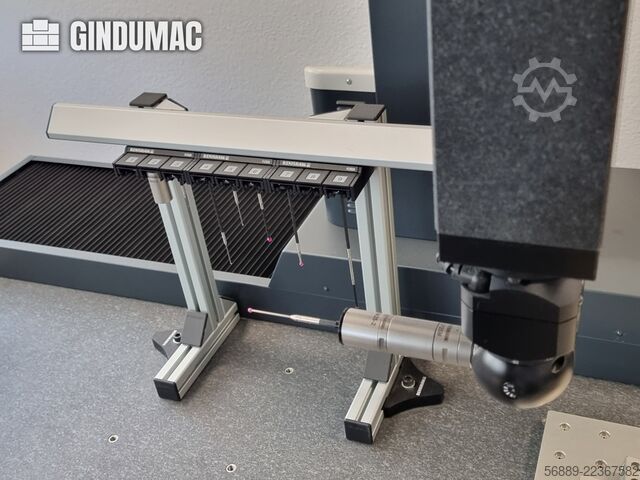

Condition: ready for operation (used), Year of construction: 2018, travel distance X-axis: 800 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 700 mm, number of axes: 3, This 3-axis Wenzel LH 87 CMM machine was manufactured in 2018. It features a measuring range of 800 mm in the X-axis, 1,500 mm in the Y-axis, and 700 mm in the Z-axis. The machine is equipped with advanced software modules, including WM Quartis GEO and WM Quartis SCAN, ensuring high-quality measurement capabilities. If you are looking to get high-quality measurement capabilities, consider the Wenzel LH 87 CMM machine we have for sale. Contact us for further details. • Software: WM Quartis R2021-2 • Control Unit Model: WPC 2040 • Control Type: Type 1 • Control Software Version: 31.46 • Controller Date: 05.07.2018 Lodpfjzmxm Tjx Amtsad • PMAC Version: 1.945 • Probe Head: Renishaw PH10M-PLUS • Scanning Probe: Renishaw SP25M • Probe Change Rack: Renishaw FCR25 • Probe Module: SP25M • Hand Controller: WENZEL HT400 • CAD Interface: STEP • CAD Interface: IGES • CAD Interface: VDA-FS • Software Module: WM Quartis GEO • Software Module: WM Quartis SCAN • Software Module: WM Quartis SURF • Software Module: WM Quartis CURVE • Software Module: WM Quartis EMD • Software Module: WM Quartis IMPEX-ELEM • Software Module: WM Quartis PRC • Calibration Certificate: Available • Calibration Label: 2024

Condition: ready for operation (used), Year of construction: 2014, travel distance X-axis: 800 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 700 mm, number of axes: 3, This 3-axis Wenzel LH 87 CMM machine was manufactured in 2014. It features a measuring range of 800 mm in X, 1000 mm in Y, and 700 mm in Z, with a maximum component weight capacity of 800 kg. The machine is equipped with an air-bearing system across all axes and a Renishaw PH10M Plus motorized indexing probe head. If you are looking to get high-quality measurement capabilities, consider the Wenzel LH 87 CMM machine we have for sale. Contact us for further details. Ljdpfx Amoy Uvtvotjad - Volumetric Length Measuring Error (E0, MPE): 2.2 µm + (L / 300.0 mm) µm- Length Measuring Error along Optical Axis (E150, MPE): 2.2 µm + (L / 300.0 mm) µm- Max. Component / Workpiece Weight: 800 kg- Axis Bearings: Air-bearing system integrated across all axes- CNC Control Unit: WPC 3-axis contouring configuration- Controller Hardware: WPC2040 Basic combined with Renishaw PHC10-3 PLUS controller rack unit- Machine Control Panel: Wenzel HT400 wired manual joystick control handbox- Probe Head System: Renishaw PH10M Plus motorized indexing probe head- Probing Sensor System: Renishaw TP200 high-precision strain-gauge touch-trigger probe- Change Rack System: Renishaw SCR200 6-port autonomous stylus changer bridge (5 ports actively equipped in visual configuration)- Active Stylus Configurations (on-rack):* Port 1: Taster 1001 (Ø 1.00 mm)* Port 2: Taster 2001 (Ø 2.0 mm Cylindrical)* Port 3: Taster 3001 (Ø 2.00 mm Ruby Ball)* Port 4: Taster 4001* Port 5: Port 5 configured (Visual confirmation: angled/star setup)- Evaluation PC Hardware: Fujitsu Esprimo Desktop PC Tower housed in a dedicated lower-desk controller bay compartment- Visual Workstation Monitors: 2 x BenQ 24" TFT flat screen displays- Input Peripherals: Wired keyboard, mouse, and Wenzel-branded workflow mousepad- Core Operating System: Windows 10 Pro (Version 10.0, Build 19045, 64-bit Edition)- Metrology Software Suites:* Wenzel WM | Quartis Standard (Build R2025-1 / R2025-2 back-compatible ecosystem)* CM Wenzel CNC Control Geometry Software Module* CM Wenzel CNC Free-Form Surface Software Module- Software Licensing & Security: Metrokey Dongle Protection (ID: 45984, Status: Valid, Local Workstation), Driver Version 7.6.0- Native CAD Data Core Interfaces: STEP, NX, VDA-FS, IGES, EMD (Q-DAS), IMPEX-ELEM, CURVE, SURF, IPH, PRC- Optional Extension Interfaces: CATIA, Pro-E, SolidWorks- Included Calibration Accessories: High-purity Ceramic Reference Calibration Sphere complete with base extension column block

Condition: used, Year of construction: 2007, machine/vehicle number: 75388, Machine: Wenzel LH87 Serial number: 075388 Year of manufacture: 2007 X 800mm Y 1000mm Z 700mm Lasdex Ey Daopfx Amtod Measuring head: SP80

Condition: ready for operation (used), Year of construction: 2012, Travel X/Y/Z: 800mm/2000mm/700mm, max. length measurement error: 2.5 + L/350, max. single-point error: 2.5, control: Pantec Eagle Pro/3. Includes test head PH10M Plus, PHC-2, sensor TP200, 20-piece probe set, calibration sphere, industrial PC, measuring software Inca 3D Premium with STEP and factory calibration. The machine can be equipped with additional options. Documentation available. An on-site inspection is possible. Laodpfx Amew H Au Rsted

Condition: ready for operation (used), Year of construction: 2005, Measuring dimensions X/Y/Z: 800mm/1000mm/700mm, max. workpiece weight: 800kg, measuring accuracy: 0.0005mm, repeatability: 0.002mm, measuring plate dimensions X/Y/Z: 1040mm/1780mm/250mm, rotary swivel head: Renishaw PH 10T Plus. The PH 10T was replaced in 2023. Documentation available. On-site inspection is possible. Ljdpfx Amsu Ur Sqetjad

Condition: ready for operation (used), Year of construction: 2006, Travel X/Y/Z: 800mm/1000mm/700mm, max. length measurement error: 2.5 + L/350, max. single-point error: 2.5, control: Pantec Eagle Pro/3. Includes test head PH10M Plus, PHC-2, sensor TP200, 20-piece probe set, calibration sphere, industrial PC, measuring software Inca 3D Premium with STEP and factory calibration. The machine can be equipped with additional options. Documentation available. An on-site inspection is possible. Lsdpfx Ajw H Au Domtsad

Condition: ready for operation (used), Year of construction: 2006, Working range X/Y: 1000mm/2200mm, accuracy: 0.8 + L/450µm, max. workpiece weight: 800kg, machine dimensions X/Y: approx. 3000mm/2800mm, weight: approx. 4000kg. Including Wenzel HT 400 hand control, computer with 2 TFT monitors and Kyocera laser printer. Without measuring probe. Documentation available. On-site inspection is possible. Laodpfxsu T Rhzj Amted

Year of construction: 1997, condition: excellent (used), machine/vehicle number: 971696, Technical Data Manufacturer: Wenzel Type: LH87 / CNC Year of Manufacture: 1997 Machine No.: 971696 Measuring Range X-axis: 800mm Y-axis: 1000mm Z-axis: 700mm Probing System Probing Head: PH10M Probing System Type: TP20 Control Panel: HT400 Control System: WPC 2010 The machine can be modernized with new accessories according to customer requirements. Price: upon request! Installation and commissioning possible! We would be happy to prepare a detailed offer for you! Lsdpfxed Sv D Ne Amtead Note: Our offer is exclusively for professional customers! (Subject to changes and errors in technical data, information, and prices, as well as prior sale!)

Condition: used, Year of construction: 2008, #: software: WM I QUARTIS (current version) Measuring range: 800x2,000x700 [mm] Measurement uncertainty: Eo = 2.3 + L/300 [μm] Max. component weight: 800 [kg] Lsdpfx Amoh Nct Ajtead CAD interfaces: VDA, IGES, STEP Optional: CATIA, Pro-E, SolidWorks Further information: • Air bearings in all axes • CNC control for 3 axes WPC • Control geometry and free-form surface (current version) • PC system (NEW) • 2 x 24“ monitor (NEW) • Touch probe PH10M/TP200 • Reference sphere • Controller table Options: Additional software modules, probe changers, accessories and clamping systems available on request. Services: Installation • Commissioning and accuracy inspection • DAkkS calibration certificate as desired • Individual training • Packaging/transport/insurance
