Measurement system

WENZEL XO55

Condition: excellent (used), Year of construction: 2021, Functionality: fully functional, Mobile 7 axis measuring arm 2.5 (8ft) including optical sensor WM MLS 100 + accessories 3D measuring arm with tripod for geometrical measurements Iasljv A Tl Tohccqrst Completeness: Total, no damages, excellent condition, regularly calibrated, not contaminated

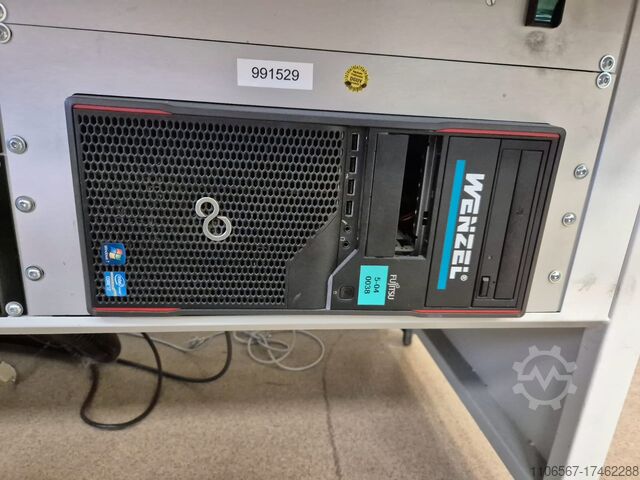

Condition: excellent (used), Year of construction: 1985, WENZEL LS 89091 3D measuring machine. -Year of manufacture 1985 -Moving distances (XxYxZ): 1500x600x600 mm. Ielhccsud At Djqrjat -RENISHAW PH9A measuring probe. -WENZEL control cabinet. -FUJITSU computer.

Condition: used, Year of construction: 2006, Measuring range: X-axis: 650 mm, Y-axis: 1200 mm, Z-axis: 500 mm, table dimensions: 850 x 1900 mm, measuring probe, make RENISHAW, manual control and various evaluation hardware, Note: Machine received a retrofit in 2022 Ielhccqswdbt Tjrjat

Condition: refurbished (used), Year of construction: 2006, Functionality: fully functional, measuring range X-axis: 1,800 mm, measuring range Y-axis: 200 mm, measuring range Z-axis: 650 mm, workpiece weight (max.): 180 kg, We are selling a refurbished Wenzel WGT350 XL rack and pinion measuring machine. The machine can be used to measure gears and racks. - Max. Rotary table workpiece diameter = 5 to 400mm - Max. Rotary table load = 180kg - Travel X= 1800mm Y=200mm Z=650mm - Counterholder measuring range = 20 to 900mm - Module measuring range from 0.5mm - Max. Max. rack length = 1200mm - 6x probe changer incl. 6x SP600M plates - Temperature compensation of the machine - Active air damping of the machine - Year of manufacture 2006 - Accessories such as, driver, reference ball etc. as shown - Jaw chuck D=200mm with inside and outside jaws The following software modules are included: - TMain - program management - TStylus - Probe management - TCali - probe calibration - TAmo - Calculated axis position determination - TGear - Cylindrical gear measuring program - TShaft - Program for dimension, form, position and scanning of unknown contours Iaelhccqovitkierst - contours - TWorm - Worm measuring program - TRack - Rack software - TReverse - The parameters of an unknown gear, module (mn), helix angle (ß) and pressure angle (a), can be determined with TReverse. can be determined. - Statistical program, statistical evaluation for spur gear, bevel gear and worm gear testing. worm testing For further information, please contact us by e-mail.

Condition: used, Year of construction: 1998, Functionality: fully functional, Wenzel alignment station for the Erowa Charmilles Robofil 2030SI Incl. base cabinet Islhccqjwdmv Hjroat

Condition: excellent (used), Year of construction: 2005, Functionality: fully functional, measuring range X-axis: 5,500 mm, measuring range Y-axis: 1,600 mm, measuring range Z-axis: 2,100 mm, total height: 3,650 mm, total width: 5,900 mm, total length: 6,220 mm, table width: 3,450 mm, table length: 6,020 mm, Our company offer for sale CMM Wenzel RS Plus 16/21, machine was used as a DEMO device for technicians training, and some measurements for our customers. The machine is equipped with a linear guide and tape measuring system, Renishaw for eventual assembly of the second column. Our company is able provide all necessary steps for moving and commissioning, calibration and an accredited test of accuracy. Measuring plate dimension: 6020x3450mm Probing system: probing head RENISHAW PH10M measuring probe RENISHAW TP20 CMM controller: Metrologic ME5008 or can be customised according to your needs CMM keyboard: Metrologic ME471 wired or can be customised according to your needs Iaelhccjwcytieqrot PC with minimal configuration Windows 11, 64 bit, CPU - i7, RAM - 8 GB, HDD - 250 GB,graphic card NVIDIA FX QUATRO supporting Open GL 2.1, ports - USB, LAN (RJ45), VGA a HDMI. Display 1920 x 1200 DPI, VGA, HDMI. or can be customised according to your needs Measuring software Metrolog X4 CNC Foundation or can be customised according to your needs

Year of construction: 2009, Condition: good (used), Computed Tomography Scanner Manufacturer: Wenzel Ijlhccokzhwdsqrsat Type: exaCT M150 HE Year of Manufacture: 2009 General Overhaul 2017 Operating Hours: 200 New Tube New Detector Areas of Application: Measurement and testing of small to medium-sized components. The exaCT M is particularly suitable for non-destructive testing (NDT) of plastics, light metals, composites, and multi-materials. 020425ä

Condition: used, Year of construction: 2002, The Wenzel RS-Plus is a powerful CNC coordinate measuring machine for high-precision industrial measurements. Thanks to its robust construction and advanced metrology, it is ideal for quality control and manufacturing. This machine is used, but fully functional and tested. Specifications: Measuring range: Depends on model (details upon request) Iajlsv Nhwwshccqrst Accuracy: High-precision measurement results for industry and manufacturing Control: CNC-controlled for automated measuring processes Area of application: Quality control and production metrology Condition: Used, tested, and fully functional

Condition: ready for operation (used), Year of construction: 1998, Functionality: unexamined, CNC control for Wenzel Type WPC2000 including control cabinet and handheld unit Ielhccev Irygeqrsat

Condition: good (used), Year of construction: 2008, Functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 400 mm, compressed air connection: 4 bar, outer dimension length: 1,765 mm, outer dimension width: 1,700 mm, Wenzel Smart Gear - gear and 3D coordinate measuring machine The machine is in very good condition and fully functional. It has been regularly serviced and well looked after. Machine data: • Machine dimensions L=1765mm W=1700mm H=2232mm • Max. rotary table workpiece diameter = 5 to 270mm • Measuring accuracy gear testing in accordance with VDI/VDE2612/2613 Group II • Max. rotary table load = 20 daN • Travel paths X= 500mm Y=450mm Z=400mm • Scanning probe - Renishaw SP600M • 7x SP600 change plate for probe included • Module measuring range 0.4 - 10mm • Active air damping of the machine • Year of manufacture 2008 • Accessories such as driver, reference ball etc. as shown • Jaw chuck D=80mm with inside and outside jaws • 24 inch monitor, mouse, keyboard The following software modules are included: Gear cutting software: • TMain - program management • TStylus – Probe management • TCali – Probe calibration • TAmo – Calculated axis position determination • TGear – Spur gear measuring program • TGear – Head and root circle option • TWorm – Worm measuring program Ijlhccjvvudkoqreat 3D software • Metrosoft CM 3.8

Condition: good (used), Wenzel roughness and contour measuring station for crankshafts  Measuring plate made of hard stone length: 3670 mm width: 850 mm Flatness tolerance according to DIN 876/1 Nominal value 48 µm Actual value 32 µm Iajlhccsihilleqrot Ident No.: 14280 JFA unwinding trestles Further measuring plates in other sizes - new and used - can be found in our shop! International shipping costs on request!

Condition: ready for operation (used), Year of construction: 2005, Measuring dimensions X/Y/Z: 800mm/1000mm/700mm, max. workpiece weight: 800kg, measuring accuracy: 0.0005mm, repeatability: 0.002mm, measuring plate dimensions X/Y/Z: 1040mm/1780mm/250mm, rotary swivel head: Renishaw PH 10T Plus. The PH 10T was replaced in 2023. Documentation available. On-site inspection is possible. Iajlhcsu Ur Sqocqret

Condition: ready for operation (used), Year of construction: 2000, Functionality: fully functional, measuring range X-axis: 800 mm, measuring range Y-axis: 1,000 mm, measuring range Z-axis: 700 mm, No reserve price - guaranteed sale at the highest bid! TECHNICAL DETAILS Measuring range: 800 x 1,000 x 700 mm Limit of length measurement uncertainty: E₀ = 2.8 + L/250 µm Condition: newly painted, desk shape with new worktop and current color design Control and operating elements CNC control: WPC Controller table: 1 piece Hand control panel: HT 400 Touch system: Renishaw PH10 Probe: switching probe Renishaw TP 20 Iajlhcovupv Ejcqrst Reference sphere: 1 piece Software and PC system Software: WM | QUARTIS GEO for regular geometry applications (as of 2022-1) CAD interface: WM I QUARTIS STEP import interface (as of 2022-1) Software dongle: 1 x Metrokey PC system: WIN 10 Monitor: 24 ’’ TFT

Condition: ready for operation (used), Year of construction: 2004, operating hours: 12,000 h, Functionality: fully functional, machine/vehicle number: 044238, measuring range X-axis: 800 mm, measuring range Y-axis: 1,000 mm, measuring range Z-axis: 700 mm, 3D coordinate measuring machine Iolhccqsvmxywjrsat TECHNICAL DETAILS X-axis: 800 mm Y-axis: 1000 mm Z-axis: 700 mm Accuracy: 0.8 + L /450 Control: WPC2030 Software: WM, Quartis X3 FREEFORM Hand control: Wenzel HT400 with table and PC Probe head: PH10M Probe system type: TP20

Year of construction: 1987, Condition: defective spare-parts repository (used), x-travel 300 mm y-travel 440 mm Iajlheua Ixqeccqrst z-travel 180 mm weight of the machine ca. 0,3 t dimensions of the machine ca. 1*1*1,5 m No. 5104: Coordinate measuring machine / CMM - Hobbyist machine / spare parts carrier - WENZEL / NUMEREX, type 1318-10 Mnl Working area: 330 x 440 x 180 mm, Space requirement approx. 1 x 1 x 1.5 m Weight approx. 300 kg

Condition: used, Year of construction: 2000, table length 1160 mm table width 710 mm daylight 650 mm Control WENZEL ME 5007 total power requirement kW weight of the machine ca. 800 kg dimensions of the machine ca. m Islhccot Hw S Isqrsat 3-D-coordinate measuring machine with METROLOG II-Software

Condition: excellent (used), General information Manufacturer: Wenzel Type of machine: 97 call Technical data on request Optional as underfloor measuring machine The machine can be upgraded to customer specification with new software. Price: On request! Setup and commissioning possible! We can make you a detailed offer! Note: Our offer is aimed exclusively at professionals! (Changes and errors in the technical data, information Iaolhcjdyutwocqret and prices and subject to prior sale!)

Year of construction: 2003, Condition: ready for operation (used), X-travel: 2500mm, y-travel: 1000mm, z-travel: 1200mm, software: Metrosoft CM. Islhccsfxzyrjqroat

Condition: ready for operation (used), Year of construction: 1997, Functionality: fully functional, measuring range X-axis: 650 mm, measuring range Y-axis: 1,000 mm, measuring range Z-axis: 500 mm, No reserve price - guaranteed sale at the highest bid! TECHNICAL DETAILS Measuring range: 650 x 1,000 x 500 mm Limit of length measurement uncertainty: E₀ = 2.8 + L/250 µm Condition: newly painted, desk shape with new worktop and current color design Control and operating elements CNC control: WPC Controller table: 1 piece Hand control panel: HT 400 Iaslevupvlohccqrjt Touch system: Renishaw PH10 Probe: switching probe Renishaw TP 20 Reference sphere: 1 piece Software and PC system Software: WM | QUARTIS GEO for regular geometry applications (as of 2022-1) CAD interface: WM I QUARTIS STEP import interface (as of 2022-1) Software dongle: 1 x Metrokey PC system: WIN 10 Monitor: 24 ’’ TFT

Year of construction: 2000, Condition: used, x-travel 1000 mm y-travel 1600 mm z-travel 800 mm Control WENZEL WPC 2040/FW31.351 total power requirement kW weight of the machine ca. 5500 kg Iaolhcst Hw Nyscqrjt dimensions of the machine ca. m Coordinate measuring m/c, software QUARTIS R12/16, Renishaw PH10Mplus

Condition: excellent (used), Technical data Manufacturer: Wenzel Type: RS 1620 manual Measuring plate X = 6000 mm Ielhccqshzhq Hsrjat Y = 3000 mm 100 x 100 mm grid holes The machine can be modernized with new accessories according to the customer's requirements. Price: on request! Assembly and commissioning possible! We will be happy to provide you with a detailed offer. Note: Our offer is intended exclusively for professional customers. (Changes and errors in the technical data, specifications and prices and prices as well as subject to prior sale).

Condition: ready for operation (used), Year of construction: 2006, Working range X/Y: 1000mm/2200mm, accuracy: 0.8 + L/450µm, max. workpiece weight: 800kg, machine dimensions X/Y: approx. 3000mm/2800mm, weight: approx. 4000kg. Including Wenzel HT 400 hand control, computer with 2 TFT monitors and Kyocera laser printer. Without measuring probe. Documentation available. On-site inspection is possible. Ijlsu T Rhzjhccqreat

Year of construction: 2000, Condition: excellent (used), machine/vehicle number: 002689 / 002688, Technical data Manufacturer: Wenzel Type: RA1624 Triplex with underfloor Year of manufacture: 2000 Double pedestal CMM with additional underfloor measuring arm Serial number: 002689 / 002688 Measuring range X = 6500 mm Y = 1600 / 1600 mm Z = 2500 mm Touch probe Iolhcogm Tyijcqrjat Software: Metrosoft CM SP2 3 x Wenzel WPC 2010 Renishaw PHC10-2 Probe Head Controller 2 x Renishaw PHS heads with different probe lengths The machine can be modernized with new accessories according to customer requirements. Price: on request! Assembly and commissioning possible! We will be happy to provide you with a detailed offer. Note: Our offer is directed exclusively at specialist customers. (Changes and errors in the technical data, information and prices as well as and prices as well as subject to prior sale).

Year of construction: 1997, Condition: excellent (used), machine/vehicle number: 971696, Technical dataManufacturer: WenzelType: LH87 / CNCYear of construction: 1997Machine no. 971696Measuring rangeX-axis: 800mmY-axis: 1000mmZ-axis: 700mmTouch probePH10MTouch probeType: TP20Control panel: HT400Control: WPC 2010 The machine can be modernized with new accessories according to customer requirements.Price: on request!assembly and commissioning possible!we will be pleased to provide you with a detailed offer!note: our offer is directed exclusively at specialist customers!(subject to changes and errors in the technical data, specifications and prices as well as prior sale!) Ieled Sv D Nehccqrsat

Year of construction: 2004, Condition: excellent (used), Technical data Manufacturer: Wenzel Type: RSplus 1625 Year of construction: 2004 Measuring plate X: 6800 mm Y: 3200mm cast steel, with guide rails for measuring arms Ielhcefd Dr Eocqrjat Measuring arm 2 pieces RSplus height: approx. 3.30 m ; horizontal axis: approx. 2.90 m Measuring arm RENISHAW PHS1 measuring head (only 1x available, missing at the left measuring arm, kinematic mounting plate KM1 for connection/reception but available) ACR2 kit 8 pieces (4 l / 4 r), probe TP20 and styli - complete except 1 probe/probe) Additional as spare part: fixture kit ACR2, without measuring head/probe/probes Software Metrosoft with two Metrokey software licenses with installation data for software without processor/computer for evaluation The machine can be upgraded with new accessories according to customer requirements. Price: on request! Assembly and commissioning possible! We would be happy to provide you with a detailed offer! Please note: Our offer is directed exclusively to professional customers! (Changes and errors in the technical data, information and prices as well as prior sale reserved)
