Four Side Planer

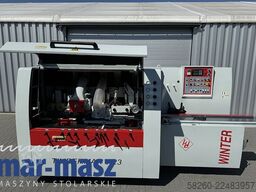

Winter Timbermax 5-23

Catalog number: 8060

TECHNICAL DATA
- max. width of workpiece: 230mm
- max. height of workpiece: 180mm
- number of spindles: 5
1) horizontal lower: 230mm, 7.5kW
2) vertical right: 180mm, 5.5kW
3) vertical left: 180mm, 5.5kW
4) horizontal upper: 230mm, 7.5kW
- 4 spindles with electric up/down adjustment from the control panel
5) horizontal lower: 230mm, 7.5kW
- all heads adjustable up/down, left/right
- spindle diameter: 40mm
– top:
- 6 feed rollers, toothed, including 2 double rollers
- 2 feed-out rollers, rubber
– bottom:
- feed roller, toothed, driven, with swivel mechanism in the lower table, in front of the first spindle
- 2 pneumatic side pressure rollers
- feed-out roller, metal, smooth
- all rollers with pneumatic pressure
- length of feed table: 2180mm
- table adjustable up/down
Bjdjzrf Uzepfx Amzolk
- central lubrication
- electric adjustment of planing thickness
- lifting motor approx. 1.1kW
- stepless feed speed control via frequency inverter
- feed motor: 3kW
- feed via Cardan shafts
- enclosed in a cabinet
- diameter of dust extraction nozzle: 5x150mm
- dimensions (L/W/H): 4100x1750x1900mm
- weight approx. 3800kg

ADVANTAGES
– with 5 heads
– ideal for wet and dry wood
– DTR documentation
– used machine, very good condition

Net price: 68900 PLN
Net price: 16405 EUR, depending on the exchange rate of 4.20 EUR
(Prices may vary due to significant exchange rate fluctuations)
