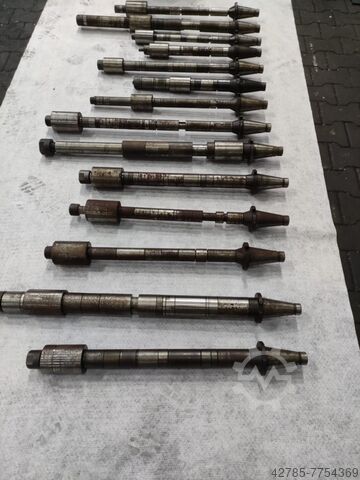

Milling tools

WMW HECKERT

Condition: ready for operation (used), Year of construction: 2002, travel distance X-axis: 750 mm, travel distance Y-axis: 750 mm, travel distance Z-axis: 700 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 426, total height: 3,300 mm, table width: 4,000 mm, overall weight: 15,000 kg, product length (max.): 4,850 mm, number of axes: 4, This 4-axis Starrag Heckert CWK500D was manufactured in 2002. It features an impressive X-axis travel of 750 mm, Y-axis travel of 750 mm, and Z-axis travel of 700 mm. The machine includes a robust pallet size of 500 × 500 mm and a maximum pallet load of 500 kg. If you are looking to get high-quality machining capabilities, consider the Starrag Heckert CWK500D horizontal machining centre we have for sale. Contact us for further details. • B-Axis: 360° continuous rotation (0.001° resolution), max speed 25 rpm; indexing time (90°) approx. 1.2 sec (rotary table completely overhauled by manufacturer FTW in 2022) • Rapid Traverse: 40 m/min • Pallet Size: 500 x 500 mm • Max Pallet Load (centered): 500 kg • Automatic Pallet Changer: 2 pallets with a pallet change time of approx. 9 sec • Tool Magazine (Chain Magazine): 80 tool positions • Max tool diameter: 160 mm (with free adjacent pockets) • Max tool diameter: 85 mm (with adjacent pockets occupied) • Max tool length: 400 mm • Max tool weight: 10 kg • Spindle taper: HSK63 • Spindle Speed: up to 15000 rpm • Power: up to 37 kW Rodpfx Asynlcrefcsp • Torque: up to 350 Nm • Internal coolant supply (IKZ): 50 bar • Coolant system: Belt filter

Condition: good (used), Year of construction: 2007, travel distance X-axis: 750 mm, travel distance Y-axis: 750 mm, travel distance Z-axis: 725 mm, CNC control Sinumerik 840D NC-rotary table B-axis automatic tool changer for 320 tools pallet changing device, 2 pallets 500 mm x 500mm coolant through spindle device IKZ (80 bar) chip conveyor coolant device Technische Daten / technical details: X-Weg längs / X-travel longitudinal 750 mm Y-Weg senkrecht / Y-travel vertical 750 mm Z-Weg quer / Z-travel cross 725 mm B-Achse / B-axis 360 ° Spindelaufnahme / spindle taper HSK 63A Drehzahlbereich Spindel / spindle speed 50-10000 Upm /rpm Werkzeugplätze / tool places in changer 320 Vorschub / infeed 60000 mm/min Eilgang / rapid feed 60 m/min Antriebsleistung Spindel 40/100% ED / drive capacity spindle 40/100%ED 37/24 kW Gewicht der Maschine ca. / weight ca. 15000 kg Rjdoq Ui Hqepfx Afcjp Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: used, Year of construction: 2008, travel distance X-axis: 650 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 680 mm, spindle speed (max.): 24,000 rpm, Order no. 5.3-745 1 used Horizontal Milling Center Heckert HEC 400D, built 2008 1 used Horizontal Milling Center Heckert HEC 400D, built 2008 CNC control Sinumerik 840D NC rotary table B-axis Magazine for 80 tools Pallet changing device, 2 pallets 400mm x 400mm Internal coolant supply IKZ chip conveyor Coolant device CNC control Sinumerik 840D NC-rotary table B-axis automatic tool changer for 80 tools pallet changing device, 2 pallets 400 mm x 400mm coolant through spindle device IKZ chip conveyor coolant device Rjdpfx Ajrairwjfcep Technische Daten / technical details: X-travel longitudinal 650 mm Y-travel vertical 650 mm Z-travel cross / Z-travel cross 680 mm B-axis / B-axis 360 ° Spindle taper HSK 63A Drehzahlbereich Spindel / spindle speed 24000 Upm /rpm Werkzeugplätze / tool places in changer 80 Gewicht der Maschine ca. / weight approx. 13000 kg Technical data, accessories and description of the machine are not binding - Technical data, accessories and description of the machine are not binding.

Condition: good (used), Year of construction: 2007, Ref. -No.: 10357 Manufacturer: STARRAG HECKERT Type: HEC 630 Athletic Year of construction: 2007 Type of control: CNC Steuerung Control: Sinumerik 840D Storage location: Halberstadt Country of origin: Schweiz X-Travel: 1200 mm Y-Travel: 950 mm Z-Travel: 1200 mm Work spindle drive power (25% ED): 67 kW Work spindle torque (25% ED): 1508 Nm Tool Taper: HSK-A100 Workpiece interference circle diameter: 1250 mm Tool Piece Magazine With: 80 Pcs./pcs. Rjdpfx Afjym Nafocsp Tool changer: Werkzeugkettenmagazin Max. Workpiece height: 1200 mm Feed Speeds X/Y/Z Axis: 60000 mm / min Feed Capacities X/Y/Z: 22/18/22 N Speed range - main spindle: 20 - 6000 RPM Numbers Of Pallets: 2 Max pallet load: 1500 kg Size Of Pallet: 800 x 630 mm pallet change time: 14 s Pallet clamping area (lxw): 800 x 630 mm Weight Of The Machine Ca.: 25 t

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 650 mm, controller model: Siemens 840 D, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel X-axis: 650 mm Travel Y-axis: 500 mm Travel Z-axis: 650 mm B-axis: 360,000 x 0.001 mm Pallet size: 400 x 500 mm Spindle speed: 50 – 10,000 rpm Tool holding system: SK 40 Number of tools in magazine: 60 Rapid traverse: 40 m/min Feed rate: 1 – 20,000 mm/min MACHINE DETAILS Rsdpsymw S Aofx Afcjp Control system: Siemens 840 D Power requirement: 65 kW

Condition: good (used), functionality: fully functional, Technical data (according to nameplate): • Manufacturer: Heckert Werkzeugmaschinen GmbH • Model: FU 315 • Year of manufacture: 1997 • Machine no.: 19019 • Temperature range: +5 to +35 °C • Total weight: approx. 3.1 t • Made in Germany Rsdpfx Aeymd Idofcsp Equipment / Features: • Universal milling head • Infinitely variable or widely graduated feeds (see diagram on the machine) • Coolant system • Electrical control cabinet (clearly arranged) • Digital display (see photos) • Heavy-duty machine construction • Very quiet operation

Condition: good (used), functionality: fully functional, Technical data (according to nameplate): Rodoymdxiepfx Afcep • Total weight: approx. 3.7 t • Rated power: 14.5 kW • Mains voltage: 380 V • Frequency: 50 Hz • Control/auxiliary voltage: 24 V • Rated current of machine: 32 A • Feed line protection: 63 A Equipment / Features: • Large, heavy-duty cross table • Mechanical feeds • Vertical milling head • Swiveling milling head (universal) • Separate control cabinet module • Classic control panel • Very stable cast iron construction

Condition: good (used), functionality: fully functional, Equipment & Features: • Universal milling head • Mechanical feeds • Digital position display Mitutoyo KA-200 (3 axes) • Solid cast iron construction • Classic, user-friendly controls • Electrical system and control by Schiffselektronik Rostock • Original Heckert nameplates available Technical Data (according to nameplate, excerpt): Rsdpfoymdwljx Afcjp • Mains voltage: 380 V • Frequency: 50 Hz • Rated power: approx. 2.2 kW • Feeds adjustable • Machine weight: approx. 3.2 t

Condition: good (used), Technical Data (according to nameplate): • Power type / Frequency: 3~ / 50 Hz • Rated voltage: 380 V • Control voltage: 220 V • Connected load: approx. 8 kW • Rated current of machine: approx. 19 A • Fuse protection: 50 A slow-blow Equipment / Features: • Universal milling head • Feeds in X, Y, and Z axes • Original control panel Rsdpfeymdu Rsx Afcep • Sturdy cross table • Coolant system • Very heavy-duty and durable construction • Ideal for steel, aluminum, and plastics

Condition: used, Year of construction: 1977, functionality: unexamined, Control type: conventional Axis travel: X: 1120 mm Redpfxswdivvo Afcep Y: 345 mm Z: 400 mm Vertical feeds: 5 - 250 mm/min Longitudinal and transverse feeds: 16 - 800 mm/min Table area: 400 x 1600 mm Speed range: 28 - 1400 rpm Tool holder: SK50 Total power requirement: 14.5 kW Machine weight approx.: 3.65 t Space requirement approx.: 2345 x 1950 x 2060 mm (LxWxH) External control cabinet with plug-in connections. Equipment: - 3-axis digital display - Pivoting control panel (suspended) The machine can be tested/demonstrated live on-site. All information is provided without guarantee. Subject to prior sale.
