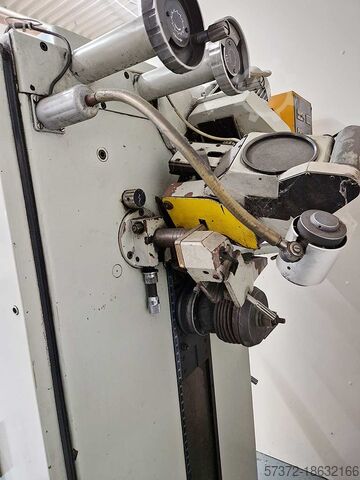

Saw-Blade Sharpening Machine

WMW WERKÖ SWSK 1450

Year of construction: 1994, condition: ready for operation (used), A total of four WMW/Werkö saw grinding machines are available. Saw blade diameter min./max.: 250mm/1450mm, grinding wheel diameter: 250mm, speed: 2500rpm, tooth pitch: 42mm, grinding spindle swivel range: +/-45°, machine dimensions X/Y/Z: approx. 850mm/1000mm/1800mm, weight: approx. 1100kg. Documentation available. On-site inspection is possible. Redpfsv Exthox Ad Ajt

Condition: used, Year of construction: 1996, Vollmer CHC 260 Year of manufacture: 1996 Redpfxjyuc Ife Ad Aet

Condition: used, Year of construction: 1997, Suitable for automatic grinding of the tooth geometry on chip and flank faces (front and back) of HM - tipped circular saw blades. All common tooth shapes can be finish-ground in one cycle (also trapezoidal flat tooth). Accessories: Total enclosure, Motorized chip and clearance angle adjustment Manual central lubrication Coolant grinding system, 1 arbor, 2 magnetic sawblade holders, 4 centering sleeves, 1 grinding wheel holder. Circular saw blade diameter: 80-810mm Circular Saw Bore Diameter: from 10 mm blade thickness: up to 5 mm Tooth pitch: 7-100mm rake angle: - 20° to +40° Rsdjyv Hq Uspfx Ad Ast clearance angle: 6° to 45° tooth height difference: any Bevel cut on the back of the tooth: up to 45 ° Working speed: up to 20 teeth / min. Bevel cut on the tooth face: up to 15° grinding path max.: 20 mm Grinding wheel bore diameter: 32 mm Grinding wheel diameter: 125 mm Connected load: 1.6kW (400V / 50Hz) Weight approx.: 650 kg Dimensions W x D x H =: 1860 x 1010 x 1970 mm colour: turquoise RAL 5018 / gray RAL 7035
