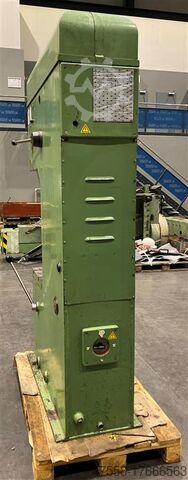

Single Column Press - Hydraulic

WMW ZEULENRODA PYE 10

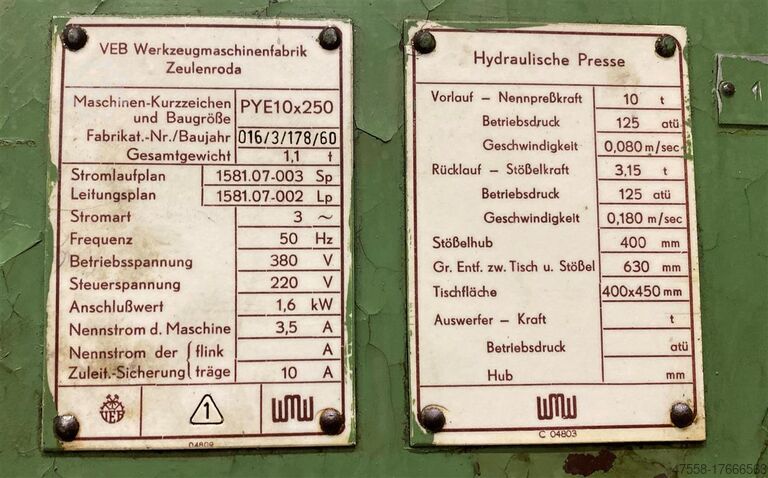

Condition: excellent (used), Year of construction: 1983, functionality: fully functional, pressing force: 10 t, stroke length: 400 mm, operating speed: 100 mm/s, reverse speed: 450 mm/s, table width: 500 mm, table length: 400 mm, ram plate width: 360 mm, ram plate length: 280 mm, clearance between the columns: 630 mm, total length: 1,300 mm, total width: 1,000 mm, total height: 2,350 mm, overall weight: 1,300 kg, Equipment: documentation/manual, PYE 10 S/1 hydraulic press with ejector. Year of manufacture: 1983. Manufacturer: VEB Wema Zeulenroda (Germany). Specifications: Maximum pressing force: 10 tons. Working pressure: 16 MPa. Pedowb Dhnjpfx Airegt Upper table: 360 x 280 mm. Lower table: 500 x 400 mm. Daylight: 630 mm. Cylinder stroke: 400 mm. Downward speed: 100 mm/sec. Upward speed: 450 mm/sec. Maximum force of the lower ejector: 4 tons. Stroke of the lower ejector: 160 mm. Power consumption: 5.2 kW. Weight: 1300 kg. Height: 2350 mm, Length: 1300 mm, Width: 1000 mm. Technical condition of the machine: very good. The machine has undergone a major overhaul.

Condition: used, Technical details: pressure: 25 t stroke: 500 mm daylight dimension : table/slide up: 800 mm throat: 360 mm ram stroke: 500 mm ram speed - forward: 0,100 m/s ram speed - reverse: 0,45 m/s Table dimensions: 630 x 500 x 75 mm passage inside table: Ø 180 mm surface area of ram: 450 x 360 mm mortise hole in ram: Ø 32 mm height over floor: 710 mm total power requirement: 8,75 kW weight of the machine ca.: 2,2 t dimension machine xH: 1,7 x 1,1 x 2,95 m Operation via two-hand control panel. (and one-hand operation) Psdpfx Asvc Awxoiregt *

Condition: good (used), Maximum pressing force 10 tons. Working pressure 16 MPa Cylinder stroke 400 mm Down speed 100mm/sec Speed up to 450 mm/sec Power requirement 5.2 kW Weight 1.3 tons Psdezvfqkjpfx Airogt Clamping table changed! Not an original table!

Condition: used, Year of construction: 1979, pressure 10 t throat 250 mm stroke 400 mm feed down 100 mm/sec feed up 450 mm/sec max. distance table - ram 630 mm total power requirement 5,2 kW weight of the machine ca. 1,3 t Pgodewbizyspfx Airot

Year of construction: 1975, condition: used, max. wheel diameter 280 mm max. number of teeth 100 max. module 6 Pgsdpfx Ajt Hw Dkeiret min. module 1 total power requirement 6 kW weight of the machine ca. 2500 kg dimensions of the machine ca. m

Condition: used, pressure 10 t stroke 400 mm feed down 200 mm/sec Pgodpfx Aod R Szusirst feed up 450 mm/sec max. distance table - ram 630 mm total power requirement 8,5 kW weight of the machine ca. 1,3 t dimensions of the machine ca. m

Condition: as good as new (ex-display), Year of construction: 2018, machine/vehicle number: DF0151 - Rev.00, pressing force: 110 t, pressure:110 t passage width:800 mm Pgedpfodxrqwjx Airot stroke:500 mm Approx. weight (w/o operational materials):5 t Measurements L x W x H:ca. 1950 x 1510 x 3145 mm Return Capacity:11 t Engine Output:20 kW Cylinder diameter:200 mm Max Working height:700 mm Approaching Speed max. :195 mm/sec Pressure Speed:1 - 15 mm/sec. Return Speed:5 - 140 mm/sec Travel:500 mm Ram plate:800 x 600 mm Thickness of ram plaet:6 Zoll Table size:800 x 700 mm Table height above ground level (approx.):900 mm Oil Tank Capacity:400 l Program Memory:200 prgms Monitor Siemens:10 Zoll Siemens Control System:S7 1200 Lightcurtains by Schmersal:700 mm Speed controlled via proportional valve for speeds between 5 to 195 mm/sec on approach, 1 to 15 mm/sec during pressure phase and 5 to 140 mm/sec during return. HMI - pressure regulation for capacity of hydraulic cylinder from 20 to 110 tons Siemens remote access for maintenance purposes Motor with energy efficiency level IE3 according to CE

Condition: used, Year of construction: 1980, Technical details: Pressure: 160 t stroke: 20-160 mm throat: 400 mm ram adjustment: 120 mm no. of strokes: 71 Hub/min daylight dimension : table/slide up: 720 (bei Hub 160mm) mm daylight dimension : table/slide low: 560 (bei Hub 160mm) mm ram surface area: 900 x 660 mm distance between columns: 500 x 450 mm table surface area: LxBxØ: 1200 x 750 x 100 mm total power requirement: ca. 23.0 kW weight of the machine ca.: ca. 15,0 t dimension machine xH: 2,7 x 1,5 x 3,45 m dimensions electric cabinet LxWxH: 2,0 x 0,65 x 2,15 m Operation via control panel/operator stand/foot control and hand-held control unit The press can be offered with two options. Pgjdpfxou N A U Io Airot 1st option: Sold as is, not connected, not complete, not functional. 2nd option: The baler will be refurbished, all parts will be exchanged, replaced and puddled. The press will be set up again. For inquiries about this press, please select your offer option! in progress. *

Condition: new, Year of construction: 2025, functionality: fully functional, pressing force: 40 t, stroke length: 250 mm, table width: 700 mm, table length: 450 mm, throat depth: 230 mm, installation height: 400 mm, NEW EXNER C-frame press EEX SLL 40 Standard Line LIGHT Year of manufacture: 2025 Pressing force: 400 kN Pjdpew Nx Nhjfx Airsgt Installation height: 400/450 mm Stroke: 250 mm Table (width): 700 mm Table (depth): 450 mm Throat depth: 230 mm

Condition: good (used), Year of construction: 1984, machine/vehicle number: 054-008-212, Offer 25272 Technical data: - Max. pressing force: 25 t - Max. ram stroke: 500 mm - Stroke speed: 0 – 2.4 m/min - Return speed: 0 – 12 m/min - Installation height: 800 mm - Throat depth to ram center: 360 mm - Ram clamping area: 440 x 360 mm - Ram mounting shank: 40 mm Pgjdpfxsy Ewtrs Airet - Table size: 630 x 500 mm - Table bore/opening: 180 mm - Electric foot switch - Two-hand control panel - Drive: 400 V / 8.75 kW - Required space approx.: W 800 x H 2750 x D 1150 mm - Weight approx.: 2000 kg
