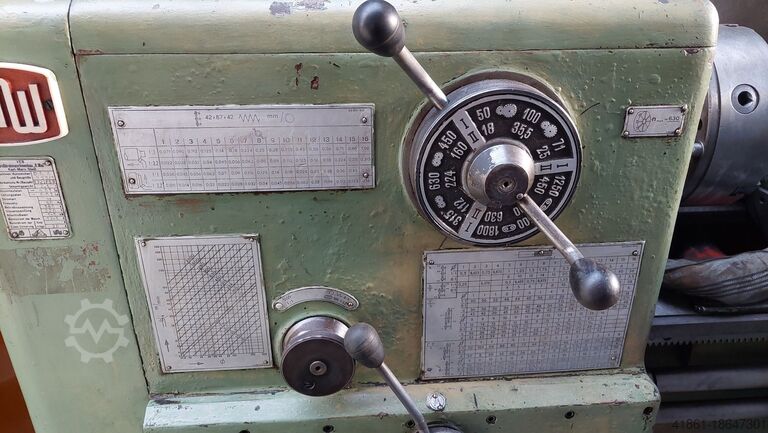

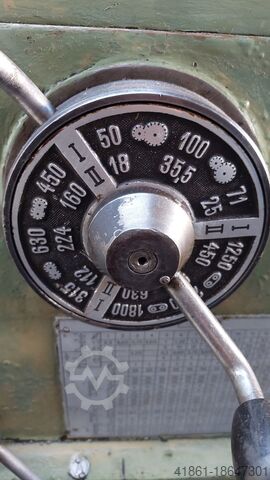

Lead/traction spindle lathe

WMW DLZ 355 x 1000

Condition: used, Technical details: turning length: 630 mm swing diameter over slide rest: Hinterdrehschlitten: 250 mm center height over bed: 270 mm centre distance: 900 mm spindle bore: 26 mm range of revolutions per minute - continous: 1,8 - 450 U/min return movement speed: 23 / 32 / 46 / 370 / 510 / 740 U/min cross feed: 0,07 - 1,11 / 36 step mm/U longitudinal feeds:: 0,063 - 0,63 / 12 step mm/U tailstock quill taper MT: 5 quill travel: 250 mm Total power requirement: 7,0 kW machine weight approx.: 3,9 t dimension machine xH: 3,2 x 1,2 x 1,8 m Application: Mainly for relief turning and relief grinding of cutting tools (especially hobs with and without thread pitch). Back turning and relief grinding is possible from the front, the back and in the axial direction of the machine. Main drive via 8-stage manual gearbox. Feed gearbox is designed as a 12-stage manual gearbox. Swiveling range of the rear slide = 360deg. Swiveling range of the cross slide = 360degrees Equipment: lathe chuck driving disc Ø 210 mm with fixed tip fixed tip in tailstock with 4 pieces machine feet 3 jaw chuck Ø 250 mm i.D. * Lrodjvbh N Repfx Akyen
