Laser Cladding Robotic system

Yaskawa/Laser Cladding GP50/YRC1000

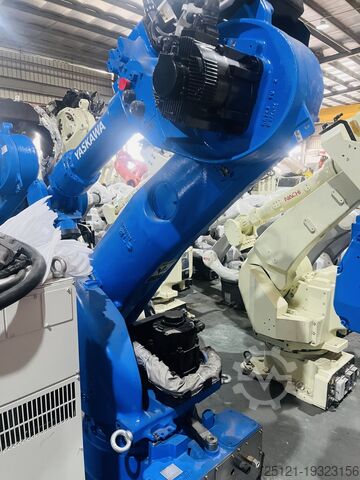

-Yaskawa GP50 robot with YRC1000 Controller
-Laserline LDF6000-60 power unit;
•Maximum continuous wave power output 6000W
• Emitted light wavelength range 900-1070nm
• Air to water with 6kW cooling capacity cooling with the help of cooler
• 600μm in diameter and 20m in length optical fiber

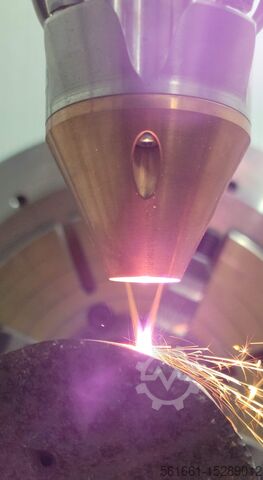

• Annular slit laser coating nozzle water-cooled working optics OTZ-5
• COAX-8 type. The optics specified has a zoom mechanism.
• Focus point from 2.28 mm to 7.32 Allows continuous change to mm
• CMOS attached to optics for process monitoring camera
• Water-cooled side panel that can be installed on OTZ-5 coating nozzle

-PF2/2 Power Feeder;
•Electronic control
• Remote control with robot controller
• 2 chambers with a capacity of 5 liters
• Heater

-Slider;
• For Y-axis movement of the robot group
Provides linear movement suitable for the process.
• 1x Yaskawa Servo Motor,
• 1 x Linear (6m), Rack and Pinion
Pedpjrwwzyofx Agqerd
• Automatically by the carrier robot will be checked

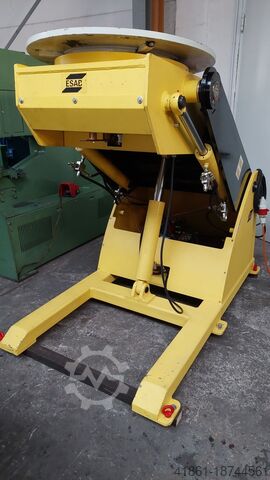

-Two Axis Positioner;
• Max. 5,000 kg carrying capacity,
• Rotation Axis Servo with Yaskawa Robot
and Synchronous motion,
• Tilt Axis Servo Motor index control
• Movement Range of Tilt Axis +/- 90°,
• Rotation Axis Movement Range +/-360°
• Max. Product diameter 800mmand max. Product weight is 8 tons.
• Positioner as single axis support and hydraulic tailstock when used with carrying capacity max. 8 tone
• Positioner can be used as two axes If desired, the carrying capacity is max. 3 is the tone

-5T Tailstock;
• Max. 5,000 kg carrying capacity
• Hydraulic

-Two Axis Positioner 5T Support;
• 4 m long for cylinder supports a rail base
• 1 5 ton roller support
• Different sizes from 200 mm to 800 mm Suitable and adjustable for diameters.
• Maximum Load 5,000 kg
