Industrial robot

Yaskawa

Condition: used, Year of construction: 2006, total height: 1,700 mm, total width: 1,900 mm, total length: 2,300 mm, Empty weight: 1.120 kg - Year: 2006 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: S66B18-1-3 - Number of axes [pcs]: 6 - Reach [mm]: 2651 - Load capacity [kg]: 100 - Control: CNC - Transport dimensions: 2300mm x 1900mm x 1700mm (l x w x h) - Transport weight [kg]: 1120kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum Ibjdpfsyic Ifex Akzjb

Condition: good (used), Year of construction: 2003, Yaskawa Motoman YR-SV3-J30 Industrial Robot Arm – 6-axis, 3 kg – without controller For sale: a used Yaskawa Motoman YR-SV3-J30 compact, six-axis industrial robot arm. Iedsz Ah Tuepfx Akzebb Manufacturer: Yaskawa Electric Corporation / Motoman Model: YR-SV3-J30 Design: Articulated industrial robot Number of controlled axes: 6 Maximum payload: 3 kg Maximum horizontal reach: 677 mm Repeatability: ±0.03 mm Maximum axis speeds: S-axis: 210°/s L-axis: 170°/s U-axis: 225°/s R-axis: 300°/s B-axis: 300°/s T-axis: 420°/s Mounting options: Floor, inclined surface, or suspended (ceiling) Country of manufacture: Japan The robot arm is offered without a control unit or operator panel. Commissioning requires a suitable, robot-compatible controller and professional integration.

Condition: good (used), Year of construction: 2005, Yaskawa Motoman YR-HP3L-A00 3kg 6-axis industrial robot arm with SCHUNK PGN 64-1 gripper for sale (controller not included) For sale: a used Yaskawa Motoman YR-HP3L-A00 6-axis industrial robot arm equipped with a SCHUNK PGN 64-1 pneumatic parallel gripper; controller not included. Manufacturer: Yaskawa Electric Corporation / Motoman Model: YR-HP3L-A00 Design: Articulated industrial robot Number of controlled axes: 6 Isdpfx Aoz Ahviskzsbb Maximum payload: 3 kg Maximum horizontal reach: 859 mm Maximum vertical reach: 1469 mm Repeatability: ±0.04 mm Robot arm weight: 49 kg Compatible control system: Yaskawa Motoman NX100 Manufacturing date: April 2005 Place of manufacture: Japan SCHUNK PGN 64-1 gripper: Design: Two-finger pneumatic parallel gripper Manufacturer ID: 371090 Stroke per finger: 6 mm Total gripping stroke: 12 mm Closing force: 220 N Opening force: 255 N Nominal operating pressure: 6 bar Permissible operating pressure: 2–8 bar Repeatability: 0.01 mm Weight: 0.27 kg Maximum workpiece weight recommended by manufacturer: 1.25 kg Maximum permissible ambient temperature: 90 °C Protection class: IP40 Applications: Gripping and moving small parts Pick-and-place operations Machine tending Assembly Dispensing and sorting Packaging tasks The robot arm's maximum payload of 3 kg includes the weight of the wrist-mounted gripper and the custom gripper fingers. The robot is sold without a control unit or teach pendant. Commissioning requires a compatible Yaskawa Motoman NX100 control system, as well as professional installation and programming. Used equipment, in the condition shown in the photos.

Condition: ready for operation (used), Yaskawa CIMR-F7C4090 frequency converter SN:J00191129500002, used, normal signs of wear, 100% functional, scope of delivery as per photos, ATTENTION: Please enquire for charges for packing and transport separately! ATTENTION: Please enquire for charges for packing and transport separately! Ibsdpfsz Adpfex Akzsb

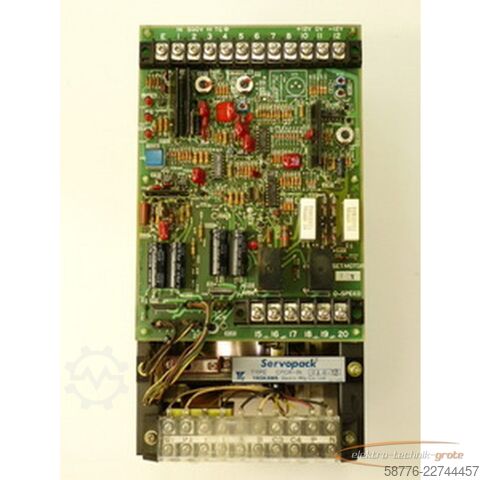

Condition: ready for operation (used), Yaskawa CPCR-IN 01B-Y2 Motor Controller, used, normal signs of use, 100% functional Iodpsz Adpljfx Akzobb

Condition: good (used), Year of construction: 2013, 1 used robotic welding system Manufacturer: Yaskawa/Motoman Year of manufacture: 2013 With 2 robots (load capacity: 1 x 165 kg, 1 x 50 kg) Each with 1 x WIG AC and DC welding system from EWM, 1 x spot welding tongs from Dalex, and 2 swiveling fixture systems Year of manufacture: 2013 Suitable for welding housings made of steel, stainless steel or aluminum Technical specifications Robotic welding system – Specifications / Equipment Robotic welding system Dimensions W x D x H: 16,000 x 6,000 x 2,500 mm - Control system S7 for fixture Double welding cell with 2 maintenance doors and 2 loading stations - Opaque enclosure Robots / Positioners 2 Motoman 6-axis welding robots 1 x 50 kg version 1 x 165 kg version - Extended design 2 x bases 1 x control unit with operator panel DX - Master - Slave 1 x floor-mounted chassis with 2 parking stations 2 stations - rotary tables with integrated pneumatics for "clamp on" function Centrally programmable in sync via 1 robot control unit Media feedthrough for compressed air and electrical signals in the positioner Design and manufacture of a base frame for part support Welding and clamping table S 4 3,000 x 1,500 mm with tool set 2 Digital I/O card for welding equipment EWM WIG welding system Tetrix 422 DC - RC Article no.: 520000050019 For automated and robotic applications Inverter DC welding unit Standard interfaces for automation (Start/Stop, pilot voltage, current flow), optional interfaces TETRIX RINTX11, industrial bus interface TETRIX BUSINTX11, documentation interface PCINT X10 (+ software Q-DOC 9000), and monitoring and documentation system WELDQAS Controllable parameters with interfaces: 256 jobs (welding tasks) with 16 programs each in program mode, as well as wire speed, correction of arc length and arc dynamics via pilot voltages, etc. Connection options: Remote control, optional interfaces for automation, documentation and PC connection Output 5 - 420 amps 420 amps 60% duty cycle - 40 °C 360 amps 100% duty cycle - 40 °C Power supply 400 volts (-25% / +20%) Dimensions 654 x 576 x 374 mm Additional cost for AC/DC version – 1 unit EWM WIG cold wire feeder Tetrix Drive ROB Article no.: 520000040018 Quantity: 2 units Lightweight, compact wire feeder for mounting on a robot or fixture Iedpfx Asz Aac Uokzsbb 4-roller drive Connection for water cooling Control with digital incremental encoder Push-pull capable Separate button for wire retraction, gas test and wire threading Parameter setting and storage centrally via welding system control unit Wire speed 0.1 to 5 m/min Wire feed steps 0.01 m/min Weight 6.5 kg Dimensions 345 x 230 x 250 mm Left-opening design ABITIG WH torch system Alternating neck technology Push-pull drive for precise wire feed Water-cooled Output 400 amps Torch holder and changing station with pneumatic locking Design and manufacture of a part support for aluminum rear panel Resistance welding equipment / other components Resistance welding equipment for robot, consisting of - Medium frequency inverter power source - Transformer with 250 kVA rated power - X-welding tongs High-performance water chiller Design and engineering Documentation such as machine design and parts lists in a simple form in German CE declaration Welding fume extraction system with piping

Year of construction: 2000, condition: defective spare-parts repository (used), Yaskawa Motoman UP130 6-axis robot with Motoman Xrc control Robot: Motoman YR-UP130-A00 Hand controller :Yasnac Mrc Year of construction: 2000 (6th month) Robot controls: Motoman Xrc ERCS UP130-RE00 Hand control: Yasnac Mrc Year of construction: 2001 - Axis: 6 - Load capacity: 130 kg - Arm extension: 2650 mm - Repeatability: 0.2 mm - Robot weight: 1300 kg - controller Xrc - cables, plugs, plugs Structure: vertically articulated type Axis types: S-axis 130 ° / s (2.27 rad / s) Ijdpsfhkfiefx Akzobb L-axis 130 ° / s (2.27 rad / s) U-axis 130 ° / s (2.27 rad / s) R axis 215 ° / s (3.75 rad / s) B-axis 180 ° / s (3, 14 rad / s) T-axis 300 ° / s (5.24 rad / s) Movement areas. S axis 180 ° L axis + 76 ° - 60 ° U axis + 240 ° - 130 ° R axis 360 ° B axis 130 ° T-axis 360 ° Purchase, Acquisition, asset management of industrial equipment and machinery. Wide Range of Used Machinery, Industrial Equipment

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, load capacity: 3 kg, arm reach: 703 mm, controller manufacturer: Motoman, controller model: NX100, type of input current: three-phase, Equipment: documentation/manual, Industrial robot Yaskawa Motoman YR-HP3 6-axis robot with NX100 controller for sale in good condition industrial robot: Yaskawa Motoman YR-HP3 + NX 100 control cabinet year of manufacture: 2005.06 Payload: 3 kg number of axes: 6 reach: 703mm robot weight: 45kg Repeatability 0.03 mm structure: articulated movement speed: J1: 210 °/s (3.67 rad/s) J2: 180 °/s (3.14 rad/s) J3: 225 °/s (3.93 rad/s) Iodpfev Ig Hnex Akzebb J4: 375 °/s (6.54 rad/s) J5 375 °/s (6.54 rad/s) J6 500 °/s (8.73 rad/s) controller: Motoman NX100 ERCS-HP3-AE00 year of manufacture: 2005.06 power supply: on request, automatic paint spray gun Walther Pilot WA200 can be applied to the robot with aluminum frame, glazed cabin, external control, safety light gate If you need more information. We are here to help! Please contact us using the contact form or give us a call Your ad has been automatically translated. Translation errors are possible

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, overall weight: 35 kg, load capacity: 3 kg, arm reach: 677 mm, controller manufacturer: Motoman XRC, repeat accuracy: 0.03 mm, For sale in excellent condition industrial robot Yaskawa Motoman YR-SV3 6-axis painting robot with XRC Mini controller. Motoman YR-HP3 Lightweight design, 35kg , 3kg payload and 677mm reach. The rotation range is 360°, making it versatile for various workflows robot: Yaskawa Motoman YR-SV3-J30 year of manufacture: 2003.03 controller: Motoman XRC ERCS-SV3XL-RE00 Ijdpfx Asv I Uknskzjbb year of manufacture: 2004.101 Payload: 3 kg number of axes: 6 reach: 703mm robot weight: 45kg Repeatability 0.03 mm structure: articulated Robit Movement range: J1- ±170° J2 +150° - 45° J3 +190° - 70° J4 ±180° J5 ±135° J6 ±350° If you need more information. We are here to help! Please contact us using the contact form or give us a call Your ad has been automatically translated. Translation errors are possible.

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, overall weight: 285 kg, load capacity: 6 kg, arm reach: 1,915 mm, pivoting range: 360 °, controller manufacturer: Yaskawa Motoman, controller model: NX100, input voltage: 400 V, type of input current: three-phase, For sale in excellent condition industrial robot Yaskawa Motoman YR-HP20 6-axis robot with NX100 controller robot model: Motoman YR-HP20-B10 Stable design, 285 kg, 6 kg load capacity and 1915 mm arm reach. The rotation range is 360°, making it versatile for various work processes Robot, control unit, cable, teaching panel, operating instructions robot: Yaskawa Motoman YR-HP20-B10 Ibedeyhxc Aspfx Akzob year of manufacture: 2008.08 load capacity: 6kg repeatability: 0.06 mm Serial number: SBM254-1-3 controller: MOTOMAN NX100 ERCS-HP20-AE00 year of manufacture: 2009.02 voltage: 400v 50Hz Robot Range of movement: J1: ±180° J2: +155° - 110° J3: +255° - 165° J4: ±200° J5: +230° - 150° J6: ±360° Speed ​​of movement: J1: 170 °/s (2.97 rad/s) J2: 170 °/s (2.97 rad/s) J3: 175 °/s (3.05 rad/s) J4: 355 °/s (6.2 rad/s) J5: 345 °/s (6.02 rad/s) J6: 525 °/s (9.16 rad/s)
