MAGAZINE LOADER, magazine loading system, etc

YJ LINK AMB-CE u.a.

MAGAZINE LOADER, magazine loading system, magazine loader, shuttle magazine unloader, magazine feeder, magazine unloader, connecting conveyor, magazine loading system for large circuit boards, destacker:

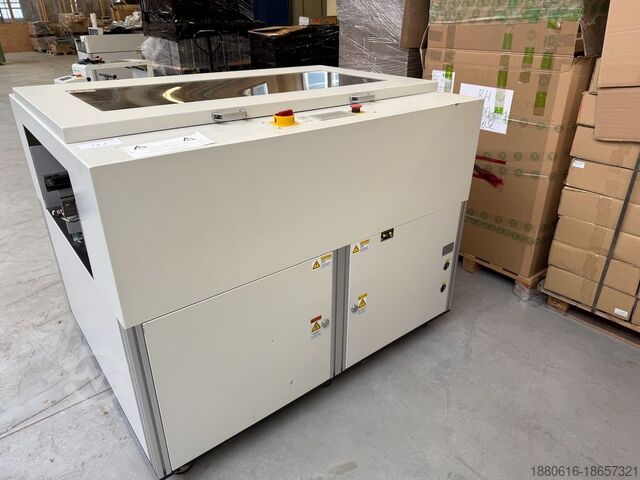

YJ LINK ALD-CE SINGLE MAGAZINE LOADER
Working height: 950 +/-20 mm
Working width: 250 - 510 mm
Size: 1400 x 1420 x 1830 mm (WxDxH)

(2x) YJ LINK magazine loading system for large circuit boards
Size: 1500 x 2850 x 1830 mm (WxDxH)

YJ LINK ALD-CE magazine loader
This device is located at the beginning of the SMT line. It transfers printed circuit boards (PCBs) stacked in a magazine rack to the downstream machine one at a time using a pneumatic pusher.
Touch screen (control panel)
Controlled by PLC (Programmable Logic Controller)
SMEMA interface

YJ LINK AUD-CE Shuttle Magazine Unloader
Shuttle Magazine Unloader
Located at the end of the SMT line, this device consists of a combination of a single shuttle and a double lifter. It stacks printed circuit boards (PCBs) one at a time into an empty magazine rack using a pneumatic pusher mounted on the single shuttle.
LED tower lamp (with buzzer)
Touch screen (control panel)
Controlled by PLC
SMEMA interface
Integrated single shuttle conveyor

YJ LINK ADL-CE Magazine Feeder
The YJ LINK ADL-CE is an automatic magazine feeder used in SMT production lines to efficiently load printed circuit boards (PCBs) into magazines.

YJ LINK AMB-CE Magazine Unloader
YJ LINK AMB-CE is an automatic magazine unloader used in surface mount technology (SMT) to efficiently unload printed circuit boards (PCBs) from machines and stack them into magazine racks

YJ LINK ACC-CE Connecting Conveyor
Size: 1500 x 610 x 950mm (WxDxH)

YJ LINK AMB-CE Magazine Unloader
YJ LINK AMB-CE is an automatic magazine unloader used in surface mount technology (SMT) to efficiently unload printed circuit boards (PCBs) from machines and stack them into magazine racks

YJ LINK ADL-R90 Destacker
Destacker
￭ LED tower signal light (with buzzer)
￭ Touch screen (operator panel)
￭ Controlled by PLC
￭ SMEMA interface
￭ 40 pcs stacking capacity at 1kg
￭ Safety light barrier on the screw
￭ Automatic width adjustment
￭ Double plate structure
Transport height: 950mm ± 20mm
Color: EX8816(S)-SR-WH020 (KCC)
Gsdpfx Afov Hpblepekc
Conveying direction: Left to right / Right to left
Fixed rail: Front / Back
PCB edge: 3mm
PCB thickness: 1.0mm ~ 2.0mm
Conveying speed: 200mm/s
Conveyor belt: Antistatic 10¹⁰ ~ 10¹², temperature: 70˚C
Air supply: 0.5Mpa (5 bar)
Air consumption: 4 ℓ/min
Power consumption: 430W
Power supply: 230V / 50~60Hz, 1 phase

The listing was translated automatically. Translation errors are possible.
