Scanningprobe

Zeiss

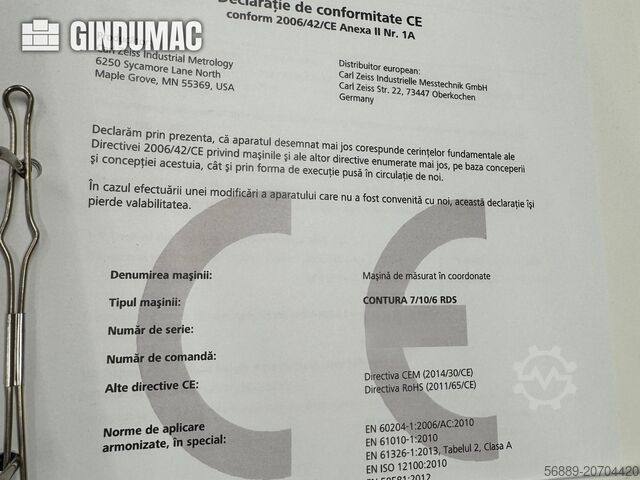

Condition: ready for operation (used), Year of construction: 2019, total height: 2,797 mm, overall weight: 1,570 kg, This 3-axis ZEISS Contura 7/10/6 RDS was manufactured in 2019 and features a robust motorized CNC drive system with a maximum vector speed of 465 mm/s. It includes the ZEISS RDS-C articulating head and VAST XXT TL3 sensor, capable of scanning speeds up to 150 points/second. Ideal for precise measurements with a maximum workpiece weight of 730 kg. Consider the opportunity to buy this ZEISS Contura 7/10/6 RDS CMM machine. Contact us for more information about this machine. Additional information • Maximum workpiece size: approx. 1344 x 910 x 716 mm • Maximum workpiece weight: 730 kg • Table height: 850 mm • Equipped with vibration damping system • Sensor System: • Articulating head: tilt ±180°, rotation increments 2.5° • Scanning speed: up to 150 points/second • Max. stylus length: 150 mm • Max. stylus weight: 15 g • Min. stylus tip diameter: 0.3 mm • Accuracy (per ISO 10360 standards): Rsdex D Ngfepfx Afcep • Length measurement error (E₀): 1.7 + L/350 µm (at 18–22°C) • Scanning error (THP): 2.7 µm • Form measurement error (RONt): 1.7 µm • Repeatability (R₀): 1.2 µm • Controller: ZEISS C99L • Software: ZEISS CALYPSO, ZEISS GEAR PRO, ZEISS HOLOS • Control mode: Motorized / CNC • Interface: Ethernet, USB • Performance: • Drive system: Motorized CNC • Travel speed (axes): 0–70 mm/s • Max. vector speed: 465 mm/s • Max. acceleration: 1.85 m/s² • Scanning speed: up to 125 mm/s • Utilities: • Power supply: 100–240V AC (±10%), 50–60 Hz • Max. power consumption: 800 VA • Typical power usage: 200 W • Compressed air: 6–8 bar, pre-cleaned, dry (ISO 8573-1 Class 4) • Air consumption: max. 120 Nl/min • Environmental Conditions: • Operating temperature: 18°C–22°C • Relative humidity: 30–60% (non-condensing) • Compliance & Certifications: • Conforms to EC Machine Directive 2006/42/EC • EMC Directive 2014/30/EU • Quality management: ISO 9001:2008 • Environmental management: ISO 14001:2004 • Accredited ISO / IEC 17025:2005 Dimensions Machine Depth 1975 mm

Condition: ready for operation (used), Joystick box for Zeiss C99 controllers Rsdofh Dpmjpfx Afcop Box without speed override €750,--

Year of construction: 2022, condition: ready for operation (used), Optical measurement machine manufactured in 2022. This ZEISS GOM ATOS 5 features a scanning principle based on the Triple Scan Principle and utilizes LED structured blue light for precise measurements. If you are looking to get high-quality optical measurement capabilities, consider the ZEISS GOM ATOS 5 machine we have for sale. Contact us for further details. • ZEISS ATOS Q – Optical 3D Measuring System • System type: Industrial structured-light 3D scanner • Measuring principle: Fringe projection / Triple Scan technology • Light source: LED with Blue Light Equalizer • Laser pointer for distance adjustment • Cameras: 2 × 8 megapixel CMOS • Camera resolution: 3357 × 2456 pixels • Measuring fields included: • 350 × 260 mm • 170 × 130 mm • Sensor dimensions: approx. 325 × 240 × 90 mm • Sensor weight: approx. 4 kg • Robust industrial housing • Fiber-optic sensor cable connection Rodpeymmq Uofx Afcsp • Calibration objects with DAkkS certificate • Acceptance test according to VDI/VDE 2634 Sheet 3 • Traceable acceptance certificate • Mobile controller: Converter box with image processing card (fiber optic to Thunderbolt) • External power supply • Workstation (Laptop 7760 Mobile): Intel 2.6 GHz Octa-Core CPU • 64 GB RAM • NVIDIA Quadro graphics card • 17" display • 1 TB SSD • External USB backup drive • WiFi / LAN / USB 3.2 / Thunderbolt • Operating system: Windows 10 (64-bit) • Software: ZEISS Quality Suite • ATOS sensor driver • GOM Inspect • CAD import formats: IGES, STEP, VDA, JT, STL, PLY • Export formats: STL, G3D

Condition: used, 3D Coordinate Measuring Machine ZEISS NUMEREX - Not Functional Granite Measuring Table, Granite Surface Plate, Measuring Table Model No. 3648-18, Serial No. X-1019, Year of Manufacture approx. 1986 Measuring Range X = approx. 1250 mm, Y = approx. 900 mm, Z = approx. 400 mm Measuring Plate L x W 1525 x 1435 mm Usable Surface 1525 x 1100 mm Plate Thickness 305 mm Clearance Width in the Portal 1100 mm Probe Mount Ø 9.5 mm Compressed Air Connection 6 bar Power Supply 230 Volt, 50 Hz Rsdpfx Asfy U Ewefcop - Granite plate with steel inserts with internal threads - Axis adjustment with pneumatic slide guide for X, Y, and Z axis - Plate mounted on base frame with 5 leveling feet, 3 support plates for the feet - Computer and software missing (not available and not included) → not functional! Space required for the measuring machine L x W x H 1600 x 1850 x 2200 mm Machine weight approx. 2.8 tons Plate is damaged on one side – see photo, otherwise in good condition

Condition: excellent (used), Passameter Rjdpfx Afsylkkvocsp Manufacturer: Zeiss (108150) Measuring range: 75 - 100 mm Complete with 2 center stops and pin spanner

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 153888, measuring range X-axis: 400 mm, measuring range Y-axis: 400 mm, measuring range Z-axis: 400 mm, workpiece weight (max.): 20 kg, total height: 1,770 mm, type of input current: DC, total width: 1,351 mm, total length: 1,055 mm, year of last overhaul: 2022, ambient temperature (max.): 35 °C, ambient temperature (min.): 17 °C, Equipment: lighting, For sale: Optical-Tactile Measuring Machine The device is in excellent condition and has been serviced regularly and professionally. Calibration certificates are available. Technical data: Measuring range: 400 mm x 400 mm x 400 mm Year of manufacture: 2011 Sensor technology: Optical: ZEISS Discovery zoom lens Tactile: VAST XXT probing system Software: ZEISS CALYPSO Additional software: CALYPSO Freeform Surface BasLic; dongle-based basic license for the current software version Accessories: • Computer, mouse, keyboard, monitor • Smooth calibration sphere (for tactile probe) • Matte calibration sphere (for white light interferometer) • Calibration standard – optical • Calibration standard – tactile • 3 probes: reference probe, 3x50, 1x20 with 30 mm extension • DAkkS calibrated in 2022 • Software: Calypso 2019 dongle license • Tactile probe head • Optics • White light interferometer • 3-position probe change rack • Operating manual • Additional software: CALYPSO freeform surface, BasLic, dongle-based basic license for the current software version Transport and loading can be organized on request, at an additional cost, Europe-wide. Prices are subject to VAT. Viewing by appointment possible. Please contact us – our team will be happy to assist you. Redpfx Afjylkfaocep Trade-in or exchange possible! Machinery Purchase & Sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES, AND MORE. Gjbn N Ay Dowza Dxogoil Are you looking for a high-quality yet affordable metalworking machine for your production? Or do you want to sell yours? For further information or to get in touch, please visit our website.

Condition: used, Year of construction: 2011, functionality: fully functional, machine/vehicle number: 141447, Technical characteristics: Max. measuring range in mm X axis 500; Y axis 500; Z axis 500 Dimensions in mm Without base: length: 1160; width: 1080; height: 1803 With base: length: 1170; width: 1090; height: 2480 Mass of CMM in kg: without base: 350 with base: 445 Max admissible workpiece mass in kg: 100 Equipment consists of: Coordinate measuring machine (CMM) with base Control (integrated) Control console Software (Calipso 5.4) Documents Probing system Master stylus Reference standard Changer rack Machine status: WORKING Rsdpexxvbrjfx Afcep

Condition: used, Year of construction: 2013, functionality: fully functional, machine/vehicle number: 201310504039 623534 -9805-130, Technical characteristics: 📏 Measuring Range & Dimensions X-axis: 700 mm Y-axis: 1000 mm Z-axis: 600 mm Maximum workpiece weight: approx. 730 kg Table height: 850 mm Machine footprint: approx. 1600 × 2100 mm Height: approx. 2800 mm 🧠 Accuracy & Performance Length measurement error (MPE): VAST XXT: (1.8 + L/300) µm TP20/TP200: (2.2 + L/300) µm Probing error (MPE_P): VAST XXT: 1.8 µm TP20/TP200: 2.0 µm Scanning performance: Up to 500 points/sec VAST Navigator and Fly Mode for optimized path planning 🔧 Sensor & Probe Options Probe head: ZEISS VAST XXT or RDS articulating head Stylus length: Up to 150 mm (TL3 module) Stylus weight: Max. 15 g Angular positions: 20,736 with CAA correction Optional sensors: ZEISS ViScan (optical) ZEISS LineScan (laser triangulation) ZEISS DotScan (white light confocal) Redpfxsxxu Hgs Afcjp 🌡️ Environmental Conditions Operating temperature: 17–35 °C Guaranteed accuracy: 18–22 °C Humidity: 30–60% (non-condensing) Vibration damping: Integrated passive system ⚡ Utilities & Control Power supply: 100–240 V AC, 50–60 Hz Maximum power consumption: approx. 800 VA Compressed air: 6–8 bar, max. 120 Nl/min Controller: ZEISS C99L with CALYPSO software Protection class: IP53 Machine status: WORKING

Condition: used, Year of construction: 2016, functionality: fully functional, machine/vehicle number: 202539, Technical characteristics: 📏 Measuring Range & Dimensions X-axis: 900 mm Y-axis: 1200 mm Z-axis: 700 mm Max. workpiece weight: ~1,300 kg Machine footprint: ~2,040 × 1,495 mm Height: ~3,030 mm Table height: 850 mm 🧠 Accuracy & Performance Length measurement error (MPE): Standard: 1.5 + L/350 µm Enhanced (Navigator mode): 0.9 + L/350 µm Probing error (MPE_P): 1.2 µm Scanning error (MPE_THP): 1.7 µm Form measurement error (RONt): 1.3 µm Repeatability (MPL): 0.7 µm Scanning speed: Up to 500 points/sec Acceleration: Up to 1.2 m/s² Max. vector speed: 520 mm/s 🔧 Sensor & Probe Options Standard probe: ZEISS VAST gold or VAST XTR gold Stylus length: Up to 800 mm Stylus weight: Max. 600 g Minimum stylus tip diameter: 0.3 mm Multi-sensor support: Optical (ViScan, LineScan), tactile (VAST XXT, RDS) Rodpfx Aoxxvldofcsp 🌡️ Environmental Conditions Operating temperature: 15–30 °C Accuracy guaranteed: 18–22 °C Humidity: 30–60% non-condensing Vibration damping: Passive elastomer system ⚙️ Control & Software Controller: ZEISS C99L Software: ZEISS CALYPSO, HOLOS, GEAR PRO CAA (Computer-Aided Accuracy): Real-time dynamic correction Navigator technology: Automatically adjusts scanning speed for optimal precision Machine status: WORKING

Condition: used, Year of construction: 2016, functionality: fully functional, machine/vehicle number: 202308, Technical characteristics: 📏 Measuring Range & Dimensions X-axis: 900 mm Y-axis: 1200 mm Z-axis: 700 mm Max. workpiece weight: approx. 1,300 kg Machine footprint: approx. 2,040 × 1,495 mm Height: approx. 3,030 mm Table height: 850 mm 🧠 Accuracy & Performance Length measurement error (MPE): - Standard: 1.5 + L/350 µm - Enhanced (Navigator mode): 0.9 + L/350 µm Rodpfx Afjxxvkyocop Probing error (MPE_P): 1.2 µm Scanning error (MPE_THP): 1.7 µm Form measurement error (RONt): 1.3 µm Repeatability (MPL): 0.7 µm Scanning speed: up to 500 points/sec Acceleration: up to 1.2 m/s² Max. vector speed: 520 mm/s 🔧 Sensor & Probe Options Standard probe: ZEISS VAST gold or VAST XTR gold Stylus length: up to 800 mm Stylus weight: max. 600 g Minimum stylus tip diameter: 0.3 mm Multi-sensor support: Optical (ViScan, LineScan), tactile (VAST XXT, RDS) 🌡️ Environmental Conditions Operating temperature: 15–30 °C Guaranteed accuracy: 18–22 °C Humidity: 30–60% non-condensing Vibration damping: Passive elastomer system ⚙️ Control & Software Controller: ZEISS C99L Software: ZEISS CALYPSO, HOLOS, GEAR PRO CAA (Computer-Aided Accuracy): Real-time dynamic correction Navigator technology: Automatically adjusts scanning speed for optimal precision Machine status: WORKING
