Silo

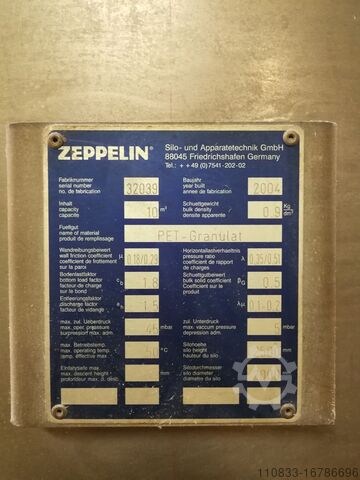

ZEPPELIN 32039

Condition: as good as new (ex-display), Exterior dimensions: Dia Ø 3600 mm Total H 11000 mm. Cylinder height: 10.200 mm. Vertical stainless steel tanks - 2 pcs. Conical bottom with 4" outlet. Hnsdpfx Aeicgn Tskrju Conical top with ventilation. Manhule at front of bottom. AISI 304. Can be delivered with 1-2 sidemounted agitators. Can be delivered with new isolation completed with optional plates.

Condition: excellent (used), Aluminum silo (plastic granulate silo) standing on a base ring – used – designed for a bulk density of 1.0 kg/dm³ Volume: 105,000 liters Manufacturer: Zeppelin Available quantity: 1 Diameter: approx. 3,000 mm Cylindrical height: approx. 17,500 mm Overall height: approx. 15,000 mm (including 1,250 mm roof edge railing) Material: AlMg3 Bulk density: 1.0 kg/dm³ Inclination of the upper floor: 15° Inclination of the cone: 60° Equipment and connections: In the upper floor: 1 x access dome DN 500 with hinged cover 1 x ventilation opening with hood 2 x flange DN 100 PN 10 (filling + level indicator) 1 x stub for full-level indicator 1 x roof edge railing with handrail 2 x crane eyes On the shell: 1 x access door 850 x 2000 Hedpslg Dcfjfx Akronu 8 x pipe support for filling pipe DN 100 1 x filling pipe DN 100 1 x cable duct 1 x stub for full-level indicator The silo ends at the bottom in a 60° cone with a flange DN 200 (discharge height: approx. 500 mm) and a suction box. The currently connected measuring and control technology is included. However, no guarantee is given for its function! Additional cost: The silo has a two-part ladder with back protection and a landing platform (additional cost: €950 plus VAT). Otherwise, as shown in the pictures and drawing.

Condition: reconditioned (used), functionality: fully functional, used rack oven Miwe Roll-in RI 1.0608-TL electro, overhauled, with hood, with touch display, electrics newly wired, new seals, circulator with new bearings, 72.6 kW, 400 V, 50 Hz, serial no. 47 707 Hsdpfx Aswrth Eokrenu

Condition: used, functionality: fully functional, Aluminum flour/sugar silo with a tall support ring (used), designed for a bulk density of 0.95 kg/dm³ Hedpfx Akjyhzm Rorsnu Volume: 70,000 liters Available quantity: 1 Diameter: approx. 2,400 mm Cylindrical height: approx. 17,500 mm Overall height: approx. 19,200 mm (including roof edge railing) Material: AlMg3 Bulk density: 1.0 kg/dm³ Equipment and connections: In the upper section: 1 x access opening DN 600 with cover 1 x over/underpressure valve 1 x top-mounted ventilation filter (ø 1000 x 5 mm) 1 x flange DN 125 for filling pipe 1 x flange DN 50 for pressure transmitter 1 x roof edge railing with handrail 2 x crane eyelets On the shell: 1 x access door 850 x 1800 mm 8 x pipe support ø 108 mm for filling pipe 1 x filling pipe DN 100, ending in a TW connection at the bottom 1 x cable protection conduit DN 50 1 x block flange for level indicator 1 x rupture disc Various pipe penetrations in the area of the lower support ring The silo has a 40° cone at the bottom, which ends in a flange DN 1500 for mounting a vibratory base. At the bottom/cone: 1 x vibratory base VB 1400 with motor, manufacturer AZO 1 x block flange for empty level indicator The currently connected measuring and control technology is included in the above offer. However, no guarantee is given for its function! Please note that the connections and equipment of the four silos may differ slightly. Otherwise, as per the images and drawings.

Year of construction: 2000, condition: used, functionality: fully functional, Aluminum storage silo with a sturdy base ring Technical data / Dimensions Available quantity: 4 Volume: approx. 174,000 liters Container type: Silo Condition: used Food grade: no Design: vertical Internal diameter: approx. 4,200 mm External diameter: approx. 4,260 mm Cylindrical height: approx. 15,000 mm Overall height: approx. 16,250 mm Weight: approx. 3,500 kg Specific gravity of the medium: 1 ton/m³ Operating pressure: non-pressurized Notes: A new access ladder for the silo system can be offered as an option. Hnjdpfoy Ufigex Akreu Material / Properties Material, inner shell: Aluminum Internal welds ground smooth Notes: Material AlMg3 / AlSi Equipment Base design: Foot ring / base ring Quantity: 1 Mounting: fixed Top bottom type: Conical bottom Bottom type: Cone Cone angle: 90 degrees Top: 1 x roof edge railing, height: approx. 1,200 mm 1 x walkway with platform 2 x crane eye 1 x manhole DN 500 1 x connection flange for level measurement 1 x threaded socket for max. sensor 1 x flange DN 100 (filling) 1 x vent with hood Shell: 1 x operating room door (approx. 1,800 x 850 mm) 1 x cable protection conduit 1 x filling line DN 100 (insulated) ending in a TW connection 1 x welded adapter for empty message Bottom: The silos end at the bottom in a 90° cone with a flange DN 200 and an emergency shut-off valve. Fittings: The measuring and control technology installed on the silo will be supplied free of charge. However, no guarantee can be given for its proper functioning. Documentation Drawing

Year of construction: 2012, condition: used, Technical details: Number of working hours: ca. 700 h number: Rotormesserhalter: 5 number: Stattormesserhalter: 4 Rotor-Ø: 440 mm material: PET control voltage: 24 VDC kW Hnedpfx Aeu Nw Ebokrou Cutting mill (shredder) The plastic granulator is intended for industrial use. Application: Size reduction of all kinds of plastics, such as ABS, POM, PA6, PE, PP, PG and PET Plant consists of a granulator with belts and a bottle bunker. Material is fed into the bunker via feeding belt Hopper 20M2 V2A complete with gear motor 7,5 kW, The screw conveyor is activated by the control system of the granulator. Bucket volume approx. 20 m³, HxWxD: 4400x3300x3300mm, weight approx. 27,0 to, Bunker with discharge unit CentriCut 44SR granulator 55 kW, granulator 55 kW (50Hz, 400Volt) and feed screw 55 kW (50Hz, 400Volt) Grinding chamber: rotor knife length 272mm, weight approx. 2.0 to Conveyor belt NT9, belt length 3500mm, useful belt width 416mm, (guide profile height 60mm, driving bar height 60mm, driving bar distance approx. 500mm) total length 3550mm, total width 780mm, total height 2350mm, weight 250kg Sound insulation LxWxH: 2700x2300x2500mm, weight 1,3 to Tunnel detector 600 is integrated into the CentriCut cutting mill on the control side, scanning side 600mm, passage width 840mm, passage height 400mm, weight approx. 150kg The plant is ready for transport and for sale. i.D. *

Year of construction: 1987, condition: used, functionality: fully functional, machine/vehicle number: 17526, For sale: aluminium silo suitable for storing granulate, 4 units available. The price is per unit. Hnsdpfx Asxx Nnlokrsu

Condition: good (used), Year of construction: 2014, Ref. no.: 18636 Manufacturer: EICHHOLZ Type: OCTABIN TIPPER & MATERIAL FEEDING SYSTEM Year of construction: 2014 Further information: WHAT IS AN OCTABIN TIPPER? An octabin tipper is an industrial automation system used for the controlled and safe discharge of plastic raw materials, granules, or regrind materials from large-volume octabin containers. Heavy octabins are loaded by forklift and then lifted and tilted in a controlled manner using a hydraulic or chain-driven mechanism. The material is discharged into the lower hopper and can then be transferred to the production line via vacuum conveying or dosing systems. These systems are widely used in plastic injection molding and extrusion plants to reduce labor, increase production efficiency, and ensure safe material handling. FOR SALE: OCTABIN TIPPER + MATERIAL FEEDING SYSTEM For sale: 1 heavy-duty industrial octabin tipper / material discharge system. The system was removed from a running plastic production line and is in clean and good cosmetic condition. Hnedoy Tliwepfx Akrju The machine is designed for the controlled discharge of plastic raw materials from large-volume octabins and for transferring the material into centralized conveying systems. The system is equipped with high-quality industrial components from Aerzen, Rittal, Omron, and DMN Westinghouse. BRANDED COMPONENTS INCLUDED IN THE SYSTEM Aerzen Vacuum / Blower Unit (Germany) Aerzen is one of the world’s leading German manufacturers of industrial blower and vacuum technologies. Technical Details • Brand: Aerzen • Model: GM15L • Year: 2014 • Capacity: 12.50 m³/min • Motor Power: 11 kW • Max. Pressure: 1.25 bar • Operating Pressure: 1.0 bar • Weight: approx. 626 kg Advantages • High-efficiency German technology • Suitable for continuous industrial operation • Reliable and low-maintenance • Ideal for centralized vacuum systems Rittal Industrial Control System The system is equipped with a Rittal industrial control cabinet. Rittal is a globally recognized premium brand in industrial automation and control systems. Features • Industrial control cabinet • Operator control system • Integrated safety circuits • CE-compliant construction Omron Safety Sensors The machine is equipped with Omron safety sensors. Features • Industrial safety barriers • Operator protection system • Safe working area monitoring • Compatible with automation systems DMN Westinghouse Rotary Valve System A DMN Westinghouse rotary valve is installed at the lower hopper outlet. DMN Westinghouse is a globally recognized premium manufacturer for bulk material handling systems. Technical Details • Brand: DMN Westinghouse • Model: ALD 200-6 • Low-dust controlled material transfer • Suitable for granule and bulk material applications Advantages • Controlled material flow • Reliable continuous operation • Suitable for centralized conveying systems

Year of construction: 2008, condition: ready for operation (used), Max. pipe diameter: 500mm, power: 1.7kW, max. pipe thickness: 6mm, weight: approx. 4100kg. Documentation available. On-site inspection is possible. Hnsdpeu Ei Umofx Akrou
