Hydraulic press

ZEULENRODA

Condition: used, Year of construction: 1984, functionality: unexamined, Single-column press 250 t has not been used. Sold on behalf of customer. Inspection possible by appointment. Nljdey Hgk Aspfx Ag Dja

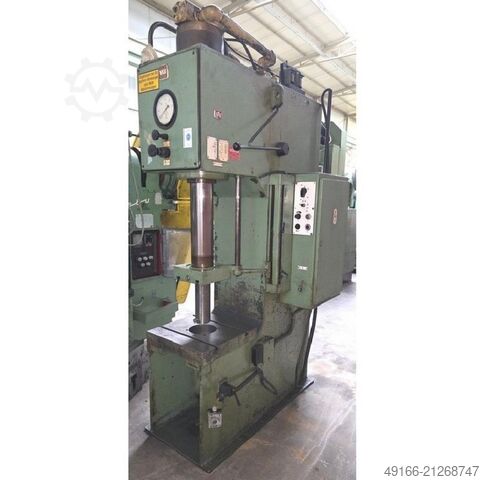

Condition: good (used), Year of construction: 1981, machine/vehicle number: 055-014-19, Offer 25275 Technical Data: - Max. press force: 25 t - Max. ram stroke: 500 mm - Stroke speed: 200 mm/sec - Return speed: 450 mm/sec - Installation height: 800 mm - Throat depth to ram center: 380 mm - Ram clamping surface: 440 x 360 mm - Ram clamping pin: 40 mm - Table size: 630 x 500 mm Nodpfsy Ew Szsx Ag Dela - Table opening / through hole: 180 mm - Electric foot pedal - 2 hand control panels - Drive: 400 V / 12.5 kW - Space requirement approx.: W 800 x H 2750 x D 1150 mm - Weight approx.: 2200 kg

Condition: good (used), Year of construction: 1982, machine/vehicle number: 055-013-15, Offer 25274 Nlodpfx Agey Ewx Uo Dea Technical Data: - Max. pressing force: 25 t - Max. ram stroke: 500 mm - Stroke speed: 200 mm/sec - Return speed: 450 mm/sec - Installation height: 800 mm - Throat depth to centre of ram: 380 mm - Ram clamping area: 440 x 360 mm - Ram clamping pin: 40 mm - Table size: 630 x 500 mm - Table opening / through hole: 180 mm - Drawing cushion: 10 t - Electric foot switch - Two-hand control panel - Drive: 400 V / 12.5 kW - Required space approx.: W 800 x H 2750 x D 1150 mm - Weight approx.: 2400 kg

Condition: good (used), Year of construction: 1984, machine/vehicle number: 054-008-212, Offer 25272 Technical data: - Max. pressing force: 25 t - Max. ram stroke: 500 mm - Stroke speed: 0 – 2.4 m/min - Return speed: 0 – 12 m/min - Installation height: 800 mm - Throat depth to ram center: 360 mm - Ram clamping area: 440 x 360 mm Nodpsy Ewtrjfx Ag Dela - Ram mounting shank: 40 mm - Table size: 630 x 500 mm - Table bore/opening: 180 mm - Electric foot switch - Two-hand control panel - Drive: 400 V / 8.75 kW - Required space approx.: W 800 x H 2750 x D 1150 mm - Weight approx.: 2000 kg

Condition: good (used), Year of construction: 1994, Pressure: 250 t Throat depth: 360 mm Table size: 1250 x 630 mm Table diameter: 250 mm Ram clamping surface: 850 x 450 mm Installation height: 800 mm Piston stroke: up to 500 mm Nljdpfjy Emvpsx Ag Dja Piston diameter: 400/360 mm Ram speed downward: 200 mm/sec Ram speed upward: 110 mm/sec Total power requirement: 20.5 kW Machine weight approx.: 8 t

Condition: used, Single-Column Eccentric Press RASTER ZEULENRODA Type PDA 100 Year of manufacture: 1995 Pressing force: 100 tons Throat depth: approx. 360 mm Table size: 1200 x 710 mm Ram area: 900 x 500 mm Table opening: 400 x 120 mm Stroke adjustment: 6 to 82 mm Ram adjustment: 100 mm Installation height, max. stroke, ram Top Dead Center (TDC): max. 469 mm Installation height, max. stroke, ram Bottom Dead Center (BDC): max. 387 mm Strokes per minute: 50-200 s.p.m. Main drive motor power: 18.5 kW Power supply: 400 Volt, 50 Hz - Hydraulically actuated multiple-disc wet clutch and spring-loaded safety brake - Infinitely variable drive via PIV gearbox with inching mode for automatic stroke adjustment and setup operations - Hydraulic overload protection in the ram - Press force and process monitoring via UNIDOR APS - Pneumatic, steplessly adjustable ram weight compensation - Roller feeder MABU WE16, 160 x 3 mm, programmable feed length - Central grease lubrication - Operating manual and documentation for the press Included: Roller feed unit MABU Type WE16 Strip width: 160 mm Strip thickness: max. 3 mm Strip cross-section: max. 300 mm² Roller diameter: 63 mm Strip speed: 40 m/min - Adjacent feeder control MABU Space requirements for eccentric press L x W x H: 270 x 240 x 350 cm Weight of the press: 13.5 tons Nodpfxsx U Eiao Ag Dela

Condition: excellent (used), Year of construction: 1987, functionality: fully functional, power: 8.75 kW (11.90 HP), pressing force: 25 t, stroke length: 500 mm, operating speed: 100 mm/s, reverse speed: 450 mm/s, table width: 630 mm, table length: 500 mm, ram plate width: 450 mm, ram plate length: 360 mm, clearance between the columns: 800 mm, total length: 16,500 mm, total width: 10,500 mm, total height: 27,500 mm, overall weight: 2,200 kg, die cushion stroke: 160 mm, Hydraulic press PYE 25 S1M with ejector. Nledpstzwxdjfx Ag Dsa Year of manufacture: 1987. Manufacturer: VEB Wema Zeulenroda (Germany). Specifications: Maximum pressing force: 25 tons. Working pressure: 16 MPa. Upper table: 450 x 360 mm. Lower table: 630 x 500 mm. Clearance: 800 mm. Cylinder stroke: 500 mm. Downward speed: 100 mm/sec. Upward speed: 450 mm/sec. Lower ejector force: 10 tons. Lower ejector stroke: 160 mm. Power requirement: 8.75 kW. Weight: 2200 kg. Height: 2750 mm, Length: 1650 mm, Width: 1050 mm. Very good technical condition. The machine has undergone a complete overhaul. Machine can be inspected and tested under power.

Condition: used, Year of construction: 1997, Press capacity: 315 ton Ram stroke adjustable: 30 - 100 mm Slide adjustment: 100 mm Shut height (stroke down, adjustment up): 370 mm Table surface area : 1600 x 1100 mm Slide area: 1600 x 1100 mm Hole in table: 600 x 180 mm Number of strokes: 15 - 180 s.p.m. Table height over floor: 1200 mm Required power: 170 kW Height over floor approx.: 4900 mm Dimensions L x W x H: 4900 x 1900 x 4900 mm Weight of machine approx.: 55 ton Standard configuration The press was converted to CE standard in press was 2021 converted to a SIEMENS S7 control conveyor system still has a SIEMENS S5 control system. Nedouqd Tmspfx Ag Dola Extended machine accessories Die lifters in the table Automation Feeding unit KEMMERICH consisting ofDecoiler levelling machine roll feeder Coil loading car

Condition: used, Year of construction: 1985, Technical details: Pressure: 3 t throat: 150 mm max. ram stroke: 280 mm daylight dimension with clamping plate Slide/ up: 355 mm distance table/ram: 355 mm clamping plate on table: 280 x 290 x 50 mm Nlodpsu Nfvbsfx Ag Doa passage opening in table: Ø 100 mm ram speed - forward: 0,1 m/s ram speed - reverse: 0,3 m/s mortise hole in ram: Ø 20 x 40 mm height over floor: 800 mm total power requirement: 1,5 kW weight of the machine ca.: 370 kg dimension machine xH: 0,8x1,2x1,9 m The single column press stands on a lower table (welded steel plate) Operation via foot switch The press has been modified -intake for foil for punching device -punching device FIBRO (plastic disc with Ø 47,5mm for punching) *

Condition: used, Technical details: Nedpeu Nfv Ujfx Ag Djla Pressure: 2,5 t throat: 155 mm max. ram stroke: 280 mm distance table/ram: 450 mm clamping plate on table: 260 x 1000 mm ram speed - forward: 0,08 m/s ram speed - reverse: 0,32 m/s mortise hole in ram: Ø 20 x 45 mm height over floor: 930 mm total power requirement: 1,1 kW weight of the machine ca.: 500 kg dimension machine xH: 0,85 x 1,0 x 17 m The machine is equipped for straightening work. *
