Lathe-conventional-electronicZMM - SLIVEN
HU 310
Machine data
- Machine type:
- Lathe-conventional-electronic
- Manufacturer:
- ZMM - SLIVEN
- Model:
- HU 310
- Year of construction:
- 2002
- Condition:
- used
Price & Location
- Location:
- Ahaus
Details about the offer
- Listing ID:
- A199-24940
- Reference number:
- 1125-9207330
- Update:
- 05.09.2025
Description
turning diameter 310 mm
turning diameter over slide rest 175 mm
spindle bore 32.0 mm
tailstock quill taper MT 3 MK
turning speeds 85 - 2200 U/min
bed width 200 mm
spindle taper DIN 55027 GR 5
total power requirement 2.2 kW
weight of the machine ca. 710 kg
range L-W-H 1884 x 717 x 1262 mm
New price ~ 20.000 euros
from a technical college (!!)
- in checked condition - machine videos -
?v=iqU7Bkh6INo
?v=aSViqjk51Ik
Furnishing:

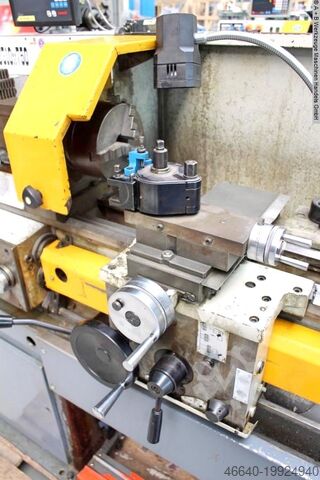

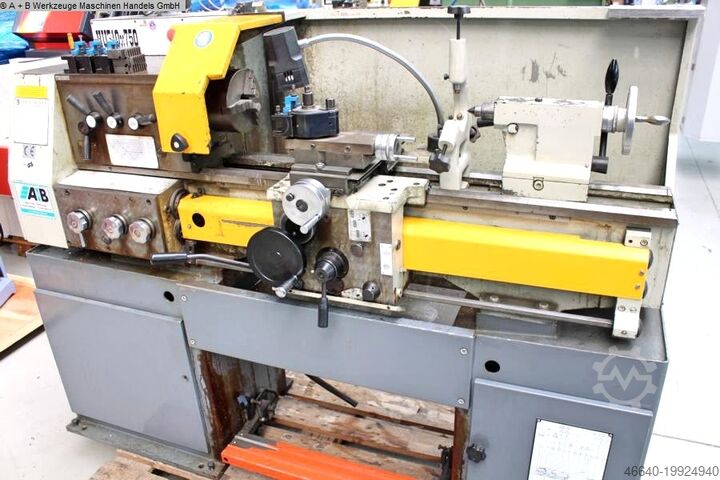

- Robust conventional center lathe
- 3-jaw lathe chuck Ø 160 mm, with replacement jaws
Cedoxab Tpepfx Abwohc
- "NEWALL" digital display, front left
- MULTIFIX steel holder with 4x inserts
- fixed bezel
- moving bezel
- Movable tailstock
- Foot/spindle brake
- Machine swing feet
- User manual (PDF/NL)
* all technical data:
- Turning diameter over bed 310 mm
- Distance between centers 750 mm
- Turning diameter over support 175 mm
- Spindle bore 32 mm
- bed width 200 mm
- Spindle mount / DIN 55027 GR 5
- Spindle taper 4.5 M
- Spindle speed 85 - 2000 rpm.
- Metric thread range 0.1 - 28 mm
- Thread module range 0.1 - 1.75
- Thread DP range 4 - 70
- Adjustment range cross slide 150 mm
- Adjustment range top slide 95 mm
- Tailstock quill diameter 40 mm
- Tailstock recording 3 MK
- Tailstock quill travel 100 mm
- Motor power 2.2 kW
- Weight 770 kg
