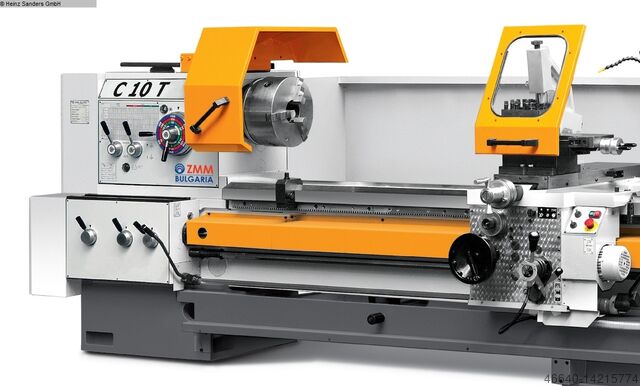

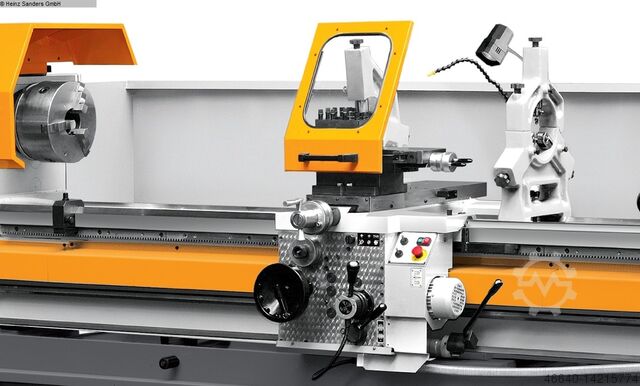

Lathe-conventional-electronic

ZMM C10TM/3000

Condition: used, Technical details: turning diameter over bed: 830 mm turning dia. over face-slide: 540 mm turning length: 3000 mm turning diameter over support: 540 mm centre distance: 3000 mm Dcsdpfx Aswmlknjl Ask faceplate diameter: 800 mm Rapid feed X axis: 4 m/min. control: MTC K (Monforts) range of revolution per miute: 2 -1.600 U/min spindle passage: 88 mm tailstock taper ISO: MK6 tailstock quill stroke: 200 mm max. workpiece weight between centers: 1250 kg max. workpiece weight -without tailstock: 3000 kg turning dia. in gap: 1.200 mm length of gap: 310 mm Weight approx.: ca. 6.85 (ohne Späneförderer und Kühlmittelbehälter) t dimension machine xH: 2,55 x 1,1 x 1,29 m Cycle lathe Machine overhauled in 2010 Operation via control panel Thread cutting by calculation Interpolator of NC control Chip conveyor manufacturer Cable drag Three-jaw chuck D=500mm without clamping jaws Various accessories *

Condition: like new (used), Year of construction: 2011, measuring range X-axis: 100 mm, measuring range Z-axis: 1,000 mm, mount diameter: 100 mm, overall weight: 160 kg, path measurement accuracy: 2 mm, tool weight: 160,000 g, Year of construction: 2011 Fully automatic with manual options Intuitive input of automatic measurement cycles Wear-free and maintenance-free linear motors Flexible control console From manual to fully automatic Low distortion even under the maximum permissible load thanks to its high installed weight FEM-optimised and thermally stable cast iron construction RFID – data carrier system Customer-specific data storage Measurement processes with integrated data retrieval and storage Integration of all popular RFID systems The read / write head can be positioned automatically and manually for all popular tool holder systems Technikal data Length and diameter up to 1,000 mm Max. tool diameter for measuring according to snap gauge principle 100mm Maximum tool weight 160 kg Tool holder SK50 (additional holders availale from company HAIMER/Microset) Concentricity at the spindle nose 2 μm Repeatability ±2 μm Tool preseting Quick and precise measuring results thanks to intuitive operation Accurate measurement values for complex and helical cutters with the precise focus window User administration and access privileges Display currently in 16:9 format Dedpfsyzzb Sox Al Ajck Cross hair fixed / floating with automatic measurement lines and automatic contour evaluation One design for the software of all equipment classes Windows 7 Professional or Ultimate, whatever you need Data exchange Post-processed data is transferred to the relevant data exchange drive either via the network or via USB. All equipment can provide tool data to almost any software (tool management, databases, CAD / CAM) via a bidirectional interface – irrespective of whether.

Condition: good (used), Year of construction: 2004, functionality: fully functional, measuring range X-axis: 316 mm, measuring range Y-axis: 120 mm, measuring range Z-axis: 315 mm, Zoller Hyperion 320EZ Dedpfx Aswwl S Hjl Aeck Tool holders for Miyano, Boley, and Index machines

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, 5-axis Simultaneous Machining Centre – Universal Brand: DECKEL MAHO / Type: DMC 80U duoBLOCK / Year of manufacture: 2014 Dcodpfx Alozq S Dme Ask Operating hours (week 31/2026): - Operating hours: 26.642 h - Spindle hours: 14.604 h The machine can be inspected under power by arrangement. TECHNICAL SPECIFICATIONS / EQUIPMENT: - 800 mm x 1.050 mm x 850 mm - Main drive: Motorised spindle 20 – 12.00 rpm - Tool holder: SK 50 - Universal milling head with controlled B-axis - Tool magazine: 123 positions - Heidenhain TNC 640 3D control - NC rotary table with pallet carrier - 2 pallets, d 800 mm x 630 mm - Rotary pallet changer - 2/4-way hydraulic clamping system for worktable and set-up area for connection of hydraulically operated clamping devices, including pallet preparation on the base machine - Coolant flow through the centre of the spindle, 40 bar - Chip conveyor - Documentation - CE marking - Extensive additional features ... Detailed technical data sheet and information on features are available upon request. No guarantee is given as to the completeness or accuracy of the technical specifications or equipment.

Condition: used, Year of construction: 2007, CNC milling machine DECKEL FP50CC/T, serial number 2834-0117, general overhaul by FPS (2007, serial number 2440), travel distances XYZ = 1,120 x 570 x 450 mm, table size 1,170 x 800 mm, powered rotary table 800 mm, 40-position tool changer, control system DECKEL Dialog 11. Dcodpfszlpkgjx Al Ask

Condition: used, turning diameter 900 mm turning length 3100 mm swing diameter over bed slide 640 mm Turning diameter over crank 1100 mm spindle diameter 110 mm speed 7-800 (24x) workpiece weight . kg Holder Multifix ja Dcsdpfx Aloyqu Ene Aek total power requirement 10 kW 50 voltage 380 V Multi fix toolpost Rapid traverse 2-Axis D.R.O. 3-jaw chuck diameter: 400 mm 4-jaw chuck diameter: 800 mm Fixed steady rest diameter: 580 and 360 mm Following steady rest diameter: 230 mm The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team
