CNC Surface Grinding Machine

aba Multiline 2510 CNC

Condition: used, Year of construction: 2001, grinding length 4200 mm grinding width 1300 mm workpiece height 550 mm Control Siemens 840D Iedpothumujfx Ad Djtp passage width 1300 mm electro-magnetic table 4200 x 1300 mm grinding height 550 mm grinding motor 306 kW grinding motor turning speeds up to 370 U/min grinding motor feed, infinitely variable 0,5-35 m/min coolant flow rate 2000 l/min weight of the machine ca. 50 t dimensions of the machine ca. 11,21 x 5,25 x 3,85 m Equipment / Accessories: - segment head - diameter 1400 mm - for segment dimensions 120/106 x 41 x 250 mm - number of segments: 1 set = 26 pieces - grinding motor adjustment - in steps: 0,002 - 1 mm - continuous: up to 5 mm/min stepless

Condition: not inspected (used), Year of construction: 2001, grinding length: 2,200 mm, grinding width: 1,240 mm, total height: 630 mm, grinding wheel diameter: 450 mm, overall weight: 9,800 kg, travel paths 2200x1240x630 mm magnetic table 2000x1000 mm wheel 450x80x127 mm permissible table load 3000 kg Itsdpfowplfdex Ad Dep filtration tank machine weight 9800 kg

Condition: used, Year of construction: 2001, tip circle diameter 1000 mm Ijdpfxewp S Thj Ad Dstp root circle diameter 50 mm max. module 18 mm min. module 1 mm max. wheel diameter 1000 mm gear width 630 mm Profile height max. 41 mm helical angle (left/right) max. 45 ° table diameter 720 mm max. table load 1500 kg grinding wheel diam. min/max. 180 / 400 mm grinding wheel width 60 (45/30) mm grinding spindle speed 0 - 3100 U/min total connected load 30 kVa

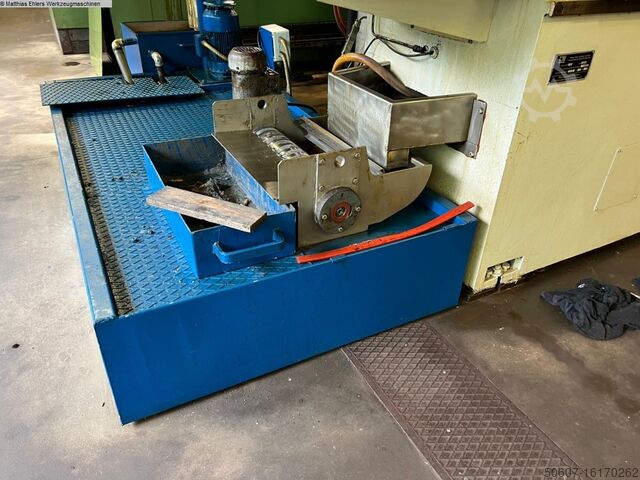

Condition: used, Year of construction: 1990, functionality: fully functional, machine/vehicle number: C4652, grinding length: 5,100 mm, grinding width: 250 mm, overall weight: 9,100 kg, space requirement height: 2,300 mm, space requirement length: 9,000 mm, space requirement width: 4,000 mm, Reform AR 51 Type 7 Surface grinding machine Year of manufacture: 1990 Grinding length: 5100mm Grinding width: 250mm Iodpfx Ajtqtk Aed Detp Workpiece height: 220mm Total power requirement: 36kW Used water system Lifting station, magnetic roller, pump

Year of construction: 2008, condition: ready for operation (used), Sanding range: 2000x900mm, transverse movement: 875mm, longitudinal movement: 2450mm, distance table to spindle center: 845mm, magnetic clamping plate dimensions: 2000x800mm, max. table load: 2.3t, feed rate longitudinal axis: 1000-30. 000mm/min, feed transverse axis: 0,01-2000mm/min, feed vertical axis: 0,001-1500mm/min, grinding wheel dimensions: 500x100x203,2mm, power grinding spindle motor: 22kW, length: 6800mm, width: 3450mm, weight: 13t. On-site inspection is possible. Iedpfjuyk N Isx Ad Detp

Condition: used, Year of construction: 1991, functionality: fully functional, machine/vehicle number: C4656, grinding length: 4,100 mm, grinding width: 200 mm, Reform AR41 Type 7 C4656/91 Year of manufacture: 1991 Grinding length: 4100mm Grinding width: 200mm Workpiece height: 190mm Table clamping area: 4169x202mm Segment head diameter: 250mm Spindle diameter in the front. Bearing: 45mm Swivelling: 2° Max. torque: 2x45.8Nm 2x grinding motor 7.5kW Feed: 2000-35000 mm/min Max. speed: 1460 min/-1 Total power requirement: 30 kW Iedpfx Adotqtppj Dstp Heidenhain digital display Additional grinding device ZS 7.5kW Swivelling clamping table via swivel gear Paper belt filter cleaning including pumps Central lubrication system Machine weight approx. 8.2t Space requirement approx. 9.5x2.6x2m

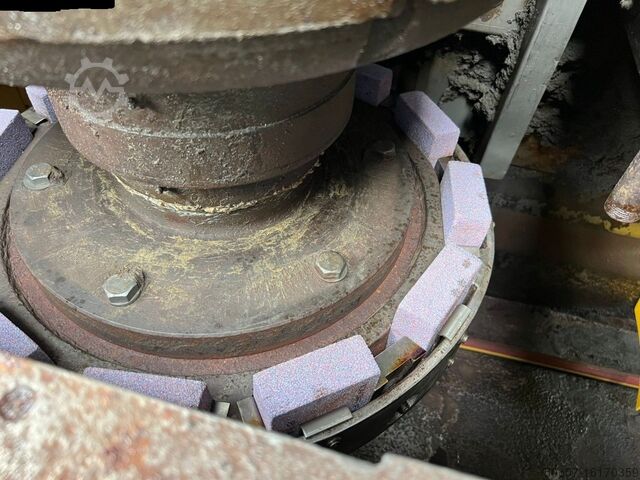

Condition: used, Year of construction: 1986, functionality: fully functional, machine/vehicle number: C3300, grinding length: 4,500 mm, grinding width: 300 mm, table length: 4,500 mm, table width: 300 mm, space requirement height: 2,500 mm, space requirement length: 13,700 mm, space requirement width: 2,500 mm, Reform AR45 T9 ZU C3300/86 Year of manufacture: 1986 Sanding length: 4500mm Sanding width: 300mm Workpiece height: 250mm Swivel range table or sanding arm: +-90 degrees Itodpfx Aetqtn Dod Dop Segment head diameter: 560mm Spindle diameter in front bearing: 120mm Swivel range: 2° Max. Torque: 719,5Nm Motor: B280, 55kW Grinding spindle speed range: 0-730 rpm Control system: BBC Baumüller drives Marposs measuring system Hydraul. Clamping Sanding mist extraction system: Hydrocyclone cleaning system Additional sanding unit ZU Feed rate: 2000-35000mm/min Space requirement approx. 13.7x2.5x2.5m

Condition: used, Year of construction: 2007, Technical details: grinding length: 3150 mm grinding width: 800 mm workpiece height: 650 mm table surface area: 3.150 x 600 mm magnetic clamping plate: 3.000 x 600 mm table load: max. 6 t dimensions of grinding wheel: 450 x 100 x 127 mm : 22 kW total power requirement: 70,6 kW weight of the machine ca.: 15 t dimensions of the machine ca.: 11 x 3 x 2,4 m Itodpfx Ajuh H Iyod Dep surface grinding machine, CNC Flachschleifmaschine, coolant device 2.500l, magnetical adhesive force control, semi automatic balancing system, *

Condition: used, Year of construction: 1975, max. wheel diameter 160 - 1.600 mm gear width 250 mm max. module 20 min. module 1,5 total power requirement 1 kW weight of the machine ca. 3 t Iedpfxst Hwpte Ad Dotp dimensions of the machine ca. m

Condition: used, Year of construction: 1991, functionality: fully functional, machine/vehicle number: 4653, grinding length: 4,500 mm, grinding width: 400 mm, total height: 2,700 mm, total length: 10,000 mm, total width: 1,800 mm, grinding height: 255 mm, grinding spindle motor power: 55,000 W, input voltage: 380 V, fabrication no.: 4653/91 - operating voltage: 380 V - frequency: 50 Hz - nominal current: 165 A - Max. grinding length: 4500 mm - Max. grinding width: 400 mm - Max. working height: 255 mm - with fixed magnets - clamping surface length: 4500 mm - clamping width: 400 mm - height over floor: min./max. 787 mm - grinding spindle segments: 90 x 35 x 200 mm - segment head: 560 mm diameter - spindle diameter at front bearing: 170 mm - feed rate of grinding spindle: 30000 mm/min - the machine consists of 3 clamping magnets - magnet dimensions: 1500 x 400 mm Technical attributes dimensions (l x w x h) Itodpfx Asr Izqcsd Dep approx. 10000 x 1800 x 2700 mm weight approx. 17500 kg year of construction 1991
