Head girder for bridge cranes

ABUS ZLK

Condition: excellent (used), functionality: fully functional, Year of construction: 2018, machine/vehicle number: 111-008668, For sale are two overhead travelling cranes, each equipped with two wire rope hoists per crane, each hoist with a load capacity of 3.2 tonnes, manufactured by ABUS, featuring radio remote control. Bridge span is 14,420 mm. Year of manufacture: 2018, in very good condition. Scope of delivery: 2 overhead cranes with 4 wire rope hoists, each 3.2 t capacity; remote control with charger and spare battery; power supply line MSL 4/100, 58.2 metres; documentation/inspection book. Technical data and dimensions: subject to change. For technical drawings, see the PDF document. Overhead cranes can also be sold separately. Hodjycwxzopfx Ahush

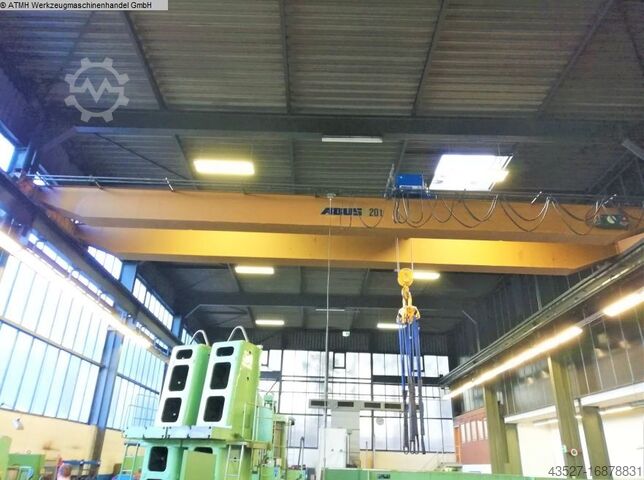

Year of construction: 1984, condition: used, weight max. 20 t clamping width 15065 mm stroke / mm ABUS electric wire rope hoist type: GM5200H6 - 161.41.103.D Span width: 15065mm Rope - nominal diameter: 14.0 mm Rope length: 47.95 metre Construction: Special electric hoist rope SKZ 8-P Surface of wires: galvanised Construction: low tension Type of lay / direction of lay: cross lay / right hand lay Hodpsudditefx Ahuoh Nominal strength of single wires: 2160 N/mm² Calculated breaking load: 240.0 KN Minimum breaking load: 209.5 KN Number of load-bearing wires in the outer strands: 152 Trolley Year of manufacture: 2007 Trolley track: 1600mm Trolley weight: 1260kg Number of wheels: 4 pieces Running wheel diameter: 200mm Running wheel rotation: 52mm Operation: Floor operation via push-button switch Control: Electric Cross travel trolley Speed: 5.0/20.0 m/min Power: 14 /.65kW Duty cycle: 20/ 30 %ED Protection class: IP 55 Brake: Disc brake Lifting gear Speed: 4.00 / .66 m/min Power: 15.10 / 2.40 kW Duty cycle: 30/20%ED Protection class: IP 55 Brake:Disc brake

Condition: excellent (used), Year of construction: 2008, overall weight: 120,000 kg, main lifting speed: 3 mm/min, working height: 10,000 mm, Double hoist 60 + 60 Ton Lifting class H2 Freqence vario speeds Hoist ABUS GM 7600U6 FEM Group 1Am Ikusi remote (TM70 2.13) Little used / Under power / Direct availebel Span: 31820mm Hjdsxmf R Sepfx Ahueh Lift height: 10000mm Capacity Kg: 120000 Lifting speed:0,50 - 3,30 M/Min Hoist trolley:5/20 M/Min Crane driving:1/20 M/Min Length: 31820mm Width: 4500mm Height: 2300mm Weight: 86000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
