Spark erosion cnc

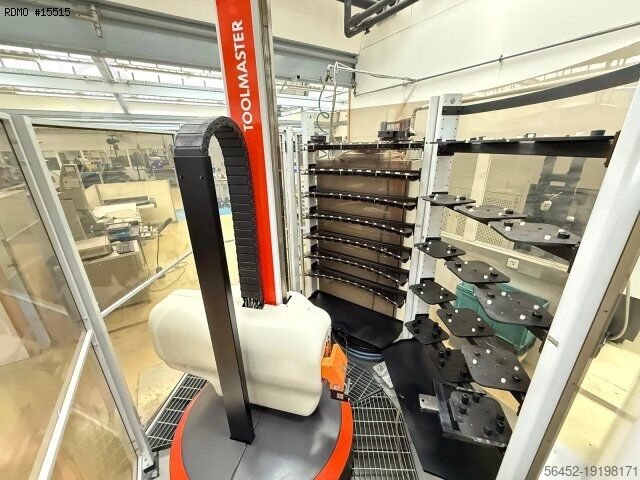

AGIE CHARMILLES FORM 2000 VHP

Condition: used, TECHNICAL DETAILS - Travels on X/Y/Z axes : 400 x 300 x 350 [mm] - Rapid traverses rates (X/Y/Z) : 6 / 6 / 15 [m/min] - Min./max. distance between table and chuck : 170 / 520 [mm] - Max. part dimensions : 820 x 580 x 250 [mm] - Max. part weight : 800 [kg] - Max. electrode weight : 50 [kg] - C axis : 0 - 100 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 9.1 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 4.700 x 2.750 [mm] - Machine height : 2.680 [mm] - Machine weight : 3.830 [kg] - Number of working hours : 13659 [h] EQUIPMENT - CNC : AGIEVISION 5 - Spindle nose : System 3R Kdsdezlk E Sopfx Akwst - Dielectric capacity : 600 [l]

Condition: ready for operation (used), Year of construction: 2015, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, number of axes: 3, This 4-axis AgieCharmilles FORM 30 die-sinking EDM machine was manufactured in 2015. It features an X-axis travel of 600 mm, Y-axis travel of 400 mm, and Z-axis travel of 400 mm. If you are looking to get high-quality die-sinking capabilities, consider the AgieCharmilles FORM 30 machine we have for sale. Contact us for further details. Kdjdpfsy T R D Hex Akwet

Condition: refurbished (used), Year of construction: 2026, functionality: fully functional, travel distance X-axis: 400 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 350 mm, workpiece weight (max.): 700 kg, total height: 2,530 mm, total width: 1,213 mm, total length: 2,326 mm, table width: 500 mm, table length: 575 mm, warranty duration: 12 months, With the genius 700, a new dimension of die-sinking EDM begins for you. High rapid traverse speeds and reduced non-productive times ensure the genius 700 processes your jobs exceptionally quickly. The ratio of table size to travel distance is unique in its class, enabling you to make optimal use of the table surface. Within its category, the machine offers by far the greatest dielectric fluid height above the table. Adjusting the dielectric with the infinitely adjustable tank is quick and simple. The machine features high rigidity thanks to preloaded roller guides. The C-axis moment of inertia is comparatively high at 0.6 kg/m². In addition, it is equipped with a high-precision measuring system. Even demanding EDM processes can be handled on the genius 700 efficiently and with maximum precision. On-the-fly filter changes prevent downtime, and the centralized lubrication unit shortens maintenance times. The genius 700 can be connected from two sides, offering flexible positioning. The height-adjustable control panel is ergonomically designed and allows for seated operation. Travel X – Y: 400 x 350 mm Travel Z: 350 mm Table size (L x W): 575 x 500 mm Distance, table – quill or chuck max./min.: 550/200 mm Dielectric fluid above table: 420 mm Dimensions (W x D x H): 1213 x 2326 x 2530 mm Total weight (without fluids): 3200 kg Workpiece weight: 700 kg Electrode weight with rotary: 15 kg Electrode weight without rotary: 50 kg with manual securing Resolution X – Y – Z: 0.001 mm (optionally 0.0001 mm) Resolution C: 0.001° Dielectric tank capacity: 330 liters Generator: IPMtec (integrated) Work current: 52 A total; optionally 100 A total (+ 48 A) Booster: 196 A total (+ 96 A) Extraction capacity: 200 m³/h (55 l/sec) Required cooling output: 2.5 kW Floor load: approx. 2.1 N/mm² Number of support feet: 3 Load per foot: 2 t Foot plate diameter: ø 110 mm Air flow rate: 10 l/min Required air pressure: min. 6 bar T-slots: Number / width / spacing: 4 slots / 10 mm / 3 x 100 mm Paper star filter: 1 piece Flushing unit: 1 pressure connection, 1 suction connection, 1 fine volumetric pressure connection Kodpfx Asyh Nfbskwodt Flushing flow regulator: infinitely adjustable Programming software: PROGmodEDM

Condition: used, Year of construction: 2007, operating hours: 128,688 h, functionality: fully functional, machine/vehicle number: 642672, 128,688 h active time (total time the machine was switched on) 21,821 h operating time (net time in which the machine was actively used) Kdsdpfx Aksym N Naswst

Condition: used, Year of construction: 2020, operating hours: 4,800 h, functionality: fully functional, travel distance X-axis: 905 mm, travel distance Y-axis: 705 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 3,000 kg, total height: 3,400 mm, total width: 2,100 mm, total length: 3,425 mm, table width: 850 mm, quill stroke: 710 mm, type of input current: three-phase, distance table to quill: 250 mm, table length: 1,150 mm, warranty duration: 6 months, feed rate X-axis: 5 m/min, feed rate Y-axis: 5 m/min, feed rate Z-axis: 15 m/min, input voltage: 400 V, overall weight: 7,500 kg, year of last overhaul: 2026, table load: 3,000 kg, input frequency: 50 Hz, rapid traverse X-axis: 5 m/min, rapid traverse Y-axis: 5 m/min, rapid traverse Z-axis: 15 m/min, Equipment: documentation/manual, EDM314MF30 + AWEX50/5 MF30 control panel Year of manufacture: 2020 Operating hours: 4800 h Overhauled Travel ranges XxYxZ: 905/1020 x 705 x 455 mm Work table: 1150 x 850 mm (steel table with T-slots) Work tank: 1200 x 900 mm Filling level of work tank: 500 mm Electrode weight, max.: 50/500 kg Workpiece weight: 3000 kg Machine weight: 7500 kg Machine dimensions (W x D x H): 2100 x 3425 x 3450 mm Equipment: Color: Light/Teal gray Tool changer: 30-position, in-machine Automation: AWEX50/5 50 electrode positions 5 pallets UPC 320x320 Kdodpfx Akoyt Ewgjwet Cartridge filter system Quick-change chuck EROWA/3R-Macro C-axis: 100 rpm, direct measurement 0.0001 degrees Holding brake in C-axis CO2 extinguishing system K&B Fire protection flap Smoke extraction with activated carbon filter Cooling unit integrated in the machine Manual control panel Automatic tank refill Erosion generator: 60 A Option with booster stage for 120 A erosion power Transportation On-site commissioning Training

Condition: excellent (used), Year of construction: 2001, operating hours: 27,265 h, functionality: fully functional, Charmilles Roboform 35 with QCRI robot Year of manufacture: 2001 Operating hours: 27,265 X, Y, Z travel: 355 x 255 x 305 mm Kdedpfjyh E A Nsx Akwet C-axis with Erowa chuck Erowa chuck on the table Erowa probe Magnet 3 x aluminium Erowa pallets 320 x 320 mm 35 x electrode holders 50 x 50 mm QCRI robot 4 x pallet positions on the table 54 x electrode holder locations Documentation and diskettes Machine powered up for inspection

Condition: refurbished (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 455 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 300 mm, workpiece weight (max.): 800 kg, total height: 2,600 mm, total width: 1,900 mm, total length: 2,300 mm, table width: 400 mm, quill stroke: 520 mm, quill travel distance: 300 mm, type of input current: three-phase, distance table to quill: 120 mm, table length: 800 mm, warranty duration: 12 months, feed length X-axis: 455 mm, feed length Y-axis: 300 mm, feed length Z-axis: 300 mm, feed rate X-axis: 5 m/min, feed rate Y-axis: 5 m/min, feed rate Z-axis: 15 m/min, input voltage: 400 V, overall weight: 2,800 kg, year of last overhaul: 2026, table load: 800 kg, input frequency: 50 Hz, working range: 900 mm, input current: 10 A, Equipment: documentation/manual, EDM312MF20/30 Machine: Complete Overhaul 12-Month Warranty Year of Manufacture: 2007/2026 Travel Range X/Y/Z: 450x300x300mm Distance Table/Z-Support: 120/520mm Work Table: 820x400mm Work Tank: 900x520mm Filling Height of Work Tank: 300mm Max. Dielectric Volume: 750l Max. Electrode Weight: 30/150kg Workpiece Weight: 800kg Machine Weight: 2800kg Machine Dimensions (W x D x H): 1960x1800x2610mm Kdedpfx Aoyxlxijkwet Equipment: MF20 Operator Interface Optional with MF30 Operator Interface CO² Fire Extinguishing System Cartridge Filter Heat Exchanger Direct Measuring System in X/Y/Z/C Axis C-axis: 100 rpm, Resolution 0.0001° C-axis Holding Brake Generator: 65 Amp EDM Current C-Box for High Removal Rates in Carbide Machining Electrode Changer, 20 Positions Quick-Change Electrode Holder EROWA, Hirschmann, 3R Options: New Control System with MF30 Operator Interface New EDM Generator Fume Extraction with Activated Carbon Filter Training On-site Commissioning Transport

Condition: excellent (used), Year of construction: 2011, operating hours: 26,882 h, functionality: fully functional, travel distance X-axis: 310 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 270 mm, Exeron S 310 MF Year of manufacture: 2011 Generator hours: 26882 Control system: Exowin 20 X, Y, Z travel: 310 x 270 x 270 mm C-axis 3R tool holder in the spindle Erowa chuck on the machine table with magnetic plate Generator: 64 A C-box for carbide and PKD tools 20-position tool changer Kdsdpfjzguk Ujx Akwst Fire extinguishing system Chiller Aluminum clamping plate, Erowa Documentation Machine is connected and available for inspection.
