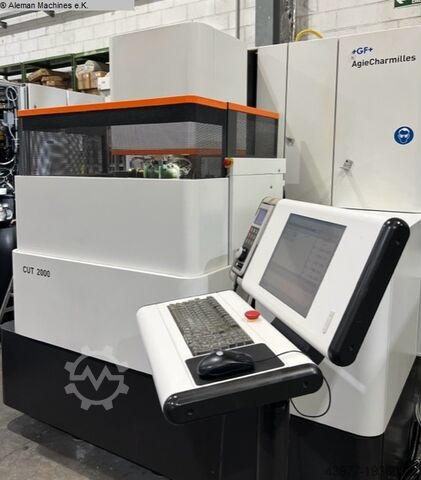

Wire Eroding Machine

AGIE-CHARMILLES CUT 2000 AWC

Condition: as good as new (ex-display), Year of construction: 2023, travel distance X-axis: 1,450 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,035 mm, Highlights: Gjdpjtiyzdofx Abpskd - fastest chip-to-chip time in this workspace dimension - Optimum footprint - Automation “ready” _____ G720F machining center X-axis travel = 1450 mm Y-axis travel = 1200 mm Z-axis travel = 1035 mm Interference diameter 1,500 mm (2x) table load 2x 750 kg Work area lighting Machine control Siemens Sinumerik ONE HT10 handheld control unit Motorized spindle 17,000 min-1, 64 Nm GROB spindle diagnosis (GSD) for twin-spindle machines Tool magazine, HSK-A-63 with 80 (2x40) tool pockets Tool loading lift for parallel loading and unloading of tools during machining time mechanic-tactile tool breakage check HSK taper shaft cleaning Air blow-off gun Inspection window for viewing the tool change area/tool robot Lighting in the tool change area/tool robot Minimum quantity lubrication unit for two spindles as single-channel Minimum quantity lubrication unit pressure booster Decentralized exhaust system MQL Scraper conveyor with wear plate Basic installation Clamping functionality Evaluation unit for monitoring support evaluation unit for clamping monitoring - volume flow Preparation for process-related measurement (Renishaw) Renishaw RMP400 extra long measuring probe Loading, directly into the machine by the operator Two-hand operation, incl. automatic opening at the end of the cycle HVO console Preparation for direct loading into the machine by robot Machine status light

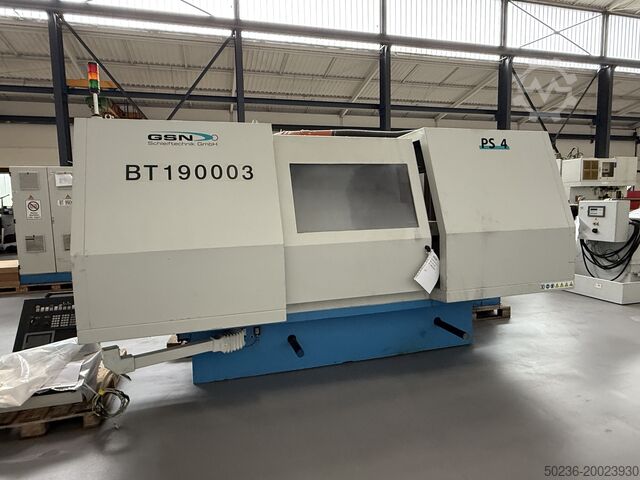

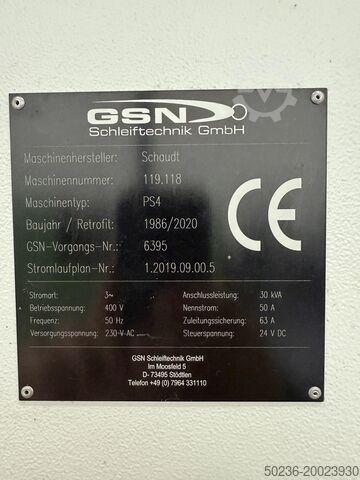

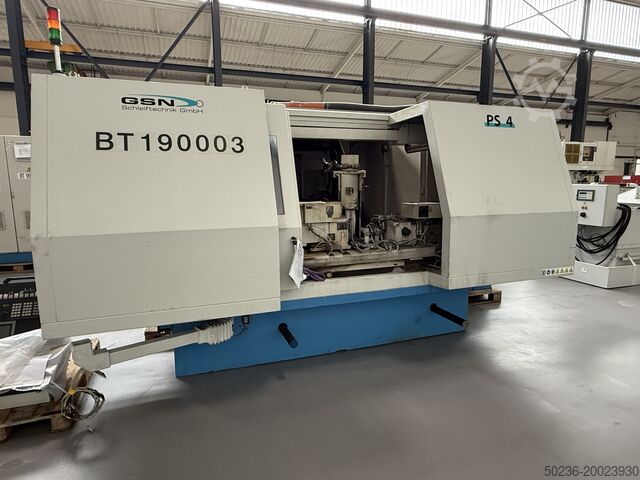

Condition: excellent (used), Year of construction: 2020, operating hours: 9,999 h, functionality: fully functional, machine/vehicle number: 119 118, Schaudt – GSN Schleiftechnik Gkjdpfx Abexdcx Iepsd Model: PS4 Year of manufacture: approx. 1986, completely overhauled/retrofitted in 2020 Control: CNC, Siemens SINUMERIK 840D after retrofit Application: External cylindrical grinding; plunge, oscillation, and face grinding possible

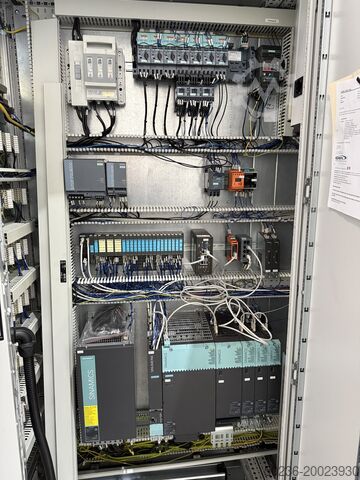

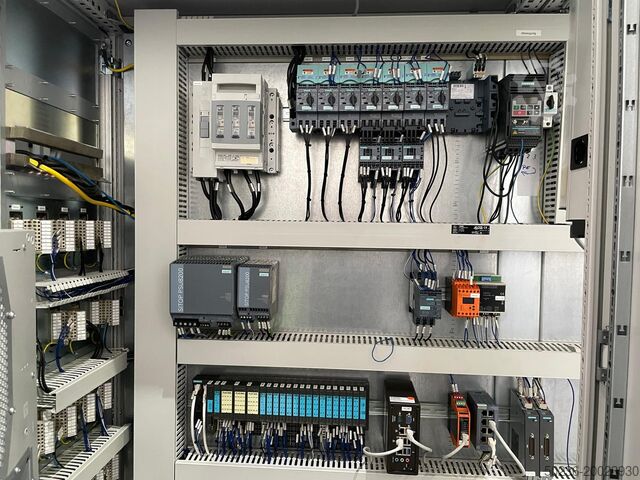

Condition: refurbished (used), Year of construction: 2020, Machine Type: Cylindrical Grinding Machine Manufacturer: Schaudt Maschinenbau GmbH Model: PS 4 Year of Original Manufacture: 1986 Renovation/Retrofit: 2020 Control System (Post-Retrofit): Siemens CNC SINUMERIK 840D General Specifications Application: External cylindrical grinding Grinding Method: Plunge, traverse, face grinding Gjdpfx Abew Avrzepokd Control Type: CNC (Siemens retrofit in 2020) Machine Weight: Approx. 3,500 – 4,500 kg Installation Area: Approx. 3.5 m x 2.0 m Workpiece Capacity Center Height: 180 mm Distance Between Centers: 1000 mm (varies by version) Max Workpiece Diameter: 360 mm Max Workpiece Weight: ~150 kg between centers Grinding Spindle Grinding Wheel Diameter: 400 mm Grinding Wheel Width: 50 mm Bore: 127 mm Peripheral Speed: Up to 45 m/s Spindle Drive Power: ~7.5 kW Spindle Speed Range: Up to 1,500 – 2,500 rpm (depending on wheel size) Headstock Type: Fixed or rotating spindle Speed Range (if motorized): ~30 – 500 rpm Taper: MK4 or similar Drive: AC Servo (post-retrofit) Tailstock Type: Manual or hydraulically actuated Quill Stroke: Approx. 50 mm Quill Diameter: ~75 mm Axes X-Axis (infeed): CNC-controlled Z-Axis (longitudinal): CNC-controlled Resolution: 0.001 mm Drive Type: Digital servo motors with ball screw Position Feedback: Absolute/Incremental linear encoders Coolant System Coolant Tank Capacity: Approx. 150 – 250 liters Coolant Pump: High-pressure, with filtration system Other Features (Post-Retrofit) Siemens HMI with touch interface Electronic handwheels (MPG) Updated safety system and enclosure New electrical cabinet with ventilation and cooling Optional AE sensor for gap detection or touch dressing
