Plate drilling machine

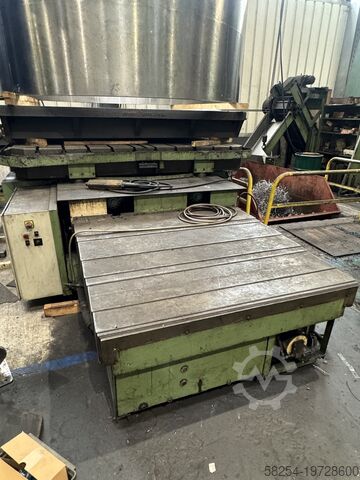

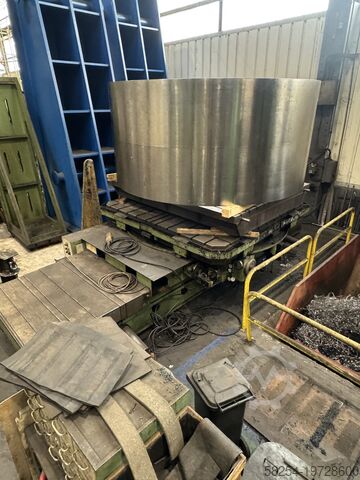

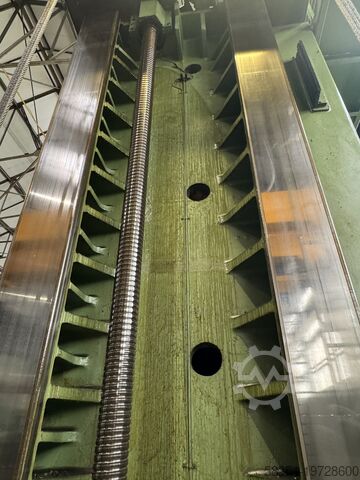

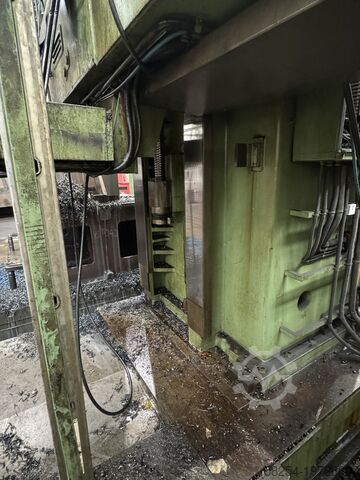

aléseuse Graffenstaden 7561 MP CN

Condition: used, Technical details: max. ram stroke: 250 mm workpiece diameter - max.: 80 mm Dodpfxew Au I Ie Ac Houl max. workpiece length: max. 900 total power requirement: 1,5 kW weight of the machine ca.: 2,1 t

Condition: good (used), Year of construction: 1988, Description: Heavy-duty, high-precision horizontal lathe with Rohm hydraulic clamping system, slide with two working positions, Sauter 4-position tool turret, circular turning unit, CNC 6 axes, tailstock, chip conveyor. Suitable for both high-volume material removal and high-precision turning. Machine modified with a 2000 mm face clamping plate and increased in size. Year of production: 1988 Made in: Germany Turning diameter over bed: 2500 mm Turning diameter over telescopic covers: 2200 mm Turning diameter over slide: 1400 mm Turning length: 6000 mm Three-jaw chuck table: 2000 mm Spindle bore: 200 mm Attachment for circular turning Workpiece weight: 4,500–40,000 kg Turret head: 4 positions Spindle speed range: 4 – 400 rpm Main motor Siemens 95.5 kW Maximum torque: 40,000 Nm Overall power requirement: 125 kW Control: CNC SIEMENS 8T, 6 controlled axes Machine weight: 43,000 kg Djdoxmb Adspfx Ac Houl Required space: 13,000 x 4,000 mm

Condition: used, Technical details: spindle diameter: 150 mm x-travel: 10000 mm y-travel: 2500 mm bore spindle stroke: 700 mm Djdpfx Acowg R Swe Heul ram stroke: 700 dimension of the ram: 340 x 340 mm spindle taper ISO: 50 Speed of boring spindles: 1,25 - 1250 U/min. feed speeds infinitely variable: 1 - 5000 mm/min rapid traverse: 5 m/min total power requirement: 120 kW weight of the machine ca.: 115 t dimensions of the machine ca.: 15,1 x 10 x 6,4 m with CNC SIEMENS 840 Dsl complete retrofit in 2010 FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity, longitudinal movement 2500 mm, angular milling head 4 x 90° universal milling head floor plate area ca. 12000 x 6000 mm ( 72 m²) chip conveyor and coolant attachment aerostatic guideways *

Condition: excellent (used), functionality: fully functional, turning diameter: 1,000 mm, turning length: 8,000 mm, total length: 10,500 mm, A used lathe from the Italian manufacturer Leopolod Pontiggia, model NH 500, is for sale. Technical specifications: Turning diameter over bed: 1,000 mm Turning length: 8,000 mm Extensive equipment as in the photos: 1 x 3-jaw chuck Dodpfev Epigox Ac Houl 1 x 4-jaw chuck 1 x steady rest + various adapters

Condition: used, Year of construction: 2010, turning length: 6,500 mm, turning diameter: 880 mm, spindle bore: 165 mm, controller manufacturer: Siemens, controller model: 840 D, _____ In General: Year of manufacture:2010 Control system:Siemens 840 D Rotation diameter:900 mm Turning diam.: 880 (750) mm Turning length:approx. 6,500 mm Spindle bore: 165 mm Tool holder:Capto C 8 Spindle: Speed:1,600 rpm Power: 60 kW Torque:4,472 Nm C-axis: 0,001° Spindle boar:165 mm 3-Jaw Chuck: SMW Autoblock KNCS-N-630-165 Tool carrier (X/Y/Z): Technology:Swivel head with milling spindle Speed:6,000 rpm Power:30 kW Tool holder:Capto C 8 Torque:315 Nm X-axis:920 mm Y-axis:500 mm (-200/+300 mm) Z-axis:6,870 mm B-Axis: 200° (-110° / +90°) Tailsstock + Steady rest: Quill diameter:180 mm Quill stroke:200 mm Steady rest slides: 2 pieces, 400 mm wide Steady rest I: SMW Autoblock SLU (45-310 mm) Steady rest II: SMW Autoblock SLU (125-460 mm) Tool magazin I: Technology: Wheel magazine (double) Number of stations: 72 Tool changer: Double gripper on shuttle Tool diameter max.: 110 mm (250 mm) Tool length max.: 800 mm Tool weight max.: 25 kg Tool magazin II: Technology: Pick-up magazine Max. usable length: 1,550 mm Max. usable weight: 150 kg Equipment: Tool magazine:72 stations Chip disposal:Chip conveyor Dusdex Axylepfx Ac Hjl Coolant supply:Internal coolant system Coolant temperature control:Immersion recooler Workpiece measurement: Touch probe Steady rest:2x SMW Autoblock Lynette 3-Jaw chuck: SMW Autoblock KNCS-N-630-165 Tool holder: Various Capto C8

Condition: good (used), Vertical Turning Lathe SC33 CNC Manufacturer: TITAN (Romania) YOM: 1986 Complete revision of the machine in 2005 Main technical data: CNC Siemens 802D Faceplate diameter: 3000mm Max. turning diameter: 3300mm Max. working height: 3000mm Max. workpiece weight: 18000kg Table speed range: 1.02-92 RPM Working feed range: 0.05-5 mm/rev. Main motor power: 55 kW Djdpfew Eplajx Ac Heul Overall dimensions: 5600 x 5300 x 5400 mm Weight: 47350 kg The machine is under power.

Year of construction: 1983, condition: good (used), Machine number: 316204/22 Type / Model: FSS 315/E Travel x-y-z: 850 - 280 - 355 mm table: 1.200 x 370 mm clamping surface: 1.060 x 260 mm Dedpfefli Afex Ac Houl Speed range: 28 to 1,400 rpm spindle mount: SK 50 quill stroke: 80 mm Feed rates x and y axis 16 to 800 mm/min feed z-axis: 5 to 250 mm/min Connection: 8 kW Accessories/equipment: Swivel head; condition: good Weight: 4 t Dimensions: 2.000 x 2.000 x 2.400 mm

Year of construction: 1981, condition: excellent (used), faceplate diam 1300mm Dujdpfx Acok Dz N Ij Hel max turning diam 1100mm range of turning diam 460-1250mm

Condition: used, functionality: fully functional, GURUTZPE B10000 LATHE Djdexwwi Iepfx Ac Hjul 10 METERS BETWEEN CENTERS 1900mm SWING OVER GAP 1600mm SWING OVER BED 1200mm SWING OVER CARRIAGE 105mm SPINDLE BORE / BAR CAPACITY 4-JAW CHUCK FIXED AND STEADY RESTS

Condition: refurbished (used), Year of construction: 1980, turning height: 4,800 mm, Completely retrofitted Single Column Vertical Turning Lathe Blansko SKSJ 1A, equipped with a single vertical head suitable for both turning and milling operations. Technical specifications: - Face plate diameter: 6,300 mm - Maximum achievable outer diameter (with column at max. extension): 11,200 mm - Maximum workpiece height: 4,800 mm Duedpfjw Hfm Nox Ac Hsl - Maximum turning diameter (column positioned near face plate): 8,000 mm - Maximum turning diameter (column at maximum extension, for internal turning): 16,000 mm - Infinitely variable face plate speed: 0.5 to 20 rpm - Maximum permissible workpiece weight on face plate: 125 tons The machine underwent a comprehensive retrofit in 2024-2025 and is equipped with the following brand-new components: - New electrical cabinet with CE-compliant components (Siemens, Schrack, etc.) - New Siemens 828 CNC, 100 kW main drive motor, 27 Nm feed motors, and ZF reducers (ratio 1:5) - New ballscrews on 2 axes (vertical head and cross rail) - New Heidenhain absolute scales on 2 axes - Hydraulic and lubrication systems fitted with CE-compliant components (Rexroth, Brevini, Atos, etc.) - New DROPSA (Italy) or equivalent central lubrication system - Geometric accuracy according to ISO standards – as per new-machine specifications For further information, please contact us.
