CNC lathe

RAVENSBURG KL-2500-6000 CNC

Condition: used, Year of construction: 2001, Technical details: x-travel: 2500 mm y-travel: 1000 mm z-travel: 750 mm table surface area: 3220 x 1000 mm Workpiece weight approx.: 3000 kg spindle taper ISO: 50 milling spindle turning speeds: 20 - 5000 U/min feed speeds: 1- 30000 mm/min rapid traverse: 30 m/min total power requirement: 40 kW dimensions of the machine ca.: 6,9 x 4,1 x 3,7 m weight of the machine ca.: 21 t with CNC HEIDENHAIN TNC 426 30-pockets autom. toolchanger RENISHAW measuring probe coolant attachment with TSC and chip conveyor Bodevptmwepfx Ambsdd diverse toolholders *

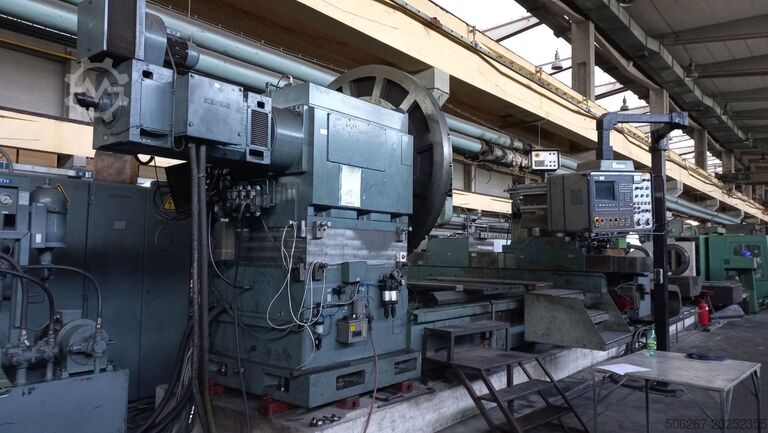

Condition: used, Year of construction: 1984, turning diameter over cross slide: 1,600 mm, turning diameter: 2,000 mm, turning diameter over bed slide: 2,000 mm, turning length: 35,000 mm, workpiece weight (max.): 63,000 kg, Center Lathe SKODA - SUT 200 TD MACH-ID 9446 Manufacturer: SKODA Model: SUT 200 TD Year of manufacture: 1984 Tandem construction on one bed, with left and right headstocks Faceplate double tailstock left and right Double carriage Steady rest included Roller rest included Operator panel with scales requires attention and replacement Motorized tailstock for each side (left and right) 3-bed way design Torque on chuck: 160,000 Nm Minimum turning diameter: Ø 315 mm Industries served: - Shipyards - Propeller shaft manufacturing - Hydraulic cylinder shafts - Camshafts - Defence & Aerospace - Rolls and shafts for steel mills - Crankshafts Specifications Bdedpsynky Ajfx Ambsd Metric / Imperial Turning length: 35,000 mm Swing over bed: Ø 2,000 mm Swing over carriage: Ø 1,600 mm Spindle power: 75 kW Bed width: 1,600 mm Quill diameter: Ø 400 mm Quill stroke: 250 mm Max spindle speed: 180 rpm Feed X-axis: 5,000 mm/min Feed Z-axis: 5,000 mm/min Workpiece weight: 63,000 kg Approximate dimensions: Length: 42,000 mm Width: 3,250 mm Height: 3,250 mm Weight: 158,000 kg Please note: The information on this page has been provided to the best of our knowledge and, where possible, obtained from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Accordingly, they do not constitute representations or contractual terms. We recommend verifying all important details.

Condition: excellent (used), Year of construction: 1972, functionality: fully functional, We are selling this lathe. It is connected and can be tested under power. The machine comes with accessories. Turning diameter: 2,000 mm. Turning length: 10,000 mm. Maximum workpiece weight: 60,000 kg. Machining diameter: 2,000 mm. A video of the machine can be sent via WhatsApp. Bdodpfxsxwmbmj Ambsd

Year of construction: 1981, condition: excellent (used), faceplate diam 1300mm max turning diam 1100mm range of turning diam 460-1250mm Bodpfx Amek Dz N Ijbedd

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, SFM Sunfirm CNC lathe in good working condition. Specifications: Swing diameter over bed: 1520 mm Swing diameter over cross slide: 1100 mm Swing diameter in gap: 1800 mm Distance between centers: 3000 mm Bdodjw Uqf Sopfx Ambod Spindle speed: 6–500 rpm in 4 steps Z-axis travel: 3300 mm Bed width: 850 mm Control: FAGOR 8055 8-position turret Motor power: 30/37 kW Accessories: 4-jaw chuck 1400 mm Chip conveyor 8-position turret Steady rest

Condition: used, Year of construction: 2017, pipe diameter (max.): 80 mm, mandrel length: 4,500 mm, Mandrel bending machine S8004 ----- For the production of dimensionally accurate pipe geometries with bending radii of up to 1.5XD → maximum bending performance pipe 76 x 4 mm (400 N/mm²) → maximum bending performance pipe 60 x 60 x 3 mm (400 N/mm²) → maximum bending performance pipe 76 x 2.9 mm (stainless steel) → total connected load 7 kW → pipe length 4.5 mtr Robust and durable steel construction in a force-locking connection - no construction susceptible to torsion due to, for example, the split construction of the bending head and mandrel carrier. Maintenance-free electromechanical drive of the bending axis. The touch display of the control enables simple and intuitive programming and use of the system. After the pipe has been pushed on, it is fixed in the carriage by the chuck. This enables the pipe to be positioned precisely and thus the creation of dimensionally accurate geometries. The standard also includes checking the pipe geometry before the bending process: If the bending process is started in the wrong position, the machine does not give permission for this. This prevents incorrect operation. Optional additional features provide more convenience and increase the output and thus the efficiency of the system. Data is exchanged from the optional pipe calculation program TBS-3D (PC version) via USB stick or via FTP access from the computer to the machine control system. USB or LAN connectors (RJ45) are available as standard. Existing pipe geometries can be converted quickly and easily, for example, using the STEP format. Standard equipment: → Electromechanical drive of the bending axis 4 kW → Speed 2.9 rpm (=17°/sec.) → Bending direction left → Bending angle resolution 0.1° → Max. bending radius 200 mm → Bending shaft diameter 50 mm → Electronic length measurement ±0.1mm → Electronic twist measurement ±0.1° → Manual stop system (overtravel stops in length) → Manual locking system (15° in twist) → Three-jaw chuck for locking the pipe in the carriage → External control panel PLC control: → Touchscreen 10.1" Bodpfx Aottah Rsmbjdd → ETH 10/100, X2X Link, USB → Foot switch operation → Data transfer via network (W)LAN or USB → Material database Unique graphic programming: Simple geometries can be calculated directly on the machine. The control calculates the feed values directly after entering the length and angle and the bending angles. Hydraulics: → Hydraulic power 3 kW → Hydraulic pipe clamping with adjustable clamping pressure → Programmable early mandrel retraction Options (can be ordered as additional equipment): → Variable bending speed using frequency converters or servo motors → Automatic tool retraction (manual or controlled) → Pneumatic chuck → Automatic mandrel lubrication → Pneumatic stop system (length + twist) → Mobile version (rollers) → Radius extension Pictures show new machine

Condition: refurbished (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 6,800 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,200 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, 5-axis gantry machining center CYPORT CP 6830 Travels X/Y/Z: 6,800 / 3,000 / 1,200 mm Gantry passage Y/Z: 3,276 / 1,405 mm Rapid Traverse X/Y/Z 30/30/30m/min 2-axis-NC-swivel head M-Series of German manufacturer Cytec: Bsdpfx Amsigrikobsdd Swivel range A-axis : +/-110° Swivel range C-axis +/- 360° Powerful milling spindle of German manufacturer Cytec: Tool taper: HSK-A100 Speed: 8,000 rpm Power: 50/64 kW (100%/40% DC) Torque: 240/300 Nm (100%/40% DC) Control: HEIDENHAIN TNC 530 (Heidenhain TNC 640 / 7 possible) 5-axis path control DXF-converter CAD-Viewer KinematicsOPT Energy efficiency certificate Remote Service Tool magazine: Number of pockets: 39 pcs. HSK-A63 max. tool diameter: 125/175 mm max. tool length: 300 mm max. tool weight: 15 kg Coolant system Manufacturer: KNOLL Tank volume: 1,600 L external coolant supply: 20 bar internal coolant supply: 50 bar Paper band filter, Spray gun Chip conveyor Coolant-airblast-changeover Work piece measuring system: Touch probe BLUM TC 60 - radio controlled Working area coverage Safety light sensors Documentation CE-certification Made in Germany

Condition: good (used), Year of construction: 2000, Ref. -No.: 10623 Manufacturer: WEILER Type: E90 x 4500 Year of construction: 2000 Type of control: CNC Control: SIEMENS D1 - Zyklen Storage location: Halberstadt Country of origin: Germany Bed width: 600 mm Turning Length: 4500 mm Swing Diameter Over Bed Slide: 900 mm Spindle Bore: 128 mm Max. Torque: 6000 Nm Feed Capacity - Z: 20000 kN Feed Capacity - X: 20000 kN Rapid Speed: 10/5 RPM Tailstock Quill Diameter: 140 mm Tailstock Quill Stroke: 300 mm Lathe tool dimensions: 32 x 25 mm Front bearing diameter: 178 mm Circumferential diameter over facing slide: 530 mm Spindle head according to DIN 55027 (size): Gr. 11 Tailstock inner cone: MK 6 / 140 Type Machine length: 6900 mm Machine width: 2600 mm Machine Height: 2150 mm Weight Of The Machine Ca.: 10,5 t Further information: Bedpey Ed Rqsfx Ambjdd The machine can be viewed while powered up.

Condition: used, Year of construction: 2007, x-travel 900 mm y-travel 300 mm z-travel 1000 mm control Siemens Sinumerik 840D max. workpiece diameter 1600 mm Bdedpfxjw Rrb Hj Ambjd max. module 20 mm tip circle diameter 350 mm Milling arbour diameter 375 mm Total closing value 80 kVa weight of the machine ca. 33,5 t dimensions of the machine ca. 10,530 x 6,375 x 4,680 m Feed rate: - X-axis 1 to 3000 mm/min - Y-axis 1 to 3000 mm/min - Z-axis 1 to 4000 mm/min Spindle speeds in rpm: - Tool 26 to 265 - Workpiece table 0 to 8 Equipment/accessories: - M 2 motor milling head - Milling mandrels - Oil cooler - Technical documentation

Condition: used, Year of construction: 1957, turning diameter over bed 800 mm turning diameter over slide rest 540 mm turning length 4000 mm centre height 400 mm centre distance 4000 mm spindle turning speed range 9 - 1140 U/min spindle passage 96 mm weight of the machine ca. 8,5 t dimensions of machine L x W x H 7,0 x 1,70 x 1,70 m - with gap with insert - Bdsdpsxwp Ehefx Ambed Accessories: 3-jaw chuck FORKARDT 400 mmø, 4-jaw chuck 500 mmø, faceplate 800 mmø, DRO on X-and Z-axis ACU-RITE, MULTIFIX-head with various inserts, 2 solid steadies, 1 running steady, running center, coolant
