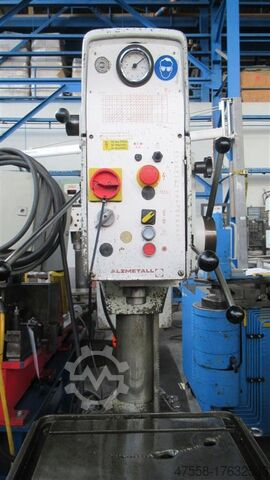

Pillar Drilling Machine

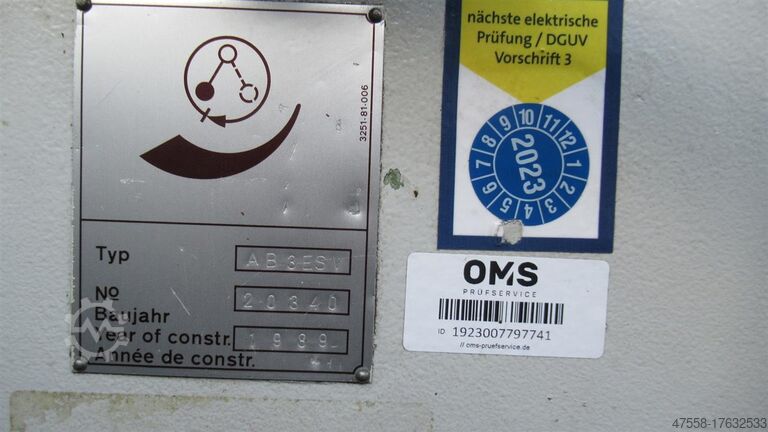

ALZMETALL AB3ESV

Condition: good (used), Year of construction: 1988, functionality: fully functional, For Sale: Column Drilling Machine by Alzmetall The machine is in good used condition, as shown in the pictures. Technical Specifications: • Manufacturer: Alzmetall • Model: AB3 - ESV • Year of Manufacture: 1988 • Spindle Taper: MK3 • Cross Slide Table: approx. 760 × 425 mm • Clamping Surface: approx. 600 × 325 mm • Travel Distance: • longitudinal: approx. 400 mm • transverse: approx. 200 mm • with adjustable end stops for longitudinal and transverse movement • T-slots: 2 pcs., approx. 14 mm, spacing approx. 160 mm • Infinitely variable speed control: approx. 55 – 1450 rpm • Automatic feed: approx. 0.1 – 0.2 – 0.3 mm/rev • Throat depth: approx. 280 mm • Spindle stroke / drilling depth: approx. 180 mm • Table size: approx. 600 × 470 mm • Drilling capacity in steel: approx. 35 mm • Weight: approx. 450 kg Shipping available upon request (postal code required). Cedpfxoxh Ndfe Abworh You will receive an invoice with VAT shown separately. Inspection and pickup are possible by appointment in 42855 Remscheid, Germany. Sale ex location 42855 Remscheid, loaded free on truck. Subject to prior sale and possible errors in technical data.

Condition: ready for operation (used), bore capacity in steel (diameter) 28 mm throat 285 mm bore stroke 150 mm table-size 620 x 470 mm Column diameter 130 mm spindle turning speed - stepless 110-2900 U/min spindle taper MK 3 feed 0,1 / 0,2 / 0,3 mm/U. Drive 1,47 kW Crjdpfx Ajwnt D Sjbwoh weight of the machine ca. 380 kg dimensions of the machine ca. 0,85 x 0,6 x 1,8 m Machine with infinitely variable speed control, 2-stage gearbox, aut. feed and base plate with flutes. Machine dealer with own stock of 1600 m².

Condition: used, machine/vehicle number: 8580, 3 automatic feeds 01, 02 -0.3mm/rev Table clamping surface: approx. 500 x 370 mm Table height adjustable via rack and pinion Crjdewtdmuepfx Abwjh Machining base plate approx. 350 x 320 mm With motor: 1.5 kW, 1415 rpm, 380/220V

Year of construction: 1970, condition: good (used), machine/vehicle number: Unbekannt, QUOTE Technical data: - Drilling capacity in steel ST 60 28 mm - Drilling capacity in steel ST 60 32 mm - Drilling spindle mounting MK 3-long spindle - drilling spindle stroke 180 mm Codpfohglvkjx Abwjrh - Drilling spindle speeds infinitely variable approx. 140 - 1600 rpm - 3 feeds 0,1 ; 0,2 ; 0,3 mm/rev - throat 290 mm - max distance table - drilling spindle 620 mm - rotary table with 2 T-slots 450 mm - Height adjustable via toothed rack with hand crank - Coolant device - Drive 380 V / 0,9 / 1,3 kW - Space requirement approx. W 750 x H 1900 x D 700 mm - Weight approx. 280 kg

Condition: used, Year of construction: 1975, bore capacity in steel (diameter) 35.0 mm bore capacity in cast iron 40.0 mm throat 300 mm bore stroke 180 mm turning speeds 65 - 1750 U/min Crsdoxabuaepfx Abweh table-size 425 x 500 mm column diameter 155 mm feed 0.1-0.2-0.3 m/min spindle taper MT 4 MK engine output 0.9 / 1.5 kW weight 450 kg range L-W-H 800 x 650 x 1850 mm Machine from a vocational school good / well-maintained condition (!!) Equipment: - robust motor-driven pillar drill with VARIO drive (V-belt) - electro-automatic spindle feed - pole-changing motor - stepless speed adjustment (VARIO drive) - adjustable drilling depth stop - machine table with 2x T-slots * height adjustable via hand crank - 1x used machine vice - machined base plate - coolant device - connection cable + connection plug - original operating instructions

Condition: used, Column Drilling Machine ALZMETALL Type AB 3 ESV Machine No. 15967 Year of manufacture 1977 Drilling capacity: 32 mm Spindle taper: MT 3 – short quill Codpjharwvefx Abwerh Distance spindle nose – table: 545 mm (short quill) Distance spindle adapter – table: 395 mm (MT adapter) Throat: 290 mm Quill stroke: 160 mm Table size: Ø 545 mm Column diameter: 220 mm Spindle speed: 55 – 1450 rpm, stepless Motor power: 1 / 1.6 kW Supply voltage: 380 Volt, 50 Hz - Spindle speed via 2 gearbox stages, 2 motor speeds and stepless through variable-speed drive - Intermediate gear stage for high torque at low speeds - MT adapter from MT3 to MT4 - Automatic feed 0.1 – 0.2 – 0.3 mm/rev - Swiveling drill table - Table height adjustment via hand crank - Heavy machine base with machined workpiece support surface (not original Alzmetall) - Work area lighting Space required (L x W x H): 1150 x 650 x 2000 mm Weight: 850 kg Good condition

Condition: used, Year of construction: 1967, bore capacity in steel (diameter) 28 mm throat 290 mm bore stroke 160 mm table surface area 620 x 470 mm spindle taper MT 3 spindle turning speed range 80 - 1420 U/min quill feed 0,1 - 0,2 - 0,3 mm/U boring spindle diameter 40 mm table adjustable in height 562 mm Credpjwlvkcofx Abwjh table swivelable 360 ° distance between table/spindle 79 / 641 mm weight of the machine ca. 0,5 t dimensions of machine L x W x H 0,70 x 0,40 x 1,80 m - machine out of teaching shop -

Condition: used, bore capacity in steel (diameter) 35 mm throat 280 mm bore stroke 180 mm 3 speeds 65 - 1750 U/min table-size 600 x 470 mm total power requirement 1,6 kW weight 450 kg dimensions 1200 x 800 x 2200 mm Column drilling machine OPTIdrill DP 33V promotion set / 3020680SET With an electronically controllable drive in a modern design * Industrial engine * Quiet running spindle thanks to new spindle design * Machine operation with safety electronics in 24 V direct current * Guaranteed concentricity = 0.02 mm in the measured drilling spindle * Clockwise/counterclockwise rotation * Precision spindle bore * Control panel with user-friendly, dirt and water resistant * Membrane keyboard * RPM display * Separate emergency stop button * Tapping function * Precisely crafted, stable drill table with diagonal T-slots with all-round cooling water channel, can be tilted sideways by ±45° and rotated by 360° * Drilling depth stop * LED machine light integrated in the drill head * V-belt cover with safety switch * Thick-walled steel column for high power absorption and stability * Solid, large base plate with T-slots * Execution of the entire machine Csdpewzmt Tofx Abwerh Scope of delivery: - Keyless drill chuck 0 - 16 mm - T-Nuts -expectors - Operating tool - BMP 160 machine vice
