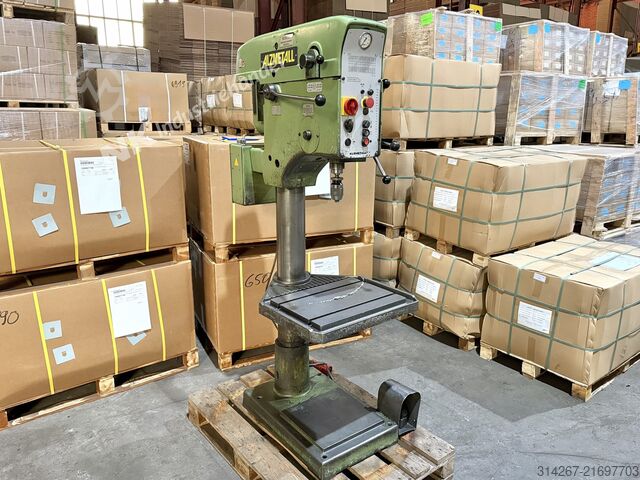

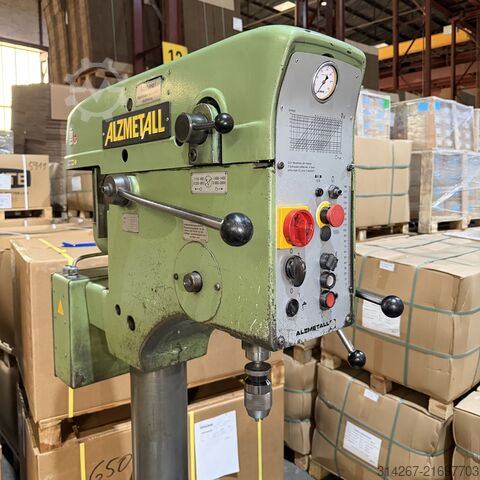

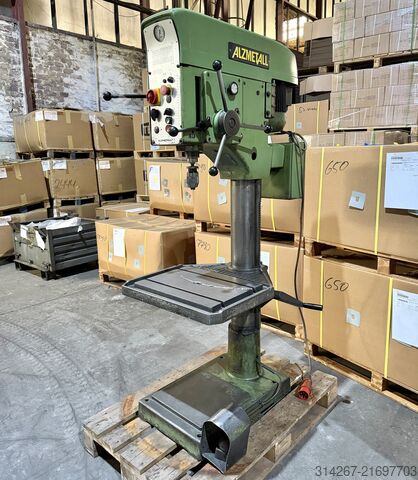

Hochl. Column drilling machine

ALZMETALL AB3/ESV

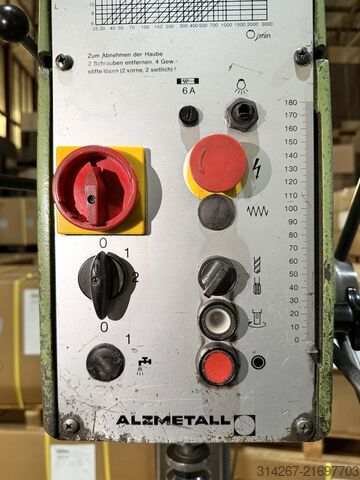

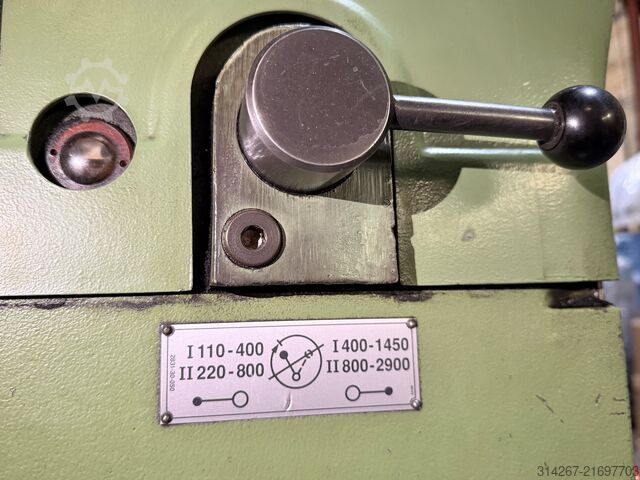

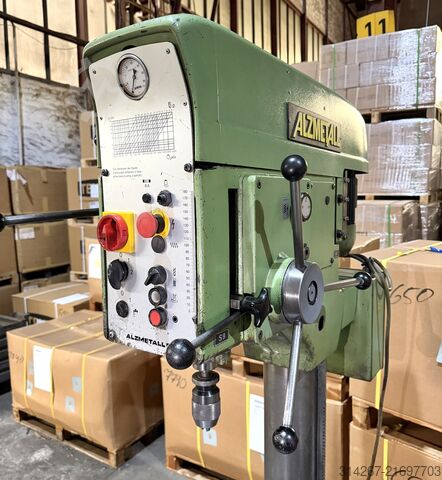

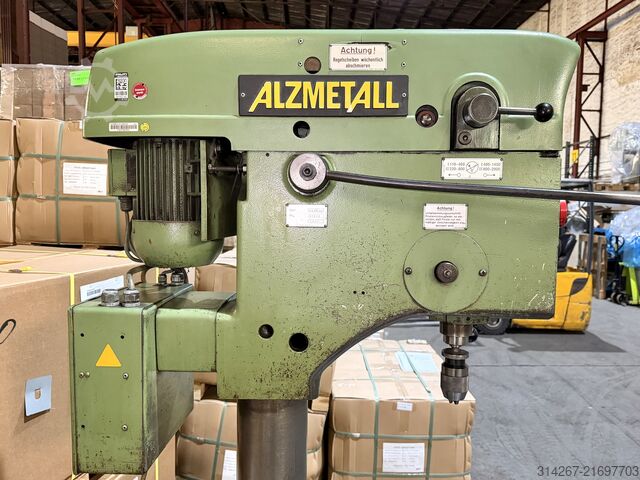

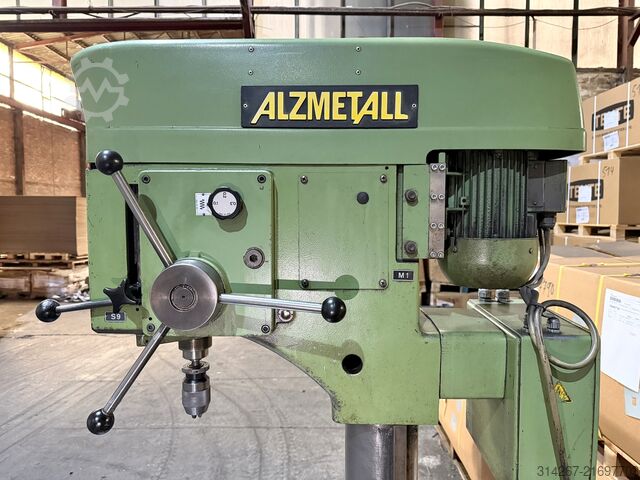

Condition: good (used), Column Drilling Machine ALZMETALL AB3 ESV Spindle: CM3 Rotation: 1 range 220 -800 RPM + 1 range 800-2900 RPM Table size: Length 615 mm x Width 470 mm Spindle travel: 160 mm Throat depth: 280 mm Speed adjustment by belt drive Rotative table at 360° Automatic Descent 3 speeds: 0,006 - 0,12 - 0,18 mm/min. Lhjdpfx Aszzv Uweiqol Lubricant pump Voltage: 380 V Width: 800 mm Depth: 1300 mm Total height: 1900 mm Weight: approx 800 kg

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, Universal Milling Machine Deckel FP4M with 3-Axis Active Digital Readout Heidenhain, Excellent Condition, CE Compliant!!! Technical Data: - Year of manufacture: 1992, Machine no. 2203-8449 - Fixed angle table - Spindle speed: 50 - 2500 rpm - Feed rate: 8 – 630 mm/min - Drive power: 3.7 / 4.4 kW - Spindle brake - Rapid traverse: 1300 mm/min - Travel (X/Y/Z): 500/400/400 mm - Vertical milling head traverseable on column Lhedpeu Tuk Hofx Aiqsl - Vertical and horizontal quill - SK40 taper - Vertical quill extendable by 90 mm - Hydraulic drawbar system - Approx. weight: 1600 kg Equipment and Accessories: - 3-axis active Heidenhain digital readout - Coolant system - Chip tray - Central electric lubrication - Operating manual, spare parts drawings About the Machine: For sale is a Deckel FP4M Universal Milling Machine (Active) in very good condition. The machine has minimal backlash, and all slides move smoothly. Even at maximum spindle speeds, the milling machine runs quietly. The machine features hydraulic tool clamping. The FP4M was only occasionally used in a state-run facility for training purposes. On this newer FP4 model, the feed rates are steplessly adjustable in all three axes, and each axis also features a rapid traverse. A major advantage is the active 3-axis digital readout. With the Heidenhain control, you can input measurements that the machine will approach automatically. Oil change has been performed; mechanically and electrically tested. The Heidenhain digital readout makes work easier and even more precise. Take advantage of the opportunity to inspect and test this machine under power on site.

Condition: good (used), Year of construction: 1979, bore capacity in steel (diameter) 35.0 / 40.0 mm throat 300 mm bore stroke 180 mm turning speeds 110 - 1450 U/min table-size Ø 455 mm column diameter 155 mm feed 0.1 / 0.2 / 0.3 m/min spindle taper MT 4 MK engine output 1.5 kW weight 450 kg range L-W-H 800 x 650 x 1850 mm Features: - Heavy-duty column drill press (V-belt drive) - Automatic spindle feed - Infinitely variable speed control Lhjdpozl E Tkefx Aiqol - Fixed depth stop - Round machine table with T-slots * Height-adjustable via hand crank * Rotatable - Emergency stop button on the front - Coolant system with separate reservoir - Operatorâ??s manual

Condition: ready for operation (used), Alzmetall AB 3 ESV Drill press, pillar drill Ledpfszx Rnaex Aiqjhl Pinole stroke: approx. 170 mm Table: 620 mm x 480 mm Clamping area: 500 mm x 375 mm Infinitely variable speed: 55 - 1450 rpm / Pneumatic speed adjustment Feed rate: 0.1; 0.2; 0.3 Left/right rotation Drilling capacity in steel (Ø): approx. 30 mm Overhang (spindle to column/table): approx. 290 mm. You are welcome to visit us for an inspection. We would be happy to arrange an affordable shipping service for you! You will receive a proper invoice. For foreign customers, a net invoice can also be issued. A valid VAT identification number is required. Subject to prior sale. Visit our shop and check out our other offers. The company names and trademarks mentioned are the property of their respective owners and are used solely for identification and description of the products. Deviations in technical data and errors in the description of the item may occur and are subject to change.

Condition: used, Technical details: x-travel: 600 mm y-travel: 300 mm z-travel: 360 mm range of revolution per miute: max horiz. 40- 2000 U/min spindle taper: vert. / horiz. SK 40/ SK40 range of revolution per miute: max zul. 40 - 2000 U/min feed:: 2-3600 mm/min quill travel: 80 mm Table dimensions: 810 x 420 mm total power requirement: 3 KVA Lhedsu U E T Iopfx Aiqel machine weight approx.: 1300 kg dimension machine xH: 1,8 x 1,35 x 1,95 m Milling machine with shaping head joint length 32-80mm with 10 x double strokes, 24-285 strokes/min Heidenhain 3-axis displays *

Condition: used, Year of construction: 1980, machine/vehicle number: 17209, functionality: fully functional, power: 1.5 kW (2.04 HP), input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, spindle mount: MK 3, height adjustment type: mechanical, rotational speed (max.): 1,750 rpm, rotational speed (min.): 130 rpm, total height: 2,000 mm, throat depth: 290 mm, Equipment: rotational speed infinitely variable, Used column drill press Manufacturer: Alzmetall Type: AB 3 ESV Machine number: 17209 Year of manufacture: 1980 Drilling capacity in cast iron: Ø 35 mm Drilling capacity in steel (diameter): 28 mm Spindle speed via 2 gear stages, 2 motor speeds, and continuously variable via a variator gear 130 - 1750 rpm Spindle taper: MK 3 Feed rate: 0.1; 0.2; 0.3 manually/automatically mm/rev Distance spindle/table min/max: 80 - 680 mm Table clamping surface: 500 x 370 mm Table rotatable: 360° Drill table adjustment: 600 vertical mm Overhang: 290 mm Quill stroke: 165 mm Column diameter: Ø 120 mm Lhodpfx Aiezldqusqsl Equipment: - Coolant system - Speed indicator - Work light - Röhm Spiro quick-change chuck 1-13 mm - Ejector on chain - Emergency stop button Machine weight approx.: 285 kg Machine dimensions approx.: 0.9 x 0.6 x 1.9 m (LxWxH)

Condition: used, Year of construction: 1983, machine/vehicle number: 18071, Ref. No. 25393 Technical Data: - Drilling capacity in steel ST 60: 28 mm - Maximum drilling capacity in steel ST 60: 32 mm - Drill spindle taper: MT 3 - Drill spindle stroke: 180 mm - Drill spindle speeds steplessly adjustable: - Range 1: 130 – 480 rpm - Range 2: 480 – 1750 rpm - 3 feeds: 0.1; 0.2; 0.3 mm/rev - Throat depth: 290 mm - Maximum distance table - drill spindle: 620 mm - Table with 2 T-slots: 450 x 450 mm - Height adjustable by rack-and-pinion and handwheel Lodpfx Ajy En I Heiqohl - Separate coolant unit - Drive: 400 V / 0.9 / 1.3 kW - Space requirement approx.: W 660 x H 1900 x D 700 mm - Weight approx.: 280 kg

Year of construction: 1997, condition: excellent (used), A used, very well-maintained cold circular saw from EISELE, equipped with a 370mm circular saw blade, steplessly adjustable hydro-pneumatic feed, pneumatic material clamping, coolant system, and documentation. Speed: 17/34 rpm Cutting range: Lodpfskfp D Tox Aiqehl Round 90°/45° right/left/30° right: 130/130/105mm Square 90°/45° right/left/30° right: 120x120/100x100/90x90mm Rectangle 90°/45° right/left/30° right: 200x100/140x100/100/100mm Pneumatic connection: 7 bar Working height: 900mm Machine dimensions (W x D x H): 865x1332x2175mm Weight: 460kg Further technical data can be found in the PDF document. Technical data and dimensions: Subject to change.

Condition: good (used), Drilling capacity: 32 mm Spindle mount: MK 3 Overhang: 290 mm Quill travel: 160 mm Table size: 510 x 300 mm Column diameter: 115 mm Feed via handwheel Spindle speed: 55 - 1450 rpm, continuously variable Motor power: 0.9 and 1.3 kW, pole-changing Power connection: 380 volts, 50 Hz Lhjdpfxszp Nfxj Aiqel Spindle speed via 2 gear stages, 2 motor speeds, and continuously variable via variator gear Table height adjustment via hand crank Slight damage to the cover (see photos) Space required (L x W x H): 1200 x 650 x 1900 mm Weight: 400 kg

Condition: good (used), functionality: fully functional, spindle mount: MK 3, rotational speed (max.): 1,450 rpm, rotational speed (min.): 55 rpm, table width: 600 mm, table length: 470 mm, For sale is an Alzmetall column drill press in good used condition, as shown in the photos. Technical specifications: • Manufacturer: Alzmetall • Model: AB3-ESV • Speed: approx. 55–1,450 rpm • Spindle stroke: approx. 180 mm • Feed rates: 0.1/0.2/0.3 mm/rev • Table dimensions: approx. 600x470 mm • T-slot width: approx. 14 mm • Year of manufacture: 1977 • Condition: Used, in working order Shipping costs via freight forwarder: approx. €190 International buyers are welcome! Lodpey Uxhisfx Aiqohl You will receive an invoice with VAT shown. Viewing/pickup is possible by appointment in 42855 Remscheid. Sale from location 42855 Remscheid, loaded ex works. Subject to errors in technical data and prior sale.

Condition: used, drilling capacity steel/GG: 15 mm spindle taper: 1 MK arm length: 300 mm table size: 210 x 300 mm spindle sleeve stroke: 110 mm Ledpfx Aevxpp Hsiqshl spindle turning speed range: 200 - 3000 rpm engine: 380 V, 1,1 kW space needed: 850 x 420 x 1860 mm weight: 220 kg

Condition: used, Year of construction: 1989, Technical details: bore capacity in steel (diameter): 28 mm throat: 285 mm bore stroke: 165 mm drill capacity in cast iron: Ø 35 mm spindle taper MT: MK 3 spindle speed:: 65 - 1.750 / 4x steples U/min feed: 0,1; 0,2; 0,3 manuell/automatisch mm/U Distance spindle/table max.: 80 - 680 mm table clamping surface:: 500 x 370 mm Ljdpfx Aieu Idkzjqshl table rotating: 360 ° drill table adjustment: 600 vertical mm column diameter: Ø 130 mm total power requirement: 7,5 kW weight of the machine ca.: 273 kg dimension machine xH: 0,9 x 0,6 x 1,9 m The machine can cut threads, change of direction left/right selectable via foot switch and/or depth stop Table can be swiveled and adjusted in height. *

Condition: used, Column drilling machine ALZMETALL, type AB 3 ESV Machine no. 15967, year of manufacture 1977 Drilling capacity 32 mm Spindle mount MK 3 – short quill Distance from spindle nose to table 545 mm (short quill) Distance from spindle adapter to table 395 mm (MK adapter) Overhang 290 mm Quill stroke 160 mm Table size Ø 545 mm Column diameter 220 mm Spindle speed 55 – 1450 rpm, continuously variable Motor power 1 / 1.6 kW Power connection 380 volts, 50 Hz - Spindle speed controlled via 2 gear stages, 2 motor speeds, and continuously variable via a variator gearbox - Pre-selection stage for high torque at low speeds - MK adapter from MK3 to MK4 - Automatic feed 0.1 - 0.2 - 0.3 mm/rev Lsdpfx Aoharwvoiqehl - Rotatable drilling table - Table height adjustment via hand crank - Heavy machine base with machined workpiece support surface (not original Alzmetall) - Lighting for the work area Space requirement L x W x H 1150 x 650 x 2000 mm Weight 850 kg Good condition
