Hydr. Press brake

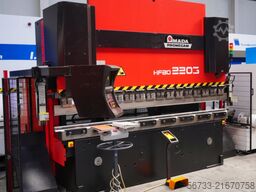

AMADA HFBO 220/3 3100 x 220 to

Condition: excellent (used), Technical specifications: Revision in 2024 Working length: 3100 mm Column width: 2760 mm Press force: 220 tons CNC control: OPERATOR II Controlled axes: Y1/Y2; X1/X2; R1/R2; Z1/Z2 Automatic crowning Motorized adjustable backgauge Thrust: 650 mm Ijdov Tcnlepfx Alzotl Stroke: 200 mm Working height: 960 mm Motor power: 17 kW CE mark Dimensions (length x width x height): approx. 3700 x 2400 x 2900 mm Weight: approx. 15 tons The seller is not liable for typographical or data transmission errors. The machine's appearance, technology, and wear are consistent with its age; used machines are sold without any warranty.

Condition: ready for operation (used), Year of construction: 2002, pressure 200 t chamfer lenght 3100 mm distance between columns 2550 mm stroke of upper beam 200 mm throat 300 mm dayligth 440 mm working feed 9.0 mm/sec return speed 80.0 mm/sec 265 bar Control konv. Ijdeyu U A Uepfx Alzjtl work height max. 965 mm total power requirement 15.0 kW weight 10500 kg range L-W-H 3360 x 1750 x 2800 mm - in checked conditions - machinevideo - ?v=EcmvsA4AGfo Equipment: - simple / conventional electro-hydraulic press brake - pivoting operation, front left - electric, infinitely variable depth adjustment (Y1 Y2 axis) * Torsion shaft for parallelism - Electro-motorized backgauge (X axis) * with handwheel for fine adjustment * on recirculating ball screws * 2x manually adjustable stop fingers - manual (jog mode) and automatic cycle selector switch - manual table crowning - split set of roe foot upper tools ... H = 210 mm - 1x as good as new universal V-die block, reversible * with anti-corrosion grease * V openings in mm : 12/35/25 50 10/20/16/16 75 * Dimensions of the block in mm : 100 x 100 - 1x 1V die (continuous) - V opening in mm : 100 - various / further bending tools - 1x free-moving 2-hand/foot control - Operating instructions (PDF)

Condition: used, Year of construction: 2017, machine/vehicle number: 75061713008, functionality: fully functional, operating hours: 11,255 h, power: 15 kW (20.39 HP), input voltage: 400 V, input current: 30 A, input frequency: 50 Hz, type of input current: three-phase, pressing force: 200 t, stroke length: 210 mm, table width: 104 mm, table length: 3,050 mm, table height: 858 mm, throat depth: 250 mm, clearance between the columns: 2,550 mm, oil tank capacity: 150 l, total length: 4,500 mm, total width: 1,400 mm, total height: 2,520 mm, overall weight: 8,000 kg, Equipment: CE marking, documentation/manual, safety light barrier, Brand: Hesse by Durma Press force: 200 tons Ijdpfxszcxb Dj Alzetl Year of manufacture: 2017 Bending length: 3050 mm Includes various tools Price: 35,000,- EUR (net)
