AMR conveyor belt on chassis, telescopic - 1 unit

AMR

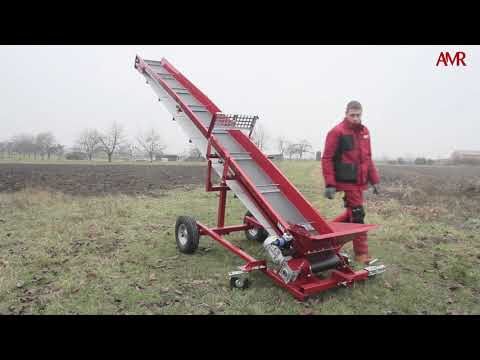

This robust conveyor belt, which has already proven its worth thousands of times in the AMR sawing machines QUATROMAT and SOLOMAT, is now also available separately on a 25 km/h car chassis with a ball-head coupling.
- For conveying logs or similar materials from sawing machines, etc.
- Belt width 350 mm
- Belt length 5,000 mm
- Height of the feed hopper approx. 600 mm
- Hand winch for extending and retracting the conveyor belt via a solid toothed rack
- Discharge height can be flexibly adjusted between 1,700 and 3,000 mm using a second hand winch
- Drive via a 4 HP Briggs&Stratton gasoline engine
- Belt speed approx. 0.4 - 0.8 m/s
- Divided segments of the conveyor belt
- Incl. chassis with pneumatic tires and car ball-head coupling
Itsdpfxez Uyz To Ag Aon
- Two additional, swiveling rollers for easy manual movement of the conveyor belt
- Towing hitch can be removed during operation and stored on the side of the conveyor belt
- Dimensions of the loading hopper 700x400 mm (L x W)
- Dimensions in transport position 260x120x100 cm (L x W x H)
- Weight approx. 325 kg
- In a stable, proven AMR quality

The listing was translated automatically. Translation errors are possible.
