VFFS Line
AMTEC VFFS-SYS LP 50-L ECO

Name: AMTEC VFFS-SYS LP 50-L ECO
Brand: AMTEC
Availability: InStock

Year of construction

2025

Condition

New

Location

Hamburg

Machine data

Machine type:: VFFS Line

Manufacturer:: AMTEC

Model:: VFFS-SYS LP 50-L ECO

Year of construction:: 2025

Condition:: new

Price & Location

Location:: Hamburg

Call

Details about the offer

Listing ID:: A187-21056

Reference number:: GE-VW1381-CPL-ECO

Update:: 14.03.2025

Description

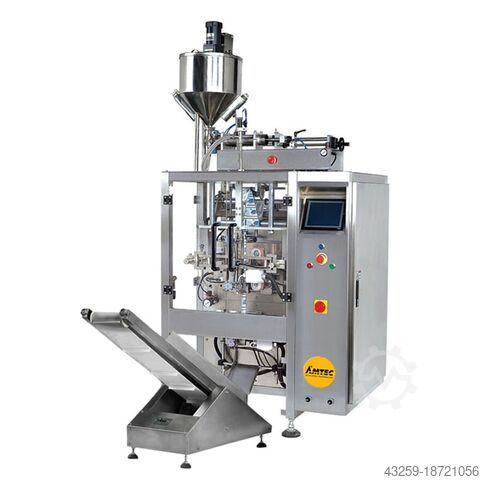

Complete dosing and packaging system for liquids including tank, liquid pump and outfeed conveyor. Suitable for viscous and non-viscous liquids such as cosmetic cream, tooth paste, skin lotion, shampoo, mayonnaise, ketchup, honey, fruit jam, edible oil, vinegar, juice, milk etc. The vertical packaging machine (VFFS) is equipped with PLC (control via color touchscreen user interface, different languages available e.g. English, German, etc.), date printer, automatic program set-up, mark sensor registration control, quick change former assembly, pneumatic sealing unit, servo motor film pulling, double pulling possible, air exhausting device, supporting device of finished bags, hole punching device, suitable for PE film (possibly additional costs for the PE unit). - Specifications of VFFS packaging machine: filling range: up to 3000ml; film width: max. 520mm; bag size (mm): min.-max. L(80-400)xW(80-250); max. speed of the machine in neutral: 50 cycles/min; stainless steel 304; 220V, 4kW, 6bar; 0.4m³/min; packaging machine dimensions LxWxH: approx. 1150x1790x1650mm; machine weight: 600kg. - Specifications of tank and liquid pump: Tank capacity approx. 50l (individual customizing possible); height: approx. 70mm; liquid pump is in different versions available such as: 10~150ml, 150~500ml, 500ml~1L, 1L~2L, 2L~5L etc. The pump system can be customized to meet individual customer/product requirements (possibly additional costs), dimensions of tank and pump depends on it. The outfeed conveyor has a stainless steel 304 frame. - Specifications: conveying speed: 30m/min; 220V, 0.55kW; conveyor dimensions LxWxH: approx. 1850x550x1230mm, weight: 80kg. Total dimensions of complete system approximately L1780xW3640xH1720mm, depending on final layout. Generally the system has to be customized to meet individual customer/product requirements. Therefore deviations of shown specifications of modules and machines are possible. Main components: Color touchscreen SIEMENS, PLC controller SIEMENS, servo motor SIEMENS, cylinder AIRTAC, solenoid valve AIRTAC, relay OMRON, film pulling motor SIEMENS.

That machine/system is available in different versions for different packaging sizes and with different packaging speeds.
Kedpfsv Nmlaox Akwodt

Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty.
