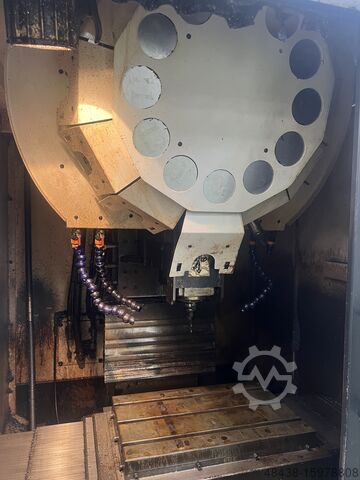

Machining center

Ares Seiki R 4530

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: Q0EC156, travel distance X-axis: 450 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 300 mm, controller model: Fanuc 0i MD, spindle speed (max.): 10,000 rpm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel X: 450 mm Travel Y: 300 mm Travel Z: 300 mm Tool changer: 12-position Spindle taper: BT30 Spindle speed: 10,000 rpm MACHINE DETAILS Controller: Fanuc 0i MD EQUIPMENT Various tool holders Operating manual Ledpfx Agjx Agtyjdohd

Year of construction: 2001, condition: used, Technical details: x-travel: 400 mm y-travel: 300 mm z-travel: 500 mm table clamping surface:: 400 x 300 mm table load: 50 kg semi-automatic operated: LASERSOFT 3D Lhsdpjikbtnefx Agdjd laser capacity: 100 W total power requirement: 27 kVA weight of the machine ca.: 2,5 t dimensions of the machine ca.: 3 x 3,5 x 2,8 m CNC engraving/texturing/labeling/contouring-laser maschine, approx. 9.000h "machine on", approx. 5.500h "laser on" *

Condition: good (used), Year of construction: 2007, travel distance X-axis: 750 mm, travel distance Y-axis: 750 mm, travel distance Z-axis: 725 mm, CNC control Sinumerik 840D NC-rotary table B-axis automatic tool changer for 320 tools pallet changing device, 2 pallets 500 mm x 500mm coolant through spindle device IKZ (80 bar) chip conveyor coolant device Technische Daten / technical details: X-Weg längs / X-travel longitudinal 750 mm Y-Weg senkrecht / Y-travel vertical 750 mm Z-Weg quer / Z-travel cross 725 mm B-Achse / B-axis 360 ° Spindelaufnahme / spindle taper HSK 63A Drehzahlbereich Spindel / spindle speed 50-10000 Upm /rpm Werkzeugplätze / tool places in changer 320 Vorschub / infeed 60000 mm/min Ljdpfx Agsq Ui Hqedshd Eilgang / rapid feed 60 m/min Antriebsleistung Spindel 40/100% ED / drive capacity spindle 40/100%ED 37/24 kW Gewicht der Maschine ca. / weight ca. 15000 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: excellent (used), mileage: 582,537 km, first registration: 04/2009, fuel type: diesel, axle configuration: 10x4, fuel: diesel, brakes: retarder, color: white, driver cabin: sleeper cab, gearing type: mechanical, emission class: euro5, Year of construction: 2009, Equipment: ABS, air conditioning, crane, cruise control, electric window regulation, parking heater, power mirror, retarder, soot filter, spoiler, = Additional options and equipment = - Aluminum fuel tank - Low noise emission - Speed limiter - Refrigerator - Air suspension - Air horn - Particulate filter - Sun visor - Stability control - Auxiliary heater - Toolbox - Power take-off (PTO) - Central lubrication system = Further information = Axle configuration Front axle 1: Steered Front axle 2: Steered Rear axle 1: Steered Rear axle 2: Twin tires Rear axle 3: Twin tires Weights Unladen weight: 36,399 kg Payload: 17,601 kg Gross vehicle weight: 54,000 kg Functional Mast: Telescopic (8 sections) Mast length: 24 m Lifting capacity: 30,000 kg Lifting height: 2,400 cm Crane: FASSI F1500AXP.28, mounted behind the cabin Superstructure brand: FASSI F1500AXP.28 CE marking: yes Condition Technical condition: very good Ljdeuxu Thepfx Agdjhd Visual condition: very good Financial information Price: On request Identification Registration number: BV-XP-06 DAF XF 105.510 10X4 Tractor Unit + FASSI F1500AXP.28 Crane EURO 5 L PACKAGE 480 HP DRIVE 10X4 WHEELBASE 570 CM AIR SUSPENSION XF SLEEPER CAB WITH AIR CONDITIONING, AUXILIARY HEATER, REFRIGERATOR MANUAL TRANSMISSION FIFTH WHEEL MULTIPLE TOOLBOXES FASSI F1500AXP.28 CRANE 150 T/M CRANE!!! 2X OIL COOLERS FOR CRANE HYDRAULICS 8X HYDRAULICALLY EXTENDABLE WORKING HEIGHT 24 METERS MAX LIFTING CAPACITY 30,000 KG MAX LIFTING CAPACITY AT 19.4 METERS 4,465 KG CENTRAL LUBRICATION SYSTEM FOR THE CRANE 4X OUTRIGGERS RADIO REMOTE CONTROL FOLLOW US ON INSTAGRAM: GEURTSTRUCKS WE SPEAK GERMAN WE SPEAK ENGLISH HABLAMOS ESPANOL

Condition: ready for operation (used), Year of construction: 2022, spindle motor power: 5,500 W, spindle speed (max.): 6,000 rpm, total height: 1,858 mm, product length (max.): 3,675 mm, number of axes: 7, General Data Ljdpfxjx Ixigo Agdehd Measurements height 1858 mm Dimensions Machine Length 3675 mm Main Drive Number of axis 7 Spindle Speed 6000 RPM Spindle motor power 5.5 kW Technical Specification Driven Tools yes This 7-axis NAKAMURA Tome WT150 II was manufactured in 2020, featuring dual 12-tool turrets and motorized positions for enhanced flexibility. It includes a high-pressure coolant pump and a bar feeder interface with an LNS Quick Load Servo 80 S2. Ideal for complex turn-mill operations, consider the opportunity to buy this NAKAMURA Tome WT150 II turn-mill centre. Contact us for more information about this machine. Application Types Turning

Condition: used, Year of construction: 2014, INDEX C200 CNC Lathe 3 Turrets 2 spindles Fanuc Control: 31i-Model B Axial Motorized Switches: 6 pcs Radial Motorized Switches: 13 pcs Tool Holders: 11 pcs Boring Bar Holders: 21 pcs Pin: 1 pcs Loader Bushings + Sleeves: Ø51/Ø46/Ø41 New MBL loader bushings: 2 sets 2 optical scales overhauled by HEIDENHAIN 1 Balluff Socket Gantry Arms Box with various sensors and proximity switches and cables Motorized Belts: 6 pcs Set of anti-vibration bushings for MBL loaders Start-up time: On time: 37946 Hydraulic hours: 37,500 Production time: 26,500 Lsdpfsxxm Hfox Agdjhd With MBL Bar Feed

Condition: ready for operation (used), Year of construction: 2008, operating hours: 27,167 h, functionality: fully functional, Technical Data – HERMLE C 40 UP Control System: - Heidenhain iTNC 530 - Travel X/Y/Z: 850/700/500 mm Options: - Heidenhain DNC - DXF Import - Kinematic Opt iTNC Main Spindle: - Speed: 18,000 rpm - Tool Holder: HSK-A63 Tool Magazine: - Additional Magazine ZM43 Feed / Axes: Ledpfexx Rxrsx Agdjhd - Linear guideways – Dynamic Version - Table variant: NC-SRT Ø 420 mm, worm gear drive - Table axis: A-axis offset from center - Table specification: Pallet clamping system Coolant System: - Internal coolant supply 80 bar - Coolant filter type: Paper band filter for internal coolant system Chip Disposal: - Scraper belt conveyor Cab / Safety: - Base structure - Automatic cabin door - Manual roof cover - Laminated safety glass window Electrics: - Frequency: 50 Hz - Country key: DE Pallet Automation: - Pallet changer: PW160, 400 × 400 mm - Pallet storage MMS / Measuring Systems: - External MQL (Minimum Quantity Lubrication) - Tool breakage monitoring A2 Blum - Heidenhain touch probe - Prepared for additional touch probe Software / Options: - Event Messenger - Tool identification HSK - Machine license: TCS-Soflex - System monitoring Free Accessories: - Electronic thermal compensation - Electronic hand-held control module - Oil mist extraction (prepared & with post filter) - Flange for oil mist extraction - Sealing air for scales - Chip washdown gun - Bed flushing - Internal & external air blast - Signal light - Test documentation - Test protocol: C 40 iTNC 530 PW160

Condition: used, TECHNICAL DETAILS - Number of axes : 4 MILLING SPINDLE - Tool holder type : BT30 - Spindle power : 4,9 [kW] - Spindle speeds : 16.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 700 x 400 x 300 [mm] - Rapid traverses rates (X/Y/Z) : 50 / 50 /56 [m/min] - Cutting feed rates (X/Y/Z) : 1 - 30.000 [mm/min] - Distance table / spindle nose (min./max.) : 330 - 630 [mm] Lhsdpoxzu T Sefx Agdjd TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 21 - Tool exchange time : 0,8 [sec] TABLE - Table dimensions : 800 x 400 [mm] - Maximum weight upon table : 250 [kg] POWER SUPPLY - Supply voltage : 220 [V] - Total installed power : 9,5 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.050 x 2.220 [mm] - Machine height : 2.497 [mm] - Machine weight : 2.400 [kg] MACHINE HOURS - Number of hours under power : 23.456 [h] - Number of working hours : 16.703 [h] EQUIPMENT - CNC : Brother CNC-C00 - Interface : Ethernet / USB - Electronic handwheel - CNC option : extanded Memory 500 Mo - CNC option : High accuracy mode BⅡ - Type of divisor : 4e axe CNC intégré * manufacturer : YUKIWA * model : DRC170-EU * travel 4th axis : 360 [°] * indexing precision 4th axis : 0,001 [°] * clamping diameter : 140 [mm] * center height : 135 [mm] * with counter bearing * Coolant tank : 150 [l] * with high-pressure pump : 15 [bars] * With cabin washing - Coolant through spindle - Tool probe - Electric transformer

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, The machine is currently operating in an Italian high-end facility specializing in individual components and custom manufacturing for Formula 1 as well as the aerospace sector. The machine is in exceptional condition. Photos are available upon individual request and under strict confidentiality. CNC turning/milling center (multitasking) with full 5-axis simultaneous machining - 2 turning spindles (main spindle + sub spindle) - B-axis milling head (swivelling milling head) + C-axes on both turning spindles - Designed for complete machining (turning + milling + drilling + threading + contouring) Working area / capacities: - Max. turning diameter: 640 mm - Max. turning length: 1,100 mm - Distance between spindle noses (min./max.): 250 / 1,350 mm - Distance between centers (min./max.): 125 / 1,225 mm - Bar capacity / spindle bore: 71 mm - Chuck diameter (typical for A2-8 configuration): 254 mm (10") Main spindle (left): - Spindle nose: A2-8 - Bar capacity: 71 mm - Speed range: stepless up to 4,500 rpm - Spindle power (depending on spindle package): approx. 22/18.5 kW (alternatively 15/11 kW available depending on package) Sub spindle (right): - Design: fully-fledged sub spindle (workpiece transfer/complete machining) - C-axis available (for milling/indexing operations) - Clamping device: hydraulic chuck (compatible with A2-8 configuration, typically 10") Milling unit / 5-axis kinematics: - B-axis swivel range: 225° (−120° / +105°) - Y-axis: ±125 mm (250 mm total) Lhjdpfx Ageynmglsded - X/Y “square stroke” / machining window: 250 mm × 250 mm - X-axis undercut below spindle center: 125 mm (for extended machining range) - C-axis on main and sub spindle (C1/C2) Tool / milling spindle (typical version): - Milling spindle in B-head for drilling/milling/threading/simultaneous machining - Speed (depending on package): approx. 8,000 rpm (higher speeds optionally available) - Power (depending on package): typically up to 18.5 kW (package dependent) Tool handling: - Automatic tool magazine (ATC): 120 positions - Automatic tool changer (magazine/ATC) Control / software: - Nakamura NT-Smart X user interface / process management - 5-axis capable CNC platform (CAM-compatible complete machining, simultaneous machining) Typical applications and process capability (for your listing): - Complete “done-in-one” machining: turning + milling + drilling + threading + 5-axis contours

Condition: used, functionality: fully functional, Year of construction: 2001, Press force 85 t, Bending length 2050 mm, Distance between uprights 1750 mm, Control DELEM, Stroke 215 mm, Throat depth 410 mm, Total power 13 kW, Weight 8,750 kg, Machine dimensions 3190 x 2100 x 2375 mm Ledpfxow Imq Ro Agdshd
