Coil Reel & StraightenerARKU
RM 5035.4/21
Machine data
- Machine type:
- Coil Reel & Straightener
- Manufacturer:
- ARKU
- Model:
- RM 5035.4/21
- Year of construction:
- 1989
- Condition:
- used
Price & Location
- Seller location:
- Reckholder 1, 9527 Niederhelfenschwil, Switzerland
Technical details
- Number of straightening rollers:
- 21
- Coil weight:
- 4,000 kg
- Coil outer diameter:
- 1,500 mm
- Material thickness:
- 8 mm
- Sheet thickness steel (max.):
- 8 mm
- Coil width:
- 350 mm
- Sheet thickness (max.):
- 8 mm
- Load capacity:
- 4,000 kg
- Material width:
- 350 mm
- Overall weight:
- 13,000 kg
- Power:
- 38 kW (51.67 HP)
- Controller manufacturer:
- SIEMENS
- Controller model:
- S5 115 U
- Year of last overhaul:
- 2006
Details about the offer
- Listing ID:
- A202-24305
- Reference number:
- 42744
- Update:
- 06.10.2025
Description
.. PLC SIEMENS S5 115 U
OVERALL SPECIFICATIONS (COIL LINES)
.. sheet width max.: 350 mm
.. sheet thickness max.: 8 mm
Crsdpfoxlhlvsx Agmeh
.. coil weight max.: 4 to
.. feed velocity max.: 10 m/min
.. feedstock transport direction: left to right
DECOILER
.. design: single reel
.. sheet width max.: 350 mm
.. coil weight max.: 4 to
.. max. diameter of coil: 1500 mm
.. mandrel expansion range from: 370 mm
.. mandrel expansion range up to: 530 mm
.. feed velocity max.: 10 m/min
LEVELLER UNIT
.. sheet width max.: 350 mm
.. sheet thickness max.: 8 mm
.. number of leveller rolls: 21
.. diameter of leveller rolls: 50 mm
.. number of infeed-/outfeed rolls: 2
.. diameter of feed rolls: 120 mm
.. feed velocity max.: 10 m/min
ELECTRICAL SPECIFICATIONS
.. total power consumption: 38 kW
.. mains voltage: 380 V
.. mains frequency: 50 Hz
DIMENSIONS / WEIGHTS
.. total weight approx.: 13000 kg
Line consisting of
+ Uncoiler ARKU AH4000/MSG-4Q
+ insert attachment ARKU
+ precision leveller ARKU RM 5035 4/21
+ band loop ARKU

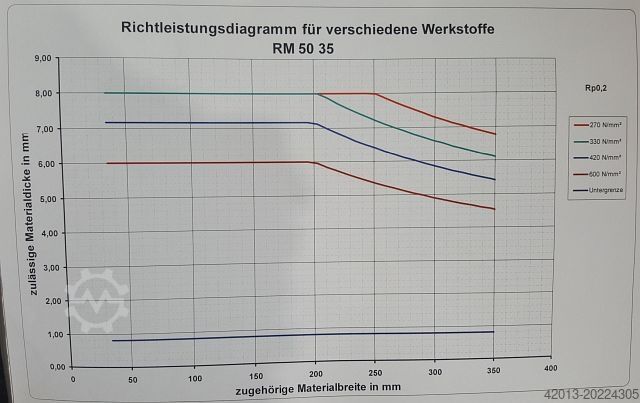

levelling capacity according to diagram
