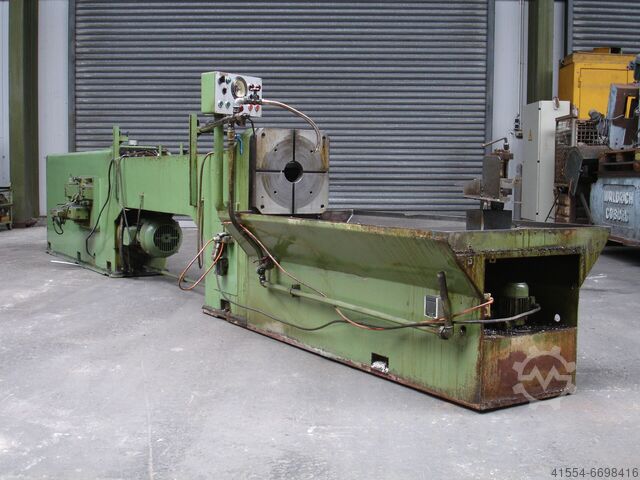

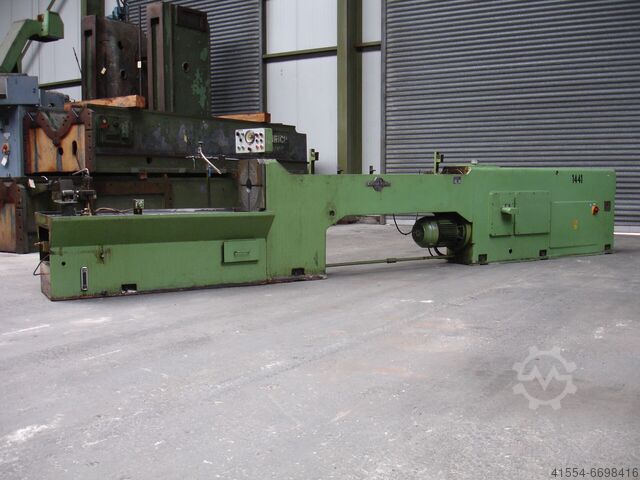

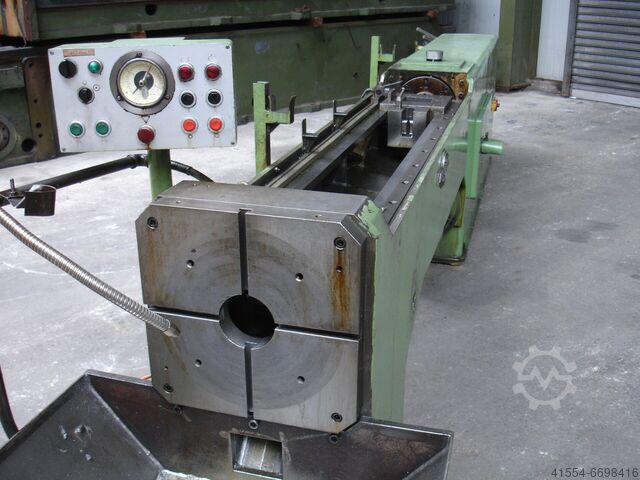

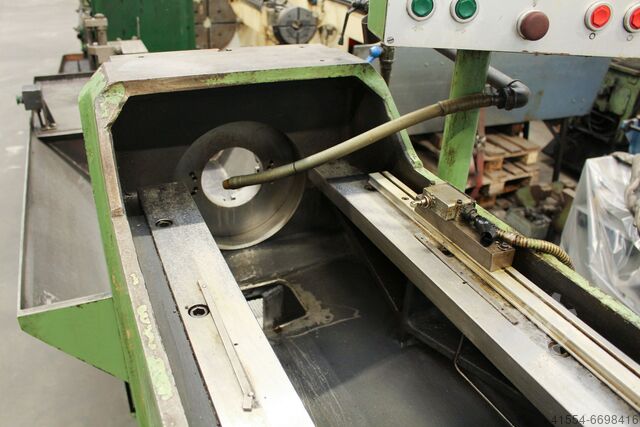

Horizontal internal broaching machine

Arthur Klink RIW 16x1800

Condition: good (used), max. wheel diameter 180 mm gear width 58 mm Fpsdpfxeuayw Sj Abpop max. module 4 min. module 0,5 strokes per minute 200 - 710 total power requirement 3 kW weight of the machine ca. 3 t Very good condition, change gears,... Year of construction: Approx. 1964

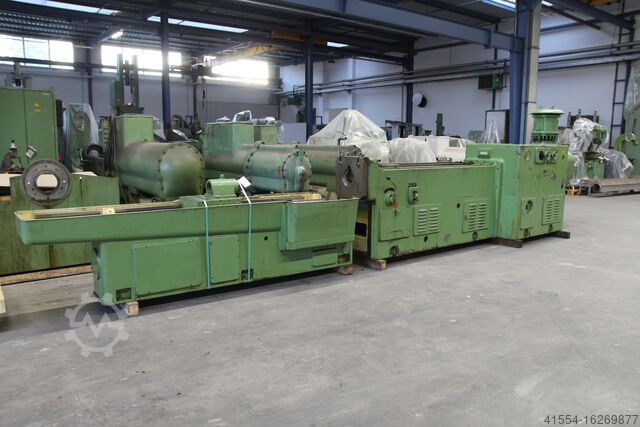

Year of construction: 1965, condition: good (used), functionality: fully functional, machine/vehicle number: 2549, General / technical data: used horizontal hydraulic internal broaching machine in a good condition according to age with manual tool feeder in heavy design clearing stroke: 2.000mm Tractive force: 25,000 kg (250KN) Mounting in the drawbridge: Ø 105mm Cylindrical Through-hole in the clamping table: Ø 125mm Workpiece clamping surface: 440mm x 440mm Workpiece diameter: max. approx. 800mm (due to the tool trough of the tool feeder) Cutting speed: hydraulically infinitely variable from 1.5 m/min to 7 m/min Return speed: hydraulically infinitely variable from 7 m/min to 25 m/min Oil volume: hydraulics approx. 450L / coolant approx. 100L Space requirement of the machine: (w x d x h) approx. 8,400 mm x 1,350 mm x 1,800 mm (without working area) Power supply: 380Volt 50 HZ Connected load: 19kw Equipment: - the machine has a mechanical hydraulic control for the clearing & return stroke - the machine has an integrated coolant system - the machine has a manually operated tool feed system - The broaching carriage with the pulling head holder is guided flat on both sides. - The machine has an adjustable tractive force limiter Fedpfx Aotuuvzobpepp - Tractive force display Accessories - 1 universal pulling head for flat shafts up to a maximum width of approx. 40 mm - dividing head (see pictures) - Various special fixtures and clamping devices - Machine documentation Remarks: The machine can be used for the production of keyways with flat broaching tools, as well as for profile broaching. In combination with the machine bed of the machine and the stable broaching tool feeder, the machine is very well suited for heavy profile broaching tools. The machine is used and is in good condition for its age. The machine is available for inspection in our warehouse. The machine is new in our stock and is currently not technically or visually refurbished. Pulling heads for profile broaching are available on request, depending on DIN standard, dimensions and stock.

Condition: excellent (used), Year of construction: 2008, Beam on: 21,660 h Fodpfjxfim Iex Abpjpp Laser on: 42,130 h
