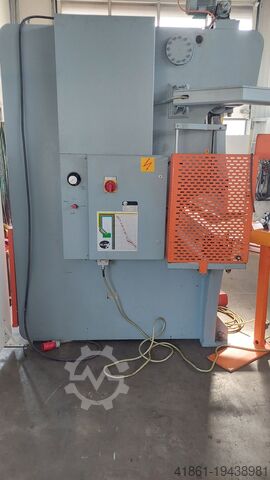

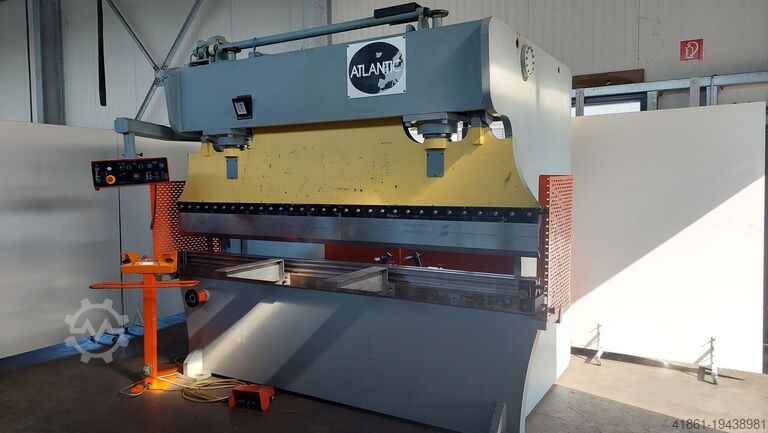

Hydr. Press brake

ATLANTIC HPAT 30/200

Condition: good (used), Year of construction: 1991, pressure 300 t chamfer lenght 4100 mm distance between columns 3710 mm stroke - stepless adjustable 250 mm column arm 330 mm dayligth 500 mm table height 940 mm table width 250 mm working feed 7.0 mm/sec return speed 90.0 mm/sec Control konv. operating pressure max. 305 bar voltage 380 V total power requirement 22.5 kW weight 25200 kg range L-W-H 4320 x 2100 x 3500 mm well-maintained condition (!!) - in checked condition - machine video - ?v=rPOBwTfVReo Equipment: - simple, conventional hydraulic press brake Gedpfoxab I Tsx Abpskd - swiveling control panel, left front - electro-motoric back stop (X axis) * adjustment via front control panel (button) * with analog position display * fine adjustment via handwheel, front - with 3x stop fingers, manually adjustable - electro-motoric depth adjustment (Y1+Y2 axis) * with analog position display - 1x split set of 85° deer foot upper tool - 1x MultiV - universal die block, with several V-openings - 2x front, stable support arms - 1x freely movable double foot switch - 1x freely movable 2-hand control - side safety device (swivelling doors) - rear safety device (sliding door) - original operating instructions

Condition: used, Year of construction: 1991, pressure 75.0 t chamfer lenght 2600 mm distance between columns 2100 mm stroke of upper beam 100 mm throat 200 mm dayligth 280 mm working feed 8.0 mm/sec return speed 55.0 mm/sec 330 bar Control konv. work height max. 840 mm total power requirement 7.5 kW weight 4700 kg range L-W-H 2900 x 1450 x 2100 mm from a prototype construction In good condition (!!) - in checked conditions - machinevideo - ?v=3KZF0BT8dOQ Features: - Simple electro-hydraulic press brake, including torsion bar - Pivoting control panel, front left - Electro-motorized + stepless depth adjustment (Y1 + Y2 axes) - Manually adjustable material backgauge * Manually adjustable with hand crank - from the front * Includes analog position indicator * 2 manually adjustable stop fingers - 1 split pointed upper tool set - "HACO" holder - 1 rotating MULTI V die block (lower tool) Gjdpfx Aexabwbebpokd - Side guard (pivoting doors) - 1 freely movable double foot switch - 2 sturdy front material support arms (homemade) - Operating instructions (PDF)
