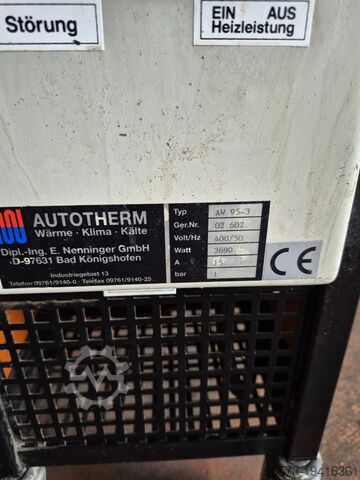

AW 95-3

AUTOTHERM

Condition: used, Autotherm Type: Autotherm AW 95-12/VK/E temperature control unit Autotherm AW95-12_VK temperature control unit for water/glycol temperature control (fully overhauled) Autotherm AW temperature control unit: For highly precise temperature control of water Autotherm temperature control units are used in various areas of industry, research, and laboratory applications. Temperature control units, for example, supply tools, open baths, double-walled containers, heat exchangers, and heating chambers with temperature-controlled water to maintain them at the desired temperature with high precision. Application areas: Mechanical engineering, for example, in the solar and wind power industry, textile industry Plastics processing Chemical and pharmaceutical industries Paper manufacturing Medical technology Food industry Research Autotherm AKW AW95-12/VK temperature control unit Temperature range: RT°C / +95°C Heating capacity: 12.0 kW Cooling capacity: 18.0 kW Passive cooling system via heat exchanger / connection to a cooling water network required Rated power: 14.5 kW Dimensions: 600 mm x 840 mm x 910 mm Power consumption: 400 volts / 50 Hz 13400 watts, 19.6 A, 5.1 bar Condition: used Scope of delivery: (See picture) (Changes and errors in the technical data are subject to change!) Lsdpfezhkb Ejx Amzehn We will gladly answer any further questions you may have by phone.

Condition: used, Autotherm Type: Autotherm temperature control unit AWF 130-27/VK/6K 6-circuit temperature control unit Without active refrigeration unit! According to the enclosed technical brief: Temperature range: -40°C ... +85°C (extended temperature range -40°C…+130°C) Increased heating capacity: 27 kW instead of 18 kW Includes 1x temperature control in the main circuit Includes 6x temperature measurement in each supply line Includes 6x temperature measurement in each return line Includes 6x flow rate and pressure measurement in each supply line Includes 6x flow rate and pressure control 1 l/min .. 12 l/min and 0.1 bar … 3 bar Including changeover control Including frequency inverter-controlled pump in the main circuit Including 6x 3-way valve Lhjdpfxezd Rtyj Amzen Includes 6x additional relief valve 2 … 12 bar, adjustable Preset to 2.4 bar Includes filling and draining device For all circuits, jointly/simultaneously Including 50-liter integrated tank Including pneumatic drain function Including S7 control system Energy saving and increased cooling capacity: An additional glycol circuit integrated into the temperature control circuit takes over the cooling of the consumer in a temperature range of +85°C to +30°C. The absorbed energy is transferred to the on-site < 20°C chilled water network. The cooling capacity at a supply temperature of +20°C is: 50 kW. This increases the cooling speed in this temperature range and saves energy due to the shorter running time of the refrigerant compressor. (The footprint of the base unit increases by approx. 0.3 m² according to the data sheet). Assembly in Rittal modular enclosure: 2x TS8 800x1000x2000 mm 1x additional, separate enclosure, min. 600x600x2000 mm (for control/electrical components) Supplied via on-site or optional cooling medium supply. Supply temperature, on-site cooling fluid -43°C, cooling fluid requirement 7.5 m³/h, continuously regulated. For cooling capacity, a cooling medium must be connected! Weight approx. 1200 kg Sold ex-works! Condition: used Scope of delivery: (See picture) (Changes and errors in the technical data are subject to change!) We will be happy to answer any further questions you may have by telephone.

Condition: good (used), functionality: fully functional, Power output: 6370 watts Lhsdpov R Edwjfx Amzon Maximum operating temperature: 95°C Medium: Water Two units available! Price per unit: 350 EUR - PRICE REDUCTION!

Condition: used, Autotherm ATK 2000 cooling system, 20.5 kW cooling system in a 20-foot container Technical data - Nominal voltage: 3/PE AC 50Hz 400V (DIN IEC 38) - Nominal power: 20.5 (31.5) kW - Nominal current: 50 (71) A - Supply line fuse: 80 A Mechanical data - Dimensions: (W x L x H) 2430 x 6800 x 4350 mm - Weight: 4800 kg - Supply: Flange SDIN2633 DIN100 PN16 - Return: Flange SDIN2633 DIN100 PN16 - Overflow / Drain: 2" internal thread - Well water inlet: 2" internal thread - Well water outlet: 2" internal thread - Adiabatic inlet: 3/4" internal thread - Filling: manual 3/4" internal thread Water circuit - Heat transfer fluid: Water/glycol (90 % / 10 %) - Flow pressure: max. 10.6 bar - Tank volume: 4000 liters Free cooling circuit - Pump type: Grundfos CR 45-1-1 AFAE-EUUE - Delivery pressure: ... 2.15 bar - Flow rate: 58 m³/h Consumer circuit - Pump type: (Pressure boosting system) Grundfos Hydro 2000 ME 2 CRE 32-6 AFAE-EUUE - Delivery pressure: max. 10.6 bar - Flow rate: max. 40 m³/h Lodpfx Amjuzhcuezohn 20-foot container AIS-DSC-22-28 External dimensions mm (L x W x H): 6,058 x 2,438 x 2,591 Internal dimensions mm (L x W x H): 5,898 x 2,352 x 2,390 Usable area inside m²: 13.88 Compact control Compact Control 2000 ME. Compact microprocessor control for stepless and cascade control of pumps with MGE motors and integrated frequency inverter for demand-dependent, energy-optimized operation of multi-pump systems. With automatic switching on and off of the individual speed-controlled pumps via a digital controller specially developed for centrifugal pumps. Grundfos R100 infrared handheld device and diagnostic unit: for commissioning, data monitoring, reading error messages and configuring Grundfos pumps. You can find more items - new and used - in our shop! International shipping costs on request!
