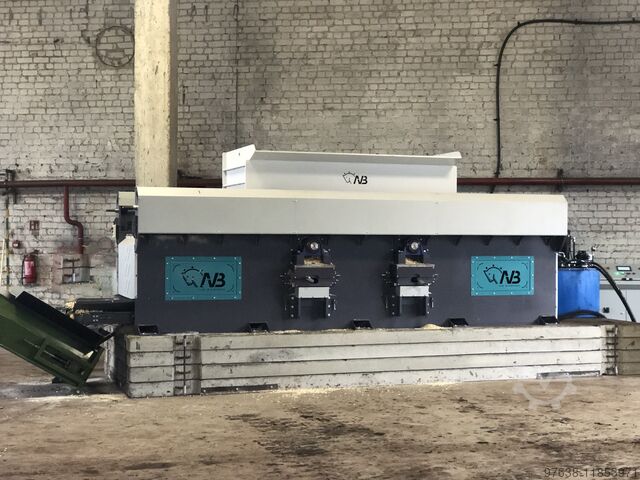

WOOD SHAVING MACHINE

AVB MACHINERY LLC AVB-HELIX100BB

TECHNICAL DESCRIPTION OF AVB-HELIX100BB
The size of the log hopper can be adjusted to meet the customer's needs. The hopper dimensions are 230-250 cm in length, 100 cm in width, and 110 cm in height. The cutter heads are designed to be movable for simple operation.
The hopper speed is adjustable to control the thickness and amount of shavings produced. It also has a sensitive shaving type for continuous use. The hopper is constructed with heavy-duty steel and has a total weight of 7,000 kg. Its dimensions are 540 cm x 165 cm x 185 cm.

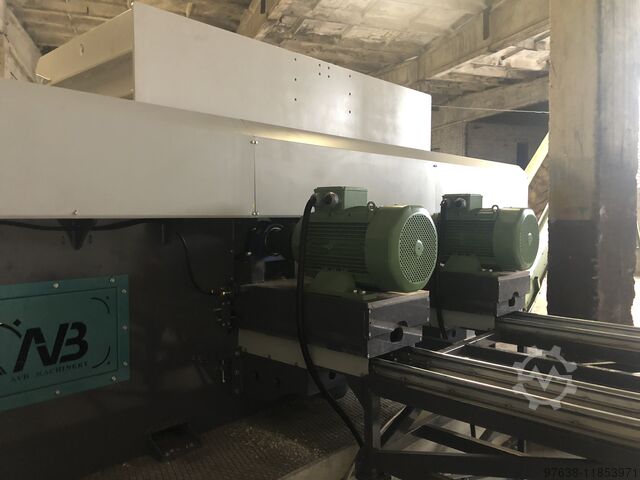

The cutter heads are run by two electric motors, each with a power of 37 kW. They operate at 3,000 RPM and are equipped with inverters.
The production rate for shavings is between 2,800 and 3,000 kilograms per hour.
double hydraulic cylinder to move the log hopper.
We offer a cutter head design that is particularly suited for small flake production, with the added benefit of being available for chicken farms. Additionally, we also have a larger flake option that would be suitable for horse stables.

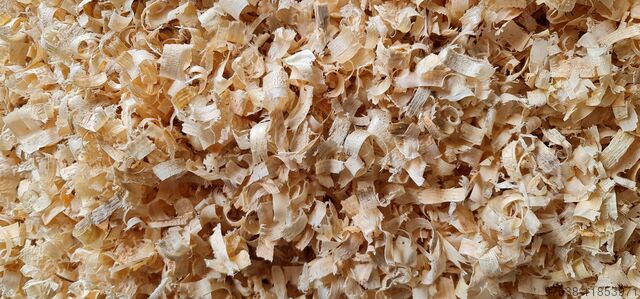

Our cutter heads are equipped with T.C.T. carbide blades and designed in a spiral helix type to create mini flakes. We place 400-500 pieces of carbide blade to ensure top-quality wood shavings for animal bedding industries. The size and thickness of the shavings can be easily controlled by adjusting the head RPM and the travel speed of the hopper.

Our bearings cups are equipped with high-quality heavy-duty types such as COC, TIMKEN, or SKF. Adding lubrication oil is hassle-free.

Our hydraulic motor has 15 KW power with a speed control unit drive. Additionally, we have an anti-jamming system between the plate and the hopper to prevent splinters.
Our machine can handle any type of wood, including slabs, about to the shape of the cutter heads. You can also use off-cuts and all types of residues for perfect results. If needed, we can add a pneumatic press to the machine hopper for even better performance.

TECHNICAL SPECIFICATIONS AVB-HELIX100BB

Number of Cutterheads 2
Operation Length of Cutter Head 100 cm
Number of Blades 500 T.C.T / cutter head
Power Supply 2 *37 KW = 74 KW( 99,23 HP)
Hopper Working Hydraulic
Hopper Dimensions mm 2200*1000*1000
Working Voltage 380 V 50-60 Hz
Gbsdpfenl Efxjx Abpsw
Conveyor Band Motor 1,5 KW
Hydraulic Motor 15 KW
Total Power 90,5 KW
Cutterhead Speed 3000 rpm
Cutterhead Diameter 250 mm
Shaving Depth 0,03- 0,5 mm
Max.Log Input Length 150-220 cm
Max.Log Input Width 10-95 cm
Working Distance 2200 mm
Machine Dimensions L5400xH1650xW1850 mm
Weight 7.000 Kg
Production Capacity 3000 kg/h
