Brushing machine

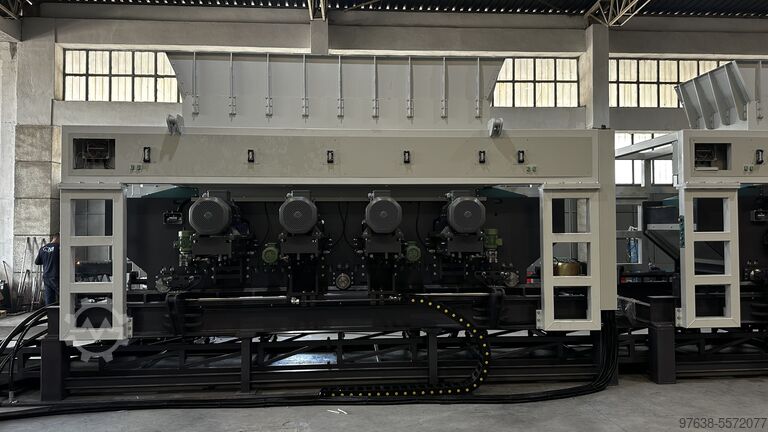

AVB Machinery LLC AVB-HELIX100ST4

FEATURES OF THE WOOD SHAVING MACHINES
 Bin size: 3000 mm depending on to customer's requirement
 Hopper is equipped with the Speed Control System
 The robust machine frame structure of single-piece steel construction
 Heavy body structure against vibration caused by long-term use of the machine
 Conveyor extraction: 1000 mm wide outfeed provided with a rubber band or PVC 4 mm thickness
 Direct motor operation with an independent control panel with a digital screen,
 PLC-controlled electric panel independent from the machine, minimum 5-6 meters away from the machine,
 Can be operated with 380V 50-60 Hz (additional transformers can be added for foreign countries operating at different voltages, optional)
 Adjustable knife heights and cutter heads
 Possibility to adjust shavings thickness between 0,4 and 1,2 mm(for straight blade models)

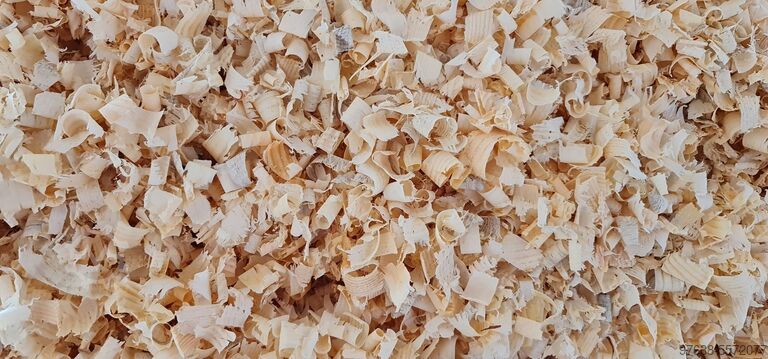

 Blades and speed can be varied to produce Large Flakes (Equestrian), Small Flakes (Poultry Layers), Fine flakes (Poultry Broilers)
 To avoid downtime, a few sets of spare blades should be ordered together with each machine.
 Shavings outlet: Gravity discharge from the cutter heads to the belt conveyor
 easy cutter head blade adjustment system;
 All cutter head blocks are moved out on the machine during the blade changing.
 We are also supported by our customers with blade purchasing,
 All parts used in our machines are CE certified and selected with the high-efficiency principle
 Knives T.C.T. Carbide 14*14*2,0 mm CERATIZIT Made in EU, bearings COC, motors use the highest quality Turkish or imported products (WEG, SIEMENS, optional).
 Automatic lubrication system for the whole machine's essential parts
 All machines will be CE standards
 The hydraulic system will work with the proportional valve.
 Double-armed hydraulic system for the extra power of heavy-duty work
 Control panel designed with AB (Allen Bradley), Siemens, Schneider, or ABB
 Modem Ethernet connection for the main company
 The wood shaving machine output will be on the right side or the left side
 digital display screen for control in one touch
 All blades Diamond 14*14 mm or 15*15 mm, 500 pcs long-life blades
 Directly mounted to the cutter head for all-electric motors against losing power
 Specially produced spiral helix mobile roller system with a T.C.T. carbide knife (first and only in Turkey)
 Separate the control panel and the user interface panel

TECHNICAL SPECIFICATIONS
Gjdpfx Afsgmbtqspjuh

Number of Cutterheads 4
Length of Cutter Head 100 cm
Number of Blades 500 Carbide/cutter head
Power Supply 4 *37 KW = 148 KW (198,5 HP)
Hopper Working Stationery
Hopper Dimensions mm 3200*1200*1000
Working Voltage 380 V 50-60 Hz
Conveyor Band Motor 0,75 KW
Hydraulic Motor 30 KW
Total Power 181 KW
Cutterhead Speed 2800 rpm
Cutterhead Diameter 230 mm
Shaving Depth 0,03 mm - 0,05 mm
Max.Log Input Length 150-310 cm
Max.Log Input Width 10-90 cm
Working Distance 2200 mm
Machine Dimensions L6450 x H3014 x W2514 mm
Weight 17.000 Kg
Production capacity: 4.500-5.000 kg/h
