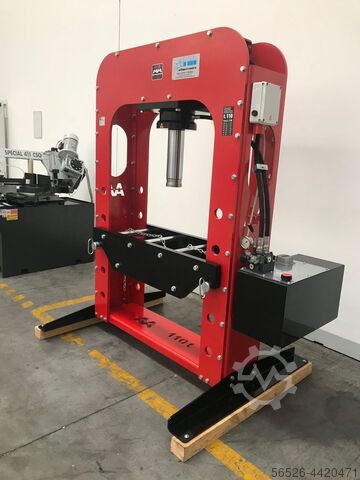

Straightening press

AXA P110 MR 110 Ton

110-ton electro-hydraulic press
Made in Italy
The P110 MR is equipped with:

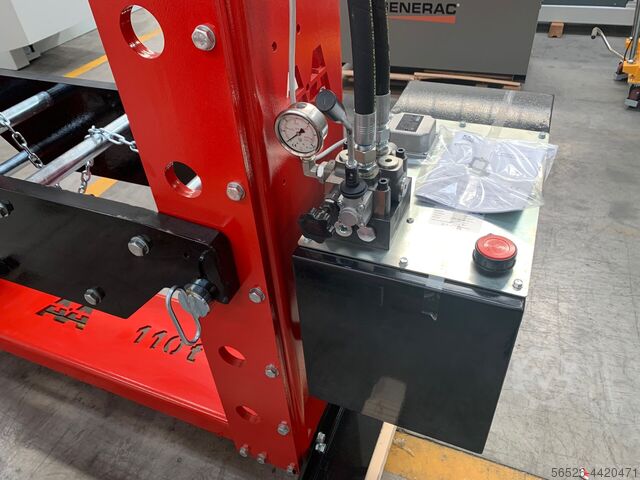

Immersed motor power unit, 400 V, 50-60 Hz.
Rapid approach and return pump, calibrated to 20 bar.
Adjustable pressure pump with handwheel for achieving the required power.
Maximum pressure valve with mechanical lock to prevent overpressure.
Manometer (standard) that allows for extremely precise calibration of the delivered power.

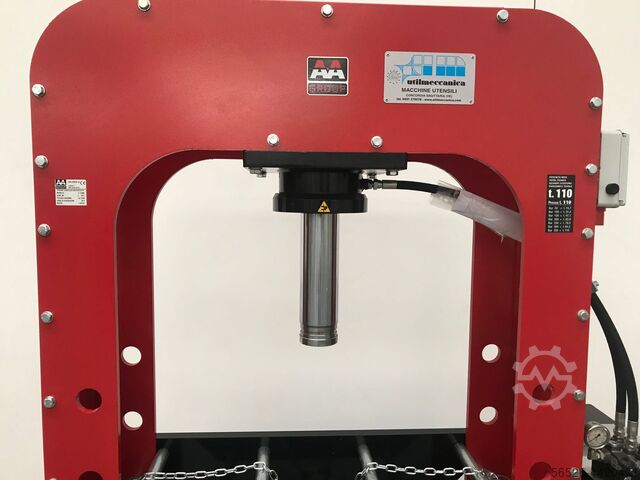

The P110 MR is the only hydraulic press composed of 2 columns in a monolithic structure made of FE 510 steel, laser-cut
without welding in the areas of greatest stress.
This feature gives it exceptional robustness. It is non-deformable and guarantees tight working tolerances.
The P110 MR is equipped with a 30-liter tank and has a rapid descent speed of 1,400 mm/min.
Weight: 1,100 kg
Maximum pressure: 350 bar
Maximum capacity: 110 tons
Rapid flow rate: 34 l/min
Slow flow rate: 5 l/min
Isdpefh R N Djfx An Isbc
Inner width between columns: 1004 mm
Rapid stroke advance: 1,400 mm/min
Slow stroke advance: 130 mm/min
Voltage: 400 V
Frequency: 50-60 Hz
Power: 3 kW
Maximum absorbed current: 7.3 A
Cylinder stroke: 300 mm
Cylinder diameter: 200 mm
Rod diameter: 110 mm
Piston descent speed: 23 mm/sec
Tank capacity: 30 liters
