Machining Center - Horiz./Vert.
AXA VHC 3 - 8000S

Year of construction
2005
Condition
Used
Location
Niederhelfenschwil Switzerland

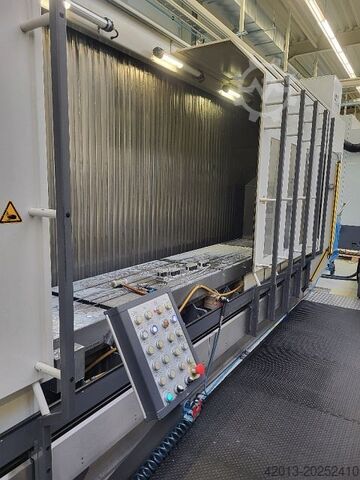

Machining Center - Horiz./Vert. AXA VHC 3 - 8000S
Machining Center - Horiz./Vert. AXA VHC 3 - 8000S
Machining Center - Horiz./Vert. AXA VHC 3 - 8000S
Machining Center - Horiz./Vert. AXA VHC 3 - 8000S
more Images
AXA VHC 3 - 8000S
AXA VHC 3 - 8000S
AXA VHC 3 - 8000S
AXA VHC 3 - 8000S
Show images
Show map

Machine data

Machine type:
Machining Center - Horiz./Vert.
Manufacturer:
AXA
Model:
VHC 3 - 8000S
Year of construction:
2005
Condition:
used

Price & Location

Seller location:
Reckholder 1, 9527 Niederhelfenschwil, Switzerland Switzerland
Call

Technical details

Travel distance X-axis:
8,000 mm
Travel distance Y-axis:
700 mm
Travel distance Z-axis:
850 mm
Controller manufacturer:
HEIDENHAIN
Controller model:
ITNC 530
Total height:
3,300 mm
Table width:
600 mm
Table length:
8,930 mm
Overall weight:
28,000 kg
Spindle speed (max.):
15,000 rpm
Space requirement length:
11,200 mm
Space requirement width:
3,300 mm

Details about the offer

Listing ID:
A202-52410
Reference number:
49506
Update:
10.10.2025

Description

CONTROLS
.. CNC controls HEIDENHAIN ITNC 530

BASIC DESIGN
.. basic design: moving column

WORKING RANGE -CUBIC-
.. number of processing axes (excl parallel axes): 5
.. X-axis travel: 8000 mm
.. Y-axis travel: 700 mm
.. Z-axis travel: 850 mm
.. rotating range B-axis from: 90 °
.. rotating range B-axis up to: -90 °
.. distance of axis of horizontal spindle - clamping surface (max.): 1030 mm

TABLE
.. table surface (left-right): 8930 mm
.. table surface (front-back): 600 mm

SPINDLE / HEAD
.. tool fixture: HSK A63
.. spindle revolutions (min): 30 /min
.. spindle revolutions (max): 15000 /min
.. tool fixture: HSK A63
.. drive power S6 40%: 30 kW
.. spindle torque S6 40%: 143 Nm

AXIS DRIVES
.. traverse velocity X (max): 10000 mm/min
.. traverse velocity Y (max): 10000 mm/min
.. traverse velocity Z (max): 10000 mm/min
.. rapid traverse X: 40000 mm/min
.. rapid traverse Y: 40000 mm/min
.. rapid traverse Z: 30000 mm/min

TOOL MAGAZINE
.. number of positions: 36
.. tool diameter max.: 85 mm
.. - with free neighbour positions: 135 mm
.. tool length max.: 400 mm
.. tool weight max.: 10 kg
.. tool changing time: 5 s

ELECTRICAL SPECIFICATIONS
.. mains power supply: 55 kVA
.. mains voltage: 400 V
.. mains frequency: 50 Hz

DIMENSIONS / WEIGHTS
.. space requirements -left/right-: 11200 mm
.. space requirements -front/back-: 3300 mm
.. total height: 3300 mm
.. total weight approx.: 28000 kg

ATTACHMENTS
Fgsdpfx Asxmb D Iefpoh
.. guideway covers: yes
.. chip conveyor: yes
.. coolant unit: yes
.. band filtration unit: yes
.. through spindle coolant attachment: yes
.. closed cabin: yes
.. European CE standards: yes


X = 8000mm or 2x 3750mm pendulum stroke (vertical)

- Internal cooling 40 bar
- Coolant tank 800 liters
- Belt filter
- 3 D radio measuring probe
- Raising the machine table by 70mm
- Table load 1200kg/m²

- Machines currently in storage and no longer powered
- 2 round tables with clamping cubes
