Used Spinner Vc850 for sale (3)

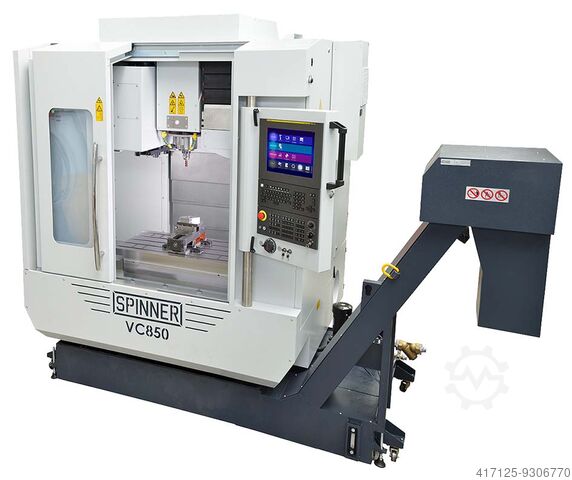

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, machine/vehicle number: VT0479, VC850 travels: X850, Y510, Z510 mm High-performance milling spindle up to 12,000 rpm as a built-in hybrid spindle with direct drive, without belt Tool holder on spindle SK40 DIN69871 with pull stud DIN69872-A / ISO 7388-3-AD TOOL MAGAZINE with 32 tool stations DIRECT MEASURING SYSTEMS in X/Y/Z axis SIEMENS 840DE control with the following basic features: - SPINNER - SPIOS 24" touch panel for I4.0 applications - Control panel height-adjustable, rotatable and tiltable for best ergonomics - incl. engraving cycles - 24" liquid crystal flat color screen with multi-touch functionality - User memory 2 GByte - 15 zero-point offsets - 1 free USB interface - Ethernet interface standard In the latest generation of SIEMENS "SINUMERIK ONE" control - SPINNER - SPIOS 24" touch panel for I4.0 applications - Control panel height-adjustable, rotatable and tiltable for best ergonomics - incl. engraving cycles - 24" liquid crystal flat color screen with multi-touch functionality - User memory 2 GByte - 15 zero-point offsets - 1 free USB interface - Ethernet interface standard SPINNER MULTI-CONTROL-WHEEL on the control panel, integrating the following functions into a single control element: - Handwheel function in jog mode - Feed override in automatic mode - Start button and feed influence in single-block setup mode, automatically resetting to 0% at the end of the block -> all important functions of the setup mode integrated into one control element - SHOPMILL - 3D SIMULATION - REMNANT MATERIAL RECOGNITION - DXF reader Fully integrated 1-axis TILTING TABLE, centrally mounted in the working area on the table, with: - Pivoting cheek approx. 580mm long for 3-sided machining - Swivel range of the A-tilting axis is infinite - Counter bearing to support the rotary table bridge UNIVERSAL CHIP CONVEYOR VC850 PREPARATION of the spindle FOR HIGH PRESSURE for the use of the additional tank up to 22 bar HIGH-PRESSURE TANK 22 bar Additional compressed air on the spindle head Compressed air centrally through the milling spindle, alternatively to coolant nozzle in the working area PREPARATION FOR SPINNER STANDARD MEASURING PROBE Wireless SPINDLE PROBE universal robot interface UNIROB CLAMPING HYDRAULICS incl. 2 pcs. 4/4-way VALVE for workpiece clamping up to 200 bar hydraulically STANDARD DOCUMENTATION GERMAN consisting of machine manual and CNC manuals is supplied in digital form on the control. Paper manuals available at an additional cost LIFTING LUGS for crane unloading, set consisting of 4 pcs. mandatory for crane transport STANDARD PAINTING two-tone in light gray RAL7035 and blue-gray RAL5008 Electrical design EUROPEAN STANDARD as follows: Operating voltage 3x400V +/-10% Mains frequency 50Hz (+/-2%) TN network (5-conductor) Notes: Bwedsy S Tpiepfx Af Hjn The price includes warranty services only within Germany. For new and demonstration machines, the images are not necessarily images of the individual machine, but of comparable machines. Accessories shown, such as clamping devices or tool holders, are only included in the scope of supply to the extent listed in the technical description. Ask for a detailed offer ex works. Visit our factory near Munich or one of our showrooms. We may have other offers for comparable machines. Subject to prior sale.

Condition: as good as new (ex-display), Year of construction: 2020, machine/vehicle number: VT0341, functionality: fully functional, High-performance machining center SPINNER VC850-5A Travel distances X850, Y510, Z510 mm High-performance milling spindle up to 18,000 rpm Power Pmax 20 kW / Nmax 66 Nm as a built-in hybrid spindle with direct drive, without belt Tool holder on the spindle HSK63 TOOL MAGAZINE with 32 tool stations DIRECT MEASURING SYSTEMS in the X/Y/Z axes In the latest generation of SIEMENS "SINUMERIK ONE" control system - SPINNER - SPIOS 24" touch operating panel for I4.0 applications - Operating panel height-adjustable, rotatable and tiltable for best ergonomics - incl. engraving cycles - 24" liquid crystal flat color screen with multi-touch functionality - User memory 2 GByte - 15 zero-point shifts - 1 free USB interface - Ethernet interface standard SPINNER MULTI-CONTROL WHEEL on the operating panel, integrating the following functions into a single control element: - Handwheel function in jog mode - Feed override in automatic mode - Start button and feed influence in single-block setup mode, automatically resetting to 0% at the end of the sequence -> all important functions of the setup mode integrated into one control element Electrical preparation for HOWIMAT 2-axis rotary tilting table on VC850/VC1150 2-axis ROTARY TILTING TABLE mounted on the right in the working area particularly rigid and space-saving, suitable for holding chucks or collets Bodpfx Ajy S Ttzsf Hswn TILTING AXIS: - Dividing accuracy +- 0.005 degrees - Swivel range 105 degrees - Maximum tangential moment 1,200 Nm ROTARY AXIS with direct drive via coaxial motor: - Dividing accuracy +- 0.005 degrees - Bore 80mm, spindle nose D=160 mm - Maximum tangential moment 500 Nm UNIVERSAL CHIP CONVEYOR VC850 PREPARATION of the spindle FOR HIGH PRESSURE for using the additional tank up to 70/80 bar HIGH-PRESSURE TANK 70bar with paper band filter for flushing centrally through the spindle Additional compressed air supply at the spindle head Compressed air centrally through the milling spindle Flushing gun in the working area PREPARATION FOR SPINNER STANDARD PROBING SYSTEM Wireless SPINDLE PROBE ADDITIONAL HOOD on top for a closed working area STANDARD DOCUMENTATION in German consisting of machine manual and CNC manuals is delivered in digital form on the control system. Paper manuals available at an additional cost. RING EYES for crane unloading, set consisting of 4 pieces absolutely necessary for crane transport STANDARD PAINTING two-color in light gray RAL7035 and blue-gray RAL5008 Electrical design EUROPEAN STANDARD as follows: Operating voltage 3x400V +/-10% Mains frequency 50Hz (+/-2%) TN network (5-conductor) Notes: The price includes warranty services only within Germany. In the case of new and demonstration machines, the images are not necessarily of the individual machine, but of comparable machines. Accessories shown, such as clamping devices or tool holders, are included in the scope of supply only to the extent listed in the technical description. Please request a detailed offer ex works. Visit our factory near Munich or one of our showrooms. We may have other offers for comparable machines. Subject to prior sale.

Condition: new, Year of construction: 2023, machine/vehicle number: VT0620, functionality: fully functional, operating hours: 174 h, High-Performance Machining Center SPINNER VC850 Travel ranges X850, Y510, Z510 mm "Advanced" configuration variant with patented guideway cover design Base machine configured as VC850-5A Including rotary-tilt table D=350mm High-performance milling spindle up to 12,000 rpm Power 22.6 kW / 108 Nm as built-in hybrid spindle with direct drive (no belt) This results in a particularly low machine height of only approx. 2,420 mm Spindle tool interface SK40 DIN69871 TOOL MAGAZINE with 48 tool stations MAGAZINE DOOR pneumatically operated within the work area DIRECT MEASURING SYSTEMS on X/Y/Z axes HEIDENHAIN TNC640 control, height adjustable, with angle-adjustable keypad: - Path control with 19" multi-touch screen in stainless-steel design PORTABLE HANDWHEEL HR510 FS "Advanced Function Set 3" option number 21 "CAD Import" option number 42 "KinematicsOpt" option number 48 "Advanced Function Set 1" option number 8 "Advanced Function Set 2" option number 9 "Touch probe functions" option number 17 Energy-saving function incl. automatic machine shutdown TNC 620 / TNC 640 Heidenhain software option "Heidenhain DNC" option number 18 Fully integrated 2-axis ROTARY-TILT TABLE SPRT-350 centrally mounted in the work area with: - Rotary table with faceplate D=350mm - Tilting range A-axis -110 / +46 degrees - Additional clamping plate approx. 200x350mm arranged to the left - Counter bearing to support the rotary table bridge - High-precision direct measuring systems centrally on both rotary axes - Hydraulic brakes per axis, holding torque 3,600Nm DUAL ROTARY FEEDTHROUGH in the center of the C-axis UNIVERSAL CHIP CONVEYOR VC850 discharging to the RIGHT from the machine PREPARATION of the spindle FOR HIGH PRESSURE for auxiliary tank use up to 70/80 bar HIGH PRESSURE TANK 70bar with paper band filter for central through-spindle flushing Blow air at the spindle head Compressed air centrally through the milling spindle Rinsing gun PREPARATION FOR SPINNER STANDARD PROBE Blum Wireless SPINDLE PROBE Spinner-Blum with tool interface matching the milling spindle Electrical PREPARATION FOR EXTRACTION AUTOMATIC DOOR for the workspace door Universal robot interface UNIROB I/O PACKAGE consisting of: 4 free M-functions with 2 PLC outputs I/O 24VDC 4 PLC inputs for feedback from the 4 M-functions Wired to terminal strip in the control cabinet STANDARD DOCUMENTATION 3D MODEL (CAM) LIFTING EYE BOLTS for crane unloading STANDARD 2-TONE PAINTING in light grey RAL7035 and blue grey RAL5008 Electrical design EUROPEAN STANDARD as follows: Operating voltage 3x400V +/-10% Mains frequency 50Hz (+/-2%) TN-system (5-wire) Notes: The price includes warranty services only within Germany. For new and demo machines, images may not necessarily represent the individual machine but rather comparable units. Bjdpew Aurysfx Af Hewn Depicted accessories such as clamping devices or tool holders are included only to the extent listed in the technical description. Please request a detailed ex works quotation. Visit our factory near Munich or one of our showrooms. We may also have similar machines available. Subject to prior sale.
