Axe & Status Tuscan LL550 X 6000 5-Bedway HD Lathe

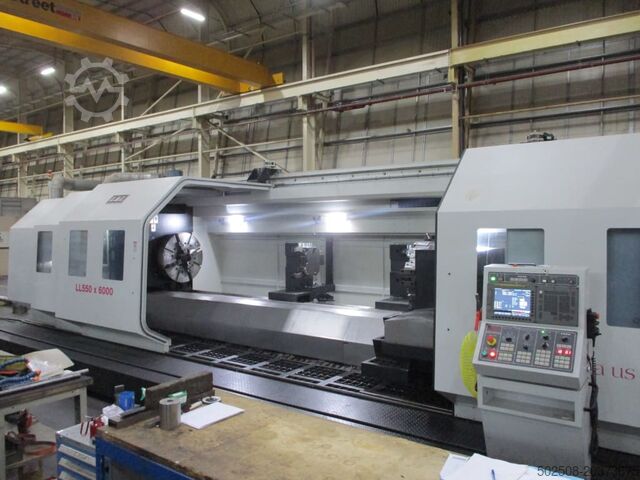

Axe & Status Tuscan LL550 X 6000 5-Bedway Heavy Duty Lathe With Fanuc Series 0i-TF Plus CNC Control (2024)

Ljdpfx Afsxq Egnjxjru
Running Time 314 Hours. Swing Over Bed Ø950mm. Centre Height Approx 575mm. Distance Between Centres Approx 6,000mm. Carriage Type Box (2 Box Way), Carriage Width Approx 955mm, Cross Slide Width Approx 450mm, Bed Width 990mm. Axis Travel 'X'=480mm, 'Z'=6,000mm. Feed Rate 'X'=0-3,000mm/min, 'Z'=0-3,000mm/min. (2) 'FCG-32C' Ø800mm x Ø320mm Through Bore 4-Jaw Manual Chucks (Front & Back of Spindle). (2) SMW Autoblok 'K4 ZSW' Programmable Steadies, Range Ø52mm - 280mm. Headstock Spindle Nose A2-20. Spindle Bore Ø305mm. Spindle 'X' Axis Servo Motor 3kW, 'Z' Axis Servo Motor 7kW. Spindle Speeds 7-400rpm (Motor 30/37kW), Morse Taper 6. V12-200 Hydraulic 12 Station Turret, 32mm Tool Size, Ø50mm Boring Bar Holder Dimension. Motorised Tailstock Body Movement, Quill Ø165mm, Quill Travel 250mm, MT 6. S/No LL393806057 (2024).

Electrical Specification AC220V/50Hz, 3 Phase. Automatic Doors & Full Cover Guard, Motorised Fondex Front & Rear Chip Conveyors, Auto Lubrication & 15-Bar Coolant System, Air Conditioned Electric Cabinet, Halogen Work Lights, Unimag DS-2030-30 Disc Type Oil Skimmer, Yong Teng E04-AL60 kVA Transformer, Plus: (2) Steel Cabinets: (1) 500mm x 500mm x 800mm With 6 Drawers & (1) 1,000mm x 700mm x 1,000mm With 6 Drawers, Full Range Of Machine Manuals, Ø800mm 4-Jaw Manual Chuck (Already Described In Original Detail) With Backing Plate & Spare Jaws, (11) Assorted C6 Capto Adaptors Including Boring Bar Holders, Tool Blocks & Facing Tool Holder,; Boring Bar Attachment (To Hold up to 150mm). Overall Dimensions Approx 8,470mm x 3,050mm x 2,370mm High; Weight Approx 20,500kg.
