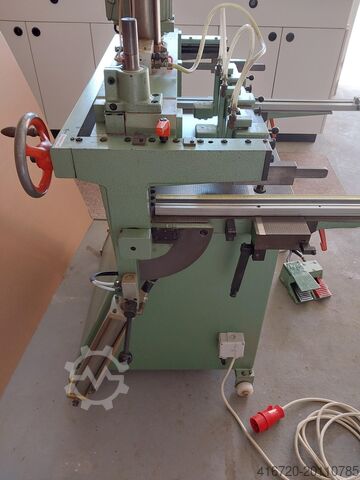

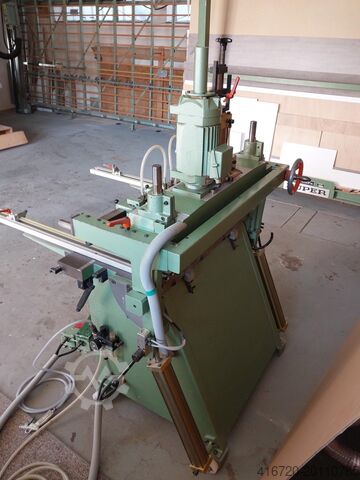

Dowel and line boring machineAyen
DB 1000-K23
Machine data
- Machine type:
- Dowel and line boring machine
- Manufacturer:
- Ayen
- Model:
- DB 1000-K23
- Machine number:
- 751 950
- Year of construction:
- 1980
- Condition:
- ready for operation (used)
- Functionality:
- fully functional
Price & Location
- Location:
- Neuler, Germany
Technical details
- Drilling depth:
- 45 mm
- Total width:
- 1,170 mm
- Total length:
- 750 mm
- Total height:
- 1,620 mm
- Type of input current:
- three-phase
- Overall weight:
- 350 kg
- Rotational speed (max.):
- 2,800 rpm
- Compressed air connection:
- 10 bar
- Input voltage:
- 380 V
- Workpiece height (max.):
- 110 mm
- Working width:
- 720 mm
- Number of spindles:
- 23
- Table width:
- 820 mm
- Table height:
- 772 mm
- Operating pressure:
- 6 bar
- Height adjustment type:
- mechanical
- Working height:
- 842 mm
- Table length:
- 430 mm
- Power:
- 2.2 kW (2.99 HP)
- Workpiece width (max.):
- 820 mm
Details about the offer
- Listing ID:
- A201-10785
- Update:
- 01.10.2025
Description
Also suitable for line boring, cup hinges, frame edges, and other fittings.
- Mobile (height adjustment +70 mm).
- Work table with integrated measuring scale.
Fedpfx Ajxg Drbjfpegh
- Pneumatically swiveling drilling beam, horizontal and vertical, also at 45° angles.
- Pneumatic foot control, 3 pneumatic clamping cylinders.

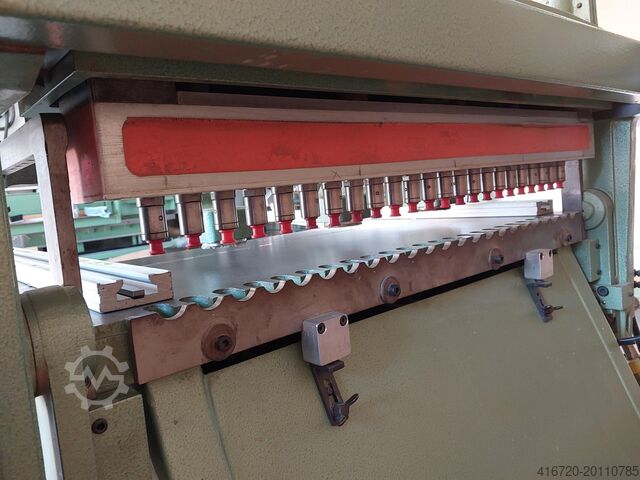

- Version with 23 spindles at a 32 mm pitch.
- All drilling spindles equipped with quick-change chucks.
- 2 stop guides, each 1040 mm, with one stop slider each.
- 2 inserts for frame dowelling.
- 3000 mm line boring guide rail with 2 stop sliders and 2 indexing sliders.
- Adjustment gauge for stop rails.
- Operating manual with machine card, clamping and pneumatic diagram, spare parts list, and all technical drawings.
- Approx. 50 drill bits (some of them new).
- Operating hours counter.
The listing was translated automatically. Translation errors are possible.
