Wide belt sander

Bütfering Classic 111 C

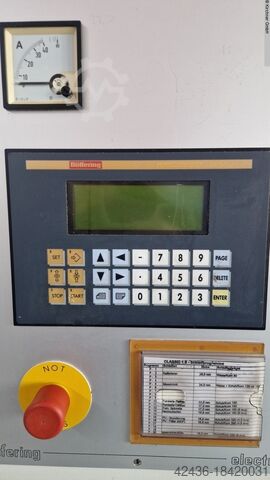

Condition: used, Year of construction: 2001, Year of manufacture: 2001 1 unit 1 combined contact roller/sanding pad unit, with sanding belt grit adjustment and calibration device Steel contact roller (profiled) Automatically adjusting contact roller Electronically controlled segmented pressure bar in a compact design, element width 50 mm Program-controlled adjustment of the sanding pressure of individual segments Unit drive with electronic, wear-free brake 3-pole switchable drive motor 3.7/7.5/15 kW (Sanding belt speeds 4.5/9/18 m/s) Working width 1100 mm Sanding belt width 1120 mm Sanding belt length 1900 mm Machine complete with rubberized pressure rollers Pneumatic sanding belt tensioning with integrated sanding belt edge alignment Ledpsi Eu Aqjfx Akyjrn Terminal with 50 freely programmable sanding programs for fully automated machine control Belt feed rate of 4 and 8 m/min Price: €14,900 plus VAT

Condition: like new (used), Working width 1350 mm Lrjdpfx Aksuuitgjyen The machine is in excellent, new condition as shown in the pictures.

Condition: used, Year of construction: 2008, machine/vehicle number: 0-411-49-1873, Technical data: - Manufacturer: Bütfering - Type: Optimat SGO 211/RC - Number of grinding units: 2 - Year of manufacture: 2008 - Working width: 1.100 mm - Grinding belt width: 1.120 mm - Grinding belt length: 1.900 mm Ljdpsyh Hwuefx Akyern - Workpiece thickness: 3-160 mm - Feed speed: 2,5-13 m/min. - Table height adjustment Standard equipment: - Automatic workpiece thickness adjustment - Stepless feed speed via requency converter. - 125 grinding programs can be stored - Wear-free braking system 1. Grinding unit (R) - Calibration roller - Profiled steel contact roller - Diameter 160 mm - Drive motor: 15 kW 2nd grinding unit (C) - Combination unit with roller and grinding shoe - Rubberized contact roller 65 Shore - Contact roller diameter 160 mm - Electronic link pressure bar with segment width 35 mm. - Belt speed: 12 and 21 m/s - Tolerance compensation up to 1 mm - Suitable for veneered surfaces and solid wood. - Drive motor: 11 kW - Total connected load: approx. 28 kW - Operating voltage: 400 V / 50 Hz. - Compressed air consumption at 6 bar, 20 L/min. - Belt blow-off device per pressure surge 440 L/min. - Extraction volume: approx. 2,880 m3/h/ at 20 m/s - Extraction connection: Dedusting: 1 x Ø 160 mm (grinding unit, roller) 1 x Ø 160 mm (grinding unit, shoe) Dimensions: - Length: 1,700 mm - Width: 1,850 mm - Height: 2,100 mm - Location: not in stock - Available from April 2026

Condition: excellent (used), Year of construction: 2008, Working width: 1100 mm Workpiece thickness: 3 – 160 mm Abrasive belt dimensions: 1,120 x 1,900 mm Variable feed speed: 2.6 - 13 m/min Feed motor output: 1.10 kW, 400 V, 50 Hz Extraction port diameter: 2 x 160 mm Compressed air supply: 6 bar Dimensions (L x W x H): 1705 x 1545 x 1905 mm 1st unit: Steel contact roller, diameter 160 mm Motor output: 15 kW, 400 V, 50 Hz 2nd unit: Combination unit with rubber-coated contact roller (Sh 65), rigid sanding shoe Motor output: 11 kW, 400 V, 50 Hz Abrasive belt cleaning via compressed air 3rd unit: Cleaning brush Multi-function display Lrsdpfx Aksychqzsyen Multi-function lever (conveyor belt, workpiece thickness adjustment) Electronic belt oscillation Pneumatic conveyor carpet oscillation Motorized workpiece thickness adjustment with LED display in 0.1 mm increments Units with emergency braking system Emergency stop button at infeed & outfeed Motor protection switch Roller table extension at infeed with 2 loose rollers Automatic star/delta start Complete documentation Note for used machines: • Specifications and prior sale subject to change. • Stated prices are ex works – loaded free of charge! • The machine has been cleaned and functionally tested. • All machines are sold as seen, without any warranty or guarantee. Buyers are welcome to inspect the machine on site. • Special agreements are only possible in written form. (We only respond to inquiries providing your address and telephone number!)

Condition: good (used), Year of construction: 1995, Multi-purpose surface sander, paint sander, modular unit, finishing unit, sanding unit, sanding station, belt sander -Max. sanding belt width: 1350 mm -Abrasive belt: oscillating -Drive: 11 kW -Speed: Frequency controlled -Sanding belt dimensions: 2620 x 1350 mm Ljdpfx Aksgnnbvjysrn -Max. workpiece clearance height: 140 mm -Sanding belt unit: height-adjustable (conveyor belt fixed height) -Machine dimensions: 2210/2320/H2310 mm -Machine weight: 4500 kg

Condition: used, Year of construction: 2002, Grinding width: 1350 mm Grinding belt width: 1370 mm Grinding belt length: 1900 mm Workpiece thickness: 3 - 150 mm Feed speed: 2.5 - 13 m/min (infinitely adjustable) Drives: Grinding unit: 15 kW Total connected load: 17 kW Weight: approx. 2400 kg Dimensions: 2000 x 1850 x 2100 mm Storage location: Nattheim Lredpfx Akjytrfkoyen
