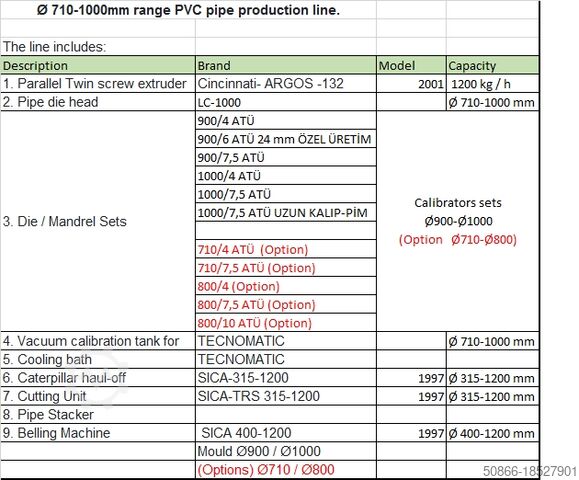

Extrusion Line

battenfeld-cincinnati ARGOS 132R-APC

Condition: new, Cylinder, packed in wooden box, cylinder with ceramic heaters for 90mm extruder grooved feed Hodoua Ti Ijpfx Ad Heff

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, Make Illig Model RV 74 Year 1999 Hours Approx TBC Delivery Date Immediately Stations Forming, Cutting and Stacking Maximum Forming Area 700 x 500 mm Minimum Forming Area 400 x 250 mm Depth of Draw Above-Below 120 / 40 mm Maximum Material Thickness 2.0 mm Maximum Cycle Rate 20 / min Hfsdpfjxp H Nuex Ad Hsf Total Weight 6,600 kg All details are subject to change and/or errors. All equipment is subject to availability and/or prior sale.

Condition: new, Year of construction: 2016, operating hours: 9 h, functionality: fully functional, BMCtouch Integrated Automation System The control system, constructed in modular design, includes the following components: - PLC in industrial-standard design for machine control - Industrial PC for visualization and data management - Swivel-type operating and display panel with 19" TFT touch screen Performance Features: - User interface and functionality as per previous BMCtouch systems - Temperature control with self-tuning function - Pre-heating and start-up program - Prepared for data transfer to haul-offs with BMCsmart control systems - Operation of haul-off and saw from extruder terminal - CANopen Interface DS420 V2.0 - Flexible process display with individually configurable summary pages and customizable background - Configurable alarm management and alarm history - Trend data acquisition and presentation - Order management/administration - Configurable access authorization - Online assistance - Suitable for independent multi-user operation - Additional memory for history trends - Network capability - Modem Integration of Central Air Supply Co-extruder, BCE 1-30-25D - Stand-alone machine - Synchronization with main extruder via CANopen, DSP 420 V2.0 - AC drive incl. gearbox - Nitrided screws - BMCeco operator terminal - Product of battenfeld-cincinnati China branch Extruder, solEX 75-40 i Designed for pipe extrusion Technical Data: - Screw diameter: 75 mm - Effective screw length: 40xD - Drive power: 300 kW - Barrel heating zones: 5 pcs. - Barrel cooling zones: 5 pcs. - Total installed power, max.: 347.37 kVA Die heating zone incl. thermocouple (6 kW, 230 V) (BMCtouch control) Extrusion Die, helix 500 VSI-TZ Designed for the extrusion of PO pipes - Two-step distributor consisting of smoothing thread and compact lattice basket - Base die and die set made of tempered steel - Material flow surfaces are polished - Pipe O.D.: 90 - 500 mm - Number of heating zones: 17 Co-extrusion ring for 4 color stripes Calibrating sleeve, type 6 For PO pipes vacStream 500-6 No. 1 Designed for calibrating and cooling of pipes - Closed stainless steel tank with welded feet - Tank on rollers with height and lateral adjustment - Rust-proof hinged lids - Central water inlet and outlet - Pipework made from rust-proof materials - Manual reversible flow filter unit with bypass - Mechanical vacuum control - Temperature display Technical Data: - Pipe diameter range: 90 - 500 mm - Number of solid taper nozzles: 162 pcs. - Number of spray rods: 6 pcs. - Max. vacuum: 0.7 bar - Length of vacuum chamber: 5500 mm - Total length: 5900 mm vacStream 500-6 No. 2 Designed for calibrating and cooling of pipes coolStream 500-6 4 For pipe cooling - Closed stainless steel tank - Base frame with height-adjustable feet - Rust-proof, hinged lid - Central water inlet and outlet - Pipework made from rust-proof materials - Manual reversible flow filter unit with bypass - Temperature display - Spray rods made of PVC - Solid taper nozzles with bayonet lock - Visual monitoring of pumps - Drip trays at inlet and outlet - Water circulation pump pullStream R_ 500-6 E Designed for pipe haul-off Hodpjx Sbc Refx Ad Hsff cutStream RTAplus 500 For chipless cutting of PO pipes

Condition: excellent (used), Year of construction: 2006, Manufacturer Gabler Model M92 L Hfodpsw Rpzqefx Ad Hof Year 2006 Condition Very Good Stock Number 00006 Max forming area 750 x 436 mm Depth of draw 150 mm Max material width 835 mm Max cycles / min 44 Max mould closing force 350 kN Max top heater output 81.90 kW Max bottom heater output 54.60 kW Operating air pressure 8 bar Power Supply 230V 50Hz Total Connected Load 138.66 kW Approx Dimensions 7,925 x 5,320 x 3900mm (LxWxH) Approx Weight 10,400 kg Notes All details are subject to change and/or errors. All equipment is subject to availability and/or prior sale.

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, Manufacturer Kiefel Model KMD 60B Year 2012 Hfodpfxox Ekcas Ad Hjf Condition Used Stock Number 00034 Approx hours 26000 Delivery date Immediately Stations Three Max tool dimensions TBC Maximum Mould Surface 580 x 440 mm Minimum Mould Surface 260 x 250 mm Depth of draw 120 mm +/- Max film width 630 mm Max dry cycles / min 70 Operating pressure 6 bar Approx Dimensions TBC Approx Weight 10,000 kg Notes All details are subject to change and/or errors.All equipment is subject to availability and/or prior sale.

Year of construction: 2004, condition: excellent (used), Twin-screw extruder Rollepaal T-REX 2-90-30 Hodpfxexcp T Ns Ad Hoff Application PVC PIPE The extruder is in very good condition and ready for operation. Location: Germany:D-26345 Bockhorn-Grabstede, Bahnhofstr 6 The extruder is my property
