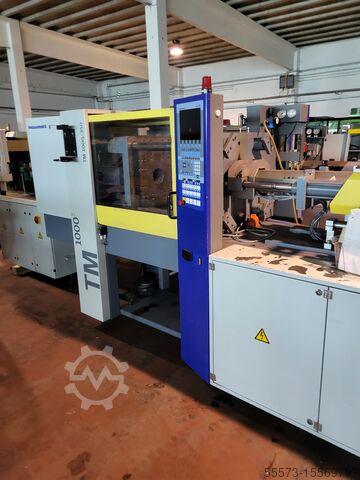

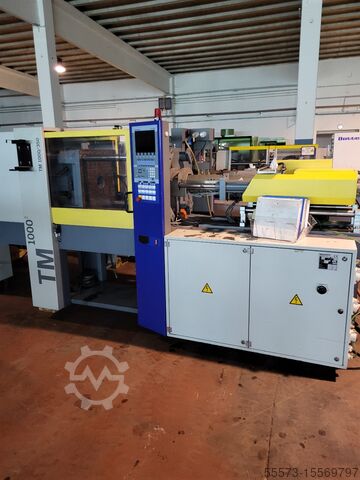

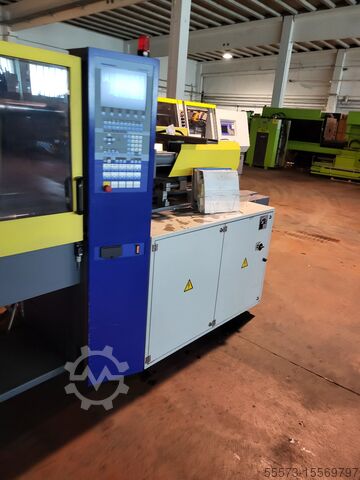

BA 1000TM

BATTENFELD

Condition: excellent (used), Year of construction: 2002, Battenfeld TM 4500/4500 B4 Year of manufacture: 2002 Clamping force: 450 tons Screw diameter: 85 mm Injection weight: 1870 g Tie bar distance: 80x80 cm Ppsdpfoxvihajx Anpju

Condition: excellent (used), Year of construction: 2003, Battenfeld 1300/350 Pjdpfx Ansd Sqrrepjpu Year of manufacture: 2003 Clamping force: 130 t Screw diameter: 40 mm Operating hours: 77,890 h Tie bar distance: 42 x 42 cm

Condition: excellent (used), Year of construction: 2003, Battenfeld 1300/350 Year of manufacture: 2003 Clamping force: 130 t Screw diameter: 40 mm Psdpfjxvihmex Anpspu Operating hours: 77,890 h Tie bar distance: 42 x 42 cm

Condition: excellent (used), Year of construction: 1997, Battenfeld BA 800/315 CDC Closing 80 tons Year 1997 Ppsdpfx Asr Nf R Ijnpeu Scrow 40 mm distance between tie bars 37x42

Year of construction: 1999, condition: used, The system is not just a simple recycling extruder; it is a complete plastic recycling line consisting of: * Heysohn PAR 108 agglomerator/compactor (1993) * Heysohn extruder with degassing * Material feed and metering * Discharge/conveying system * Documentation available * Multi-zone heating (at least 9 heating zones visible) * Vacuum degassing * 60 kW main drive * RAVIS 2 modular control system * Machine is evidently still fully assembled The control panel shows the following handwritten notes: * Extruder type: presumably PAR 108 * Diameter: 130 mm * Extruder output: approx. 345 kg/h * Motor power: 135 HP Pjdpfx Anozhl R Iepopu The system appears to have been used for processing film and plastic regrind into granules. Battenfeld BFX2-130-25V plastic extruder – year of manufacture 1999 For sale is a plastic extruder from Battenfeld Extrusionstechnik GmbH, type BFX2-130-25V, year of manufacture 1999. The system consists of an extruder, material feed with hopper, drive unit, and conveying system. The machine comes from an industrial plant and is in assembled condition. Manufacturer: Battenfeld Extrusionstechnik GmbH Type: BFX2-130-25V Year of manufacture: 1999 Operating voltage: 400 V / 50 Hz Weight: approx. 9,500 kg

Year of construction: 2006, condition: ready for operation (used), A complete Battenfeld compact extrusion line for the production of PVC profiles is available. 1) Twin-screw extruder Battenfeld MBEX 2-50-16 V, year of manufacture: 2006, output capacity: 15kg-60kg/h, screw diameter: 52mm, screw length: 16×D, barrel zones: 4, barrel cooling zones: 3, adapter zones: 1, die heating zones: 9, control system: BMCtouch. Including dry vacuum pump, pressure measuring points, clamping flange, water-air separator, blow-off device, mounting elements and hopper cover. 2) Calibration table Battenfeld KP 125 V 2/4m, mounting frame length: 4100mm, mounting rail width: 320mm, longitudinal adjustment: 500mm, transverse adjustment: +/-15mm. 3) Speck vacuum system, pumps: 2, motor power: 2×4kW, operating pressure: 200mbar, max. air capacity: 2×140m³/h. 4) Battenfeld RP 125 SE caterpillar haul-off, passage height: 100mm, contact length: 1100mm, pad width: 160mm, haul-off speed: 15m/min, max. haul-off force: 7kN. 5) Battenfeld SP 63 E underfloor saw, max. cross-section capacity X/Y: 200mm/300mm, sawing accuracy: +/-0.5mm. Overall line dimensions X/Y/Z: approx. 12000mm/1200mm/2000mm, weight: approx. 4500kg, operating hours: approx. 319h. Including chip extraction. The line touchscreen is defective (nothing is visible), however, the line can be operated using an external monitor, mouse and keyboard. Documentation available. An on-site inspection is possible. Ppjdpfszg Iqhex Anpou

Condition: good (used), Year of construction: 2005, Ref. no.: 16369 Manufacturer: BATTENFELD Type: EM 75-120 Unilog B4 All-electric Year of construction: 2005 Ppsdpfjwl Rucex Anpeu Clamping unit Clamping force: 75 ton Opening stroke: 800 mm Distance between tie bars: 405 x 405 mm Mould height min.: 150 mm Mould height max.: 480 mm Injection unit Screw diameter: 18 mm Injection volume: 30 cm³ Shot weight: 27 g Injection pressure: 2440 bar Measurements and weight Dimensions: 4,5 x 1,7 x 2,0 m Machine weight: 4500 kg Further information: BATTENFELD EM 75/120 UNILOG B4 All-Electric Precision Injection Moulding Machine The BATTENFELD EM 75/120 UNILOG B4 is a high-quality Austrian-made all-electric injection moulding machine. The BATTENFELD EM series was considered one of the most advanced servo-electric machine concepts of its time and was specifically designed for energy-efficient and highly precise production processes. All major machine movements are driven by modern servo motors, providing: * very low energy consumption * high repeatability and precision * smooth and quiet machine operation * low maintenance requirements * stable and accurate production performance The machine is especially suitable for: * technical plastic components * electronic parts * precision moulded products * small and medium-sized production runs Compared to conventional hydraulic machines, the all-electric technology offers significantly improved energy efficiency and process stability. Equipped with the reliable BATTENFELD UNILOG B4 control system, the machine provides: * user-friendly operation * precise process control * stable cycle times * accurate servo axis management The machine has approximately 69,094 operating hours and appears to be in clean and well-maintained condition. The photos clearly show: * a clean electrical cabinet * well-maintained mechanical components * properly kept servo-electric units * a clean injection unit The BATTENFELD EM 75/120 UNILOG B4 is a reliable and energy-efficient solution for demanding plastic injection moulding applications.

Condition: used, Year of construction: 2001, operating hours: 60,790 h, clamping force: 60 kN, displacement volume: 224 cm³, injection pressure: 2,224 bar, overall weight: 3,350 kg, screw conveyor diameter: 18 mm, Min. mold height 15mm_Max. platen distance 575 + mm Payment: 100% prior to delivery Manufacturer: Battenfeld Type: BA600-50CDC Condition: überarbeitet Operating hours: 60.790 CLAMPING UNIT: - Clamping force: 60 t Öffnungsweg: 425 mm Mould installation height min.: 350 mm Mould installation height max.: - Tie bar distance (h x v): 320 x 320 mm Plate dimension (h x v): 490 x 490 mm Centering (fix- movingplate): 125 / 125 mm INJECTION UNIT: IU50 Screw diameter: 18 mm Injection weight in polystyrol: 20,4 g Stroke volume: 22,4 cm³ Pjdeh Tk Rvopfx Anpepu Einspritzdruck: 2.224 bar CONTROL: Unilog 4B Screen language: DE Operating manuel: DE EQUIPMENT: - Core pulls: ! Air valves: - Hot runner control devices: - Robot interface: Euromap 12 GENERAL DATA: - Installed heating capacity: 3,6 kW Pump drive power: 11,0 kW Total installed power: Motor + Heizung Total weight: 3.350 kg Total size L x B x H: 4,0 x 1,5 x 2,1 m

Condition: used, Year of construction: 2003, operating hours: 67,092 h, functionality: fully functional, clamping force: 10,000 kN, screw diameter: 120 mm, displacement volume: 5,655 cm³, injection pressure: 1,632 bar, total length: 11,600 mm, total width: 2,900 mm, total height: 2,500 mm, overall weight: 76,500 kg, clamping force: 10000 kN distance between tie-bars h x v: 1120 x 1400 mm size of mould plates h x v: 1960 x 1690 mm min. mould height: 550 mm max. mould height: 1020 mm max. open daylight: 2120 mm opening stroke: 1100 mm screw diameter: 120 mm swept volume: 5655 ccm injection pressure: 1632 bar equipment included screen text german complact flash drive core pulling hydraulically 4x Anti vibration mounts electric interface for handling units according to Euromap 12 interface for temperature control units Pedpfxjzgt Rys Anpjpu increased oil cooler mould heating 16x measures of machine l x w x h: 11.6m x 2.9m x 2.5m total weight: 76500KG

Condition: good (used), Year of construction: 2008, operating hours: 26,033 h, functionality: fully functional, clamping force: 4,000 kN, screw diameter: 75 mm, displacement volume: 1,657 cm³, injection pressure: 2,022 bar, total length: 7,200 mm, total width: 1,750 mm, total height: 2,420 mm, overall weight: 16,400 kg, clamping force: 4000 kN distance between tie-bars h x v: 710 x 710 mm size of mould plates h x v: 1010 x 1010 mm min. mould height: 300 mm max. mould height: 710 mm max. open daylight: 1380 mm opening stroke: 670 mm screw diameter: 75 mm swept volume: 1657 ccm injection pressure: 2022 bar measures of machine l x w x h: 7.2m x 1.75m x 2.42m Pjdpfx Ajzgt I Sjnpopu total weight: 16400KG
